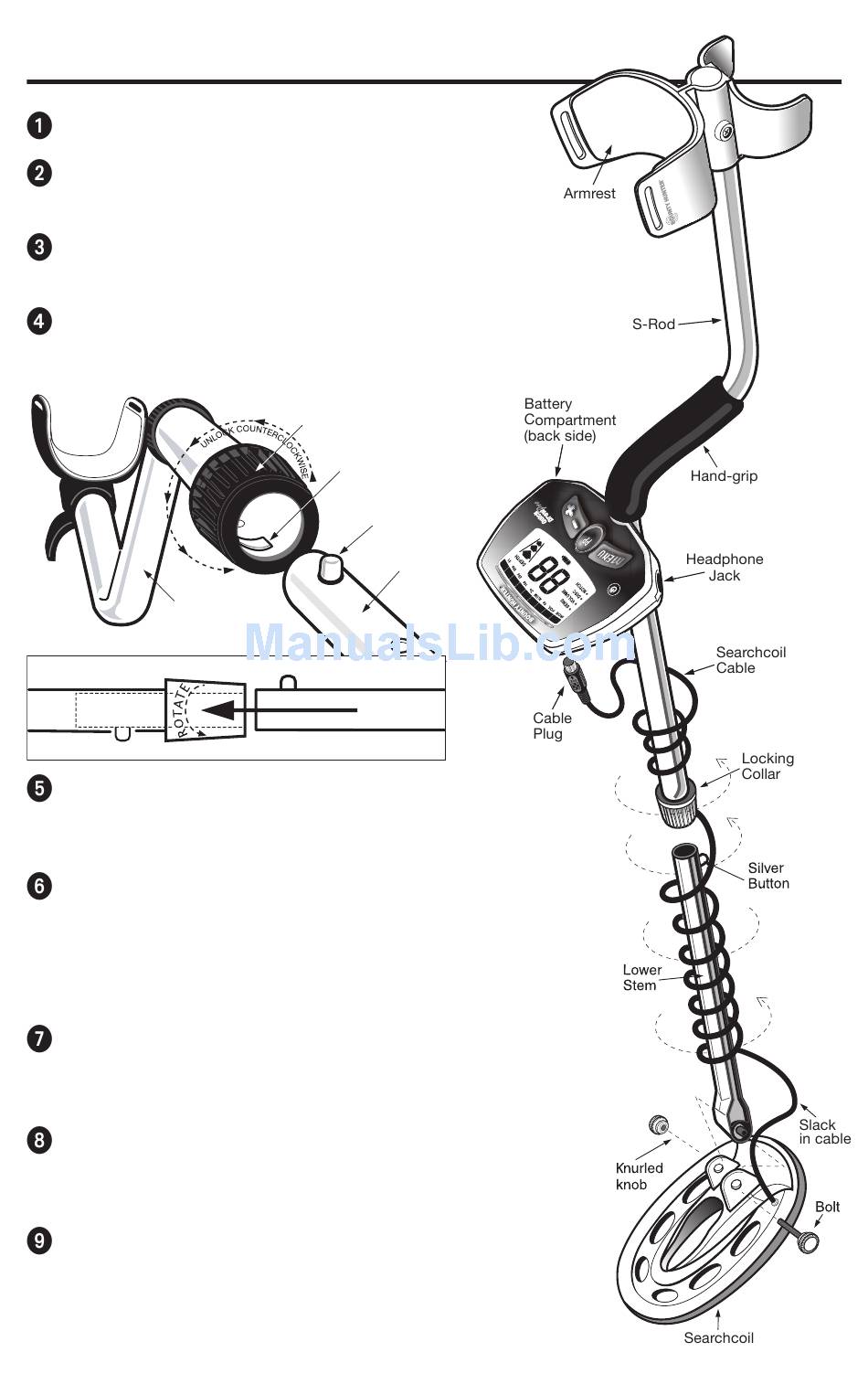

ASSEMBLING THE DETECTOR

Hold S-ROD upright.
Loosen LOCKING COLLAR on S-ROD;
rotate counterclockwise.
Insert LOWER STEM into S-ROD with the
SILVER BUTTON pointed upward.
Rotate the LOWER STEM until the
SILVER BUTTON locates and clicks into
a hole.
S-ROD
S-ROD
Attach the SEARCHCOIL to the LOWER
STEM using the BOLT and KNURLED
KNOB.
Adjust the LOWER STEM to a length that
lets you maintain a comfortable upright
posture while holding the detector relaxed
at your side with the SEARCHCOIL
parallel to the ground in front of you.
Wind the CABLE around the STEM.
Leave slack in the cable at the bottom to
allow the searchcoil to pivot.
Align the pins on the CABLE PLUG to the
connector holes on the rear of the control
housing.
Push in CABLE PLUG.
µ Twist the LOCKING COLLAR fully in the
clockwise direction until stems are locked
securely together.
LOCKING
COLLAR
INTERNAL
CAM LOCK
SILVER BUTTON
LOWER
STEM
LOWER STEM
5
