KitchenAid KSSC42FTS00 Parts List

KitchenAid KSSC42FTS00 Parts List

Stainless steel 42" built in refrigerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CABINET PARTS
42" BUILT IN
REFRIGERATOR
For Model: KSSC42FTS00
(Stainless Steel)
10−07 Litho In U.S.A. (dmm)
Part No. W10135014 Rev. B
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSC42FTS00 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSC42FTS00

Summary of Contents for KitchenAid KSSC42FTS00

  • Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Model: KSSC42FTS00 (Stainless Steel) 10−07 Litho In U.S.A. (dmm) Part No. W10135014 Rev. B...

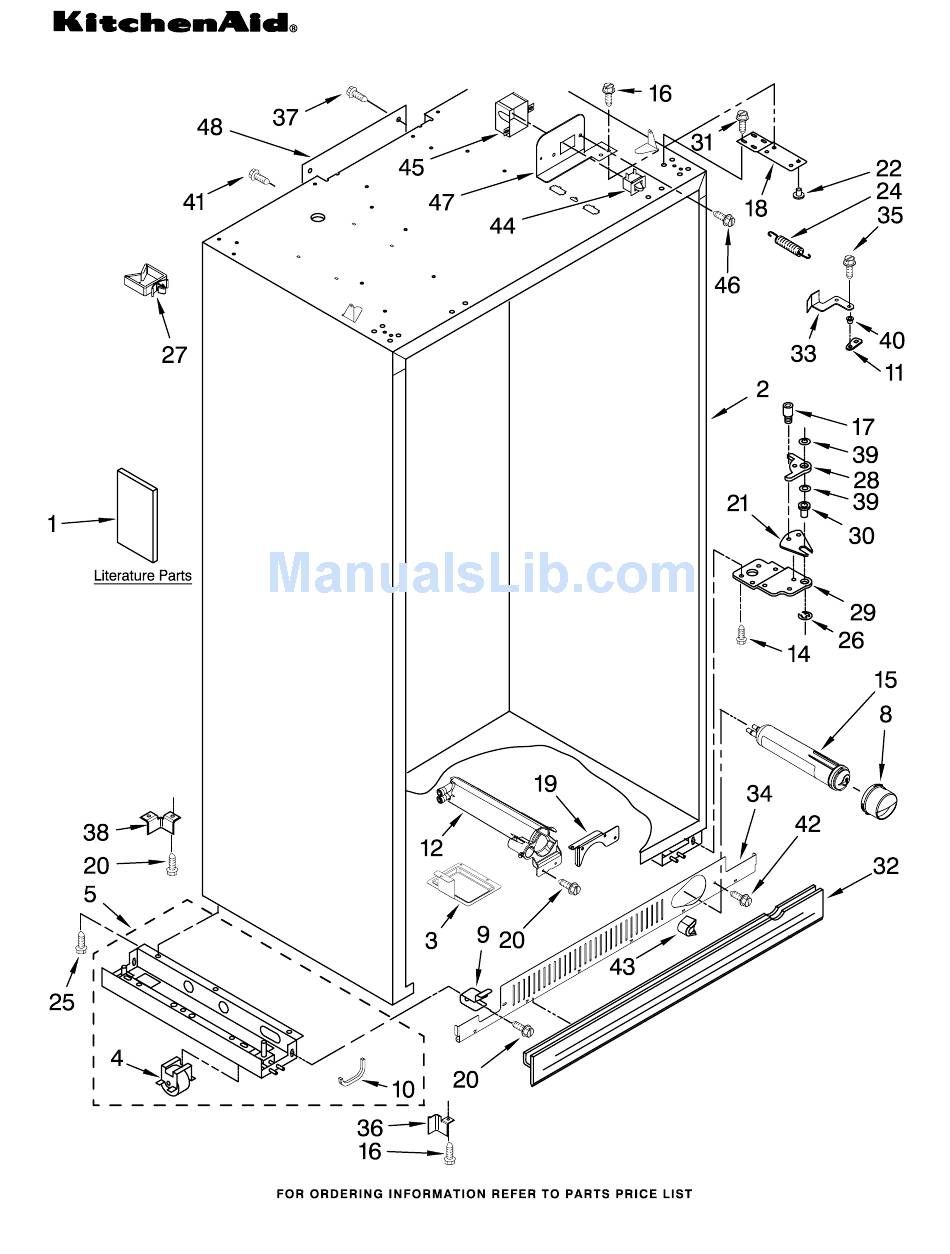

  • Page 2: Cabinet Parts

    2318193 Freezer Side Cap, Water Filter 2260518B Black 2307640 Mounting Stud, Grille 2307584 Grommet, Crossover Tube 2005783 Cam, Door Closer CABINET PARTS For Model: KSSC42FTS00 (Stainless Steel) Illus. Part DESCRIPTION 2260526 Housing, Water Filter 3400525 Screw 4396841 Filter, Water 489399 Screw...
  • Page 3 W10135014 CABINET TRIM PARTS For Model: KSSC42FTS00 (Stainless Steel) Illus. Part DESCRIPTION 1 W10132472 Cabinet, Trim (Right Side) 1163283 Screw 2316687 Cabinet, Trim (Bottom) 486194 Screw 2314017 Cabinet, Trim Top 7 W10132541 Cabinet Trim (Left Side) 8 W1012451 Nutsert (4) 2005925 Seal−Trim, Side...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Model: KSSC42FTS00 (Stainless Steel) Illus. Part DESCRIPTION 2302868 Wire, Shelf (2) 2302871 Cover, Shelf 2302883 Shelf, Fixed (2) 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266934 Door, Ice...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSC42FTS00 (Stainless Steel) W10135014...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSC42FTS00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Air Baffle...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS W10135014 For Model: KSSC42FTS00 (Stainless Steel) Illus. Part DESCRIPTION 2307586 Control Box Assy 2310164 Wire, Jumper 2307592 Bracket, Control Box 2307595 Shield, Light 487539 Screw 2317000 Clip, Control Box 2306086 Display Board, Ingredient Care Center 2223857 Socket, Light...
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSC42FTS00 Illus. Part 2316737S Panel, Decorative 2320502 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly 2317923S Nameplate 489348 Clamp 489399 Screw (5) 2004333 Nut...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSC42FTS00 (Stainless Steel) W10135014...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: KSSC42FTS00 (Stainless Steel) Illus. Part DESCRIPTION 2222592 Shelf Assy (4) 2256250 Trim, Glass Side Meat Pan 2179404 Rack, Wine 2302842 Meat Pan Cover Assembly 2302835 Crisper Cover Assembly 2257582 Trim, Glass Rear 2252412 Crisper Pan (2)
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC42FTS00 (Stainless Steel) W10135014...
  • Page 12 2223857 Socket, Light (2) 488937 Clamp, Nylon 2326255 Light Bulb 2302925 Bracket, Vent Tube 2182120 Scroll, Fan 2259465 Wedge, Air Duct 2266801 Deflector, Air 2307777 Air Duct For Model: KSSC42FTS00 (Stainless Steel) Illus. Part DESCRIPTION 2302932 Tube, Vent Block, Fan Scroll 2209480 Right...

  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSC42FTS00 (Stainless Steel) W10135014...
  • Page 14 REFRIGERATOR DOOR PARTS For Model: KSSC42FTS00 (Stainless Steel) Illus. Part DESCRIPTION 2252330 Refrigerator Door (Includes #9) 2258951 Brace, Door Corner 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gasket, Utility...

  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSC42FTS00 (Stainless Steel) W10135014...
  • Page 16 FREEZER DOOR PARTS For Model: KSSC42FTS00 (Stainless Steel) Illus. Part DESCRIPTION 2252327 Freezer Door (Includes #14) 2306398 Plate, Door−Handle 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222814 Door Gasket, Magnetic 2316868 Handle, Door 2309056 Spacer, Door−Skin...
  • Page 17 UPPER UNIT PARTS For Model: KSSC42FTS00 (Stainless Steel) W10135014...
  • Page 18 11 W10121049 Control Board 2203075 Spacer (5) 2256328 Bracket, Inverter 2317031 Bracket, Vibration Condenser 1157158 Screw 2307998 Condenser 2309431 Grommet (4) UPPER UNIT PARTS For Model: KSSC42FTS00 (Stainless Steel) Illus. Part DESCRIPTION 2317030 Arm, Vibration Condenser 487522 Screw 2155774 Wire Tie...
  • Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSC42FTS00 (Stainless Steel) W10135014...
  • Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSC42FTS00 (Stainless Steel) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assembly 2316683 Cover, Wiring 2316684 Cover, Box 8 W10121371 Tube, Discharge 2306093 Evaporator...

  • Page 21: Icemaker Parts

    ICEMAKER PARTS For Model: KSSC42FTS00 (Stainless Steel) W10135014...
  • Page 22 489115 Fastener, Snap−In 2221070 Clamp, Tube 2310108 Jumper, Fill Tube Heater 2320559 Support, Valve 2305274 Clamp, Nylon Valve ICEMAKER PARTS For Model: KSSC42FTS00 (Stainless Steel) Illus. Part DESCRIPTION 488937 Clamp Tube 2221240 Heater, Fill Tube 2221232 Cover 2313990 Shut Off Arm 20 W10122527 Mold &...
