KitchenAid KSSC42FKB02 Parts List

KitchenAid KSSC42FKB02 Parts List

42" built in refrigerator
Hide thumbs Also See for KSSC42FKB02:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
CABINET PARTS
42" BUILT IN
REFRIGERATOR
For Models: KSSC42FKB02, KSSC42FKS02
(Black)
(Stainless Steel)
5−03 Litho In U.S.A. (ebk)
Part No. 8198456
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSC42FKB02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSSC42FKB02

Summary of Contents for KitchenAid KSSC42FKB02

  • Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) 5−03 Litho In U.S.A. (ebk) Part No. 8198456...

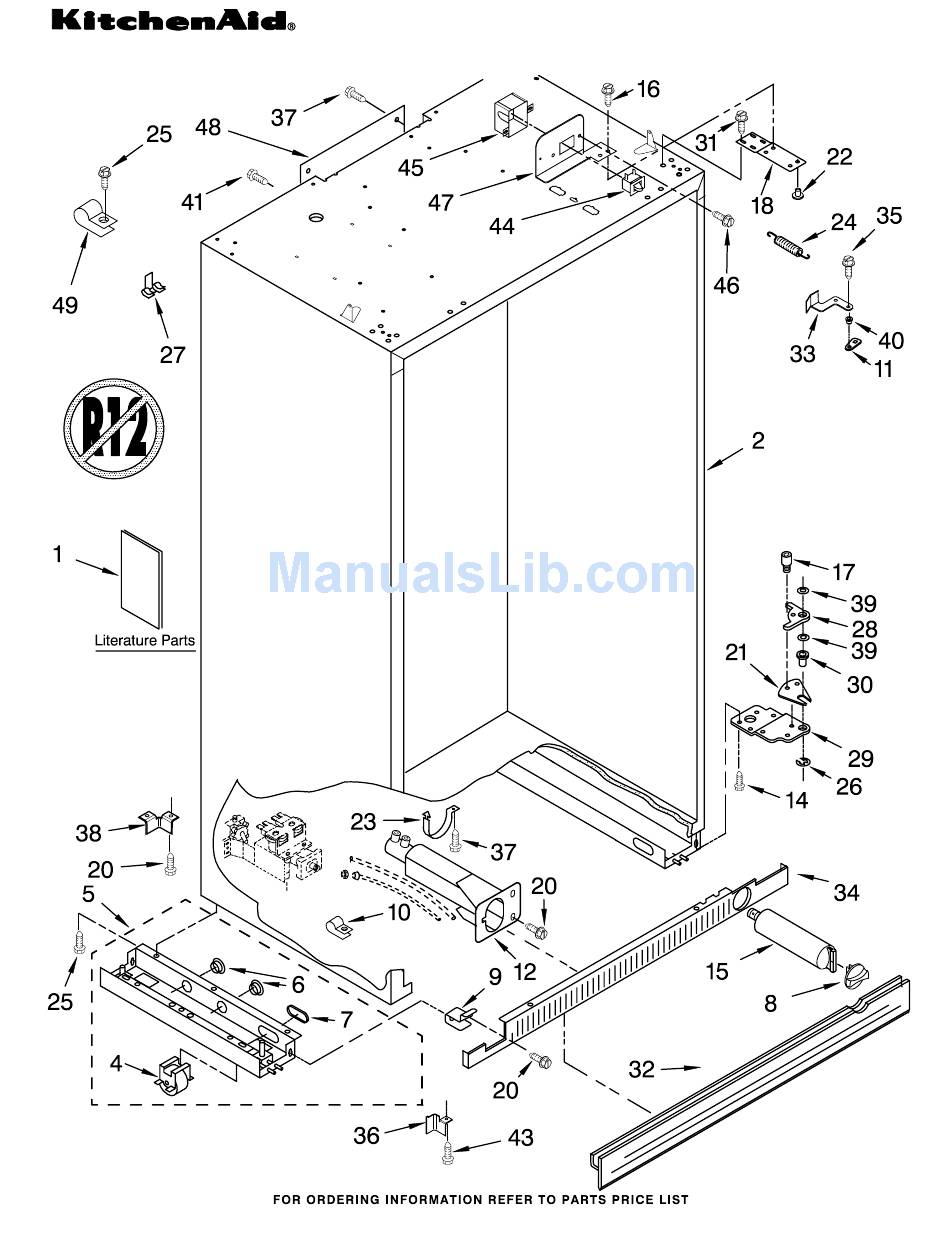

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2209428B Grille Bottom, Literature Parts 2203221 Filter, Water Front LIT2254714 Use & Care Guide 489399 Screw 2005921 Screw LIT2221225 Energy Label 2005378 Screw, Door Stop Bracket, Support LIT2254722 Service &...
  • Page 3 CABINET TRIM PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2215919S Stainless Steel 2215919B Black Screw 8281250 Stainless Steel 8281252 Black 2254725 Cabinet, Trim (Bottom) 486194 Screw 2003646 Cabinet, Trim Top Cabinet Trim (Left Side) 2215936S Stainless Steel 2215936B Black...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2220890 Solid Shelf 2220847 Front, Ice Compartment 1113637 Shelf, Fixed (2) 1113565 Shelf, Deep 2208194 Basket 2220844 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side 486194 Screw 2003046 Hole Plug, Front 2003047 Hole Plug, Rear...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) 8198456...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2221211 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 486194 Screw 1112257 Hole Plug 2220888 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2215716 Control Box 2215670 Insert, Control 2209159 Circuit Board, Housing Control 2187424 Control Box Wire Harness 2003841 Retainer, Knob 2221121 Support, Control Bracket 489006 Screw 2162085 Socket, Light (2) 2160708 Light Bulb (2) 486194 Screw 2221066 Overlay...
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) Illus. Part DESCRIPTION Panel, Decorator 2215953S Stainless steel 2215953B Black 2209490 Cover, Unit 487415 Screw 2215830 Back Panel 2209492 Guard, Wiring 2005292 Nameplate 8201530 Baffle−Air, Condenser 2004333 Nut 2254759 Bracket, Louver Grille, Louver 2215934S Stainless steel...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) 8198456...
  • Page 10 REFRIGERATOR SHELF PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2174403 Frame, Shelf 2003376 Glass, Shelf 1113547 Reflector, Shelf 1113791 Gasket, Glass (2) 2179404 Rack, Wine 2221071 Egg Bin 2006524 Frame, Assembly Meat Pan 1113894 Cover, Crisper 2003379 Glass, Crisper (Includes #9) 2000742 Meat Pan,...
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) 8198456...
  • Page 12 FREEZER LINER AND AIR FLOW PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2208939 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 2155590 Retainer, Fan Motor 2155789 Gasket, Cover 2208968 Grommet 486194 Screw 2003925 Deflector, Air Duct 488500 Screw, Ground 2162085 Socket, Light (2) 2221070 Clamp, Nylon...

  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) 8198456...
  • Page 14 REFRIGERATOR DOOR PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2259181 Refrigerator Door Panel (Includes Insulation) 2209202 Plate, Door Handle 2256388 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2256389 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112541 Gasket Retainer, Top &...

  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) 8198456...
  • Page 16 FREEZER DOOR PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2259163 Freezer Door Panel (Includes Insulation) Skin, Door 2209100B Black 2006775 Stainless Steel 2256390 Hinge, Bottom 489282 Screw 2256388 Hinge, Top 2256381 Spacer−Door, 2209202 Plate, Door Handle 2258951 Brace, Door−Corner 1112533 Gasket Retainer, Side (2)
  • Page 17 UPPER UNIT PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) 8198456...
  • Page 18 UPPER UNIT PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 943447 Grommet (4) 2209324 Inverter Box 2187422 Jumper, Wire 489373 Screw, Compressor Following Parts Not Illustrated 487522 Screw Mounting (4) and Optional Parts Not Included 857547 Wire Tie (2) 2208937 Compressor 2199167 Drier...
  • Page 19 LOWER UNIT AND TUBE PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) 8198456...
  • Page 20 LOWER UNIT AND TUBE PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2196155 Defrost Bi−Metal 2209119 Wire Harness 486194 Screw 2215508 Bracket 2209067 Side Support 2209035 Suction Tube 2257363 Tube, Transition 2209454 Tube, Connect (Drier) 2209451 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2209036 Tube, Discharge...

  • Page 21: Icemaker Parts

    ICEMAKER PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) 8198456...
  • Page 22 ICEMAKER PARTS For Models: KSSC42FKB02, KSSC42FKS02 (Black) (Stainless Steel) Illus. Part DESCRIPTION 2221240 Heater, Fill Tube 2221231 Heat Shield 628379 Clip, Fuse 2214613 Tube, Filter Inlet 2221140 Water Inlet Tube Assembly 1106508 Seal Gasket 2254800 Tube, Filter Outlet 2254709 Valve, Solenoid 489115 Fastener, Snap−In 2254711 Water Valve, Harness...
