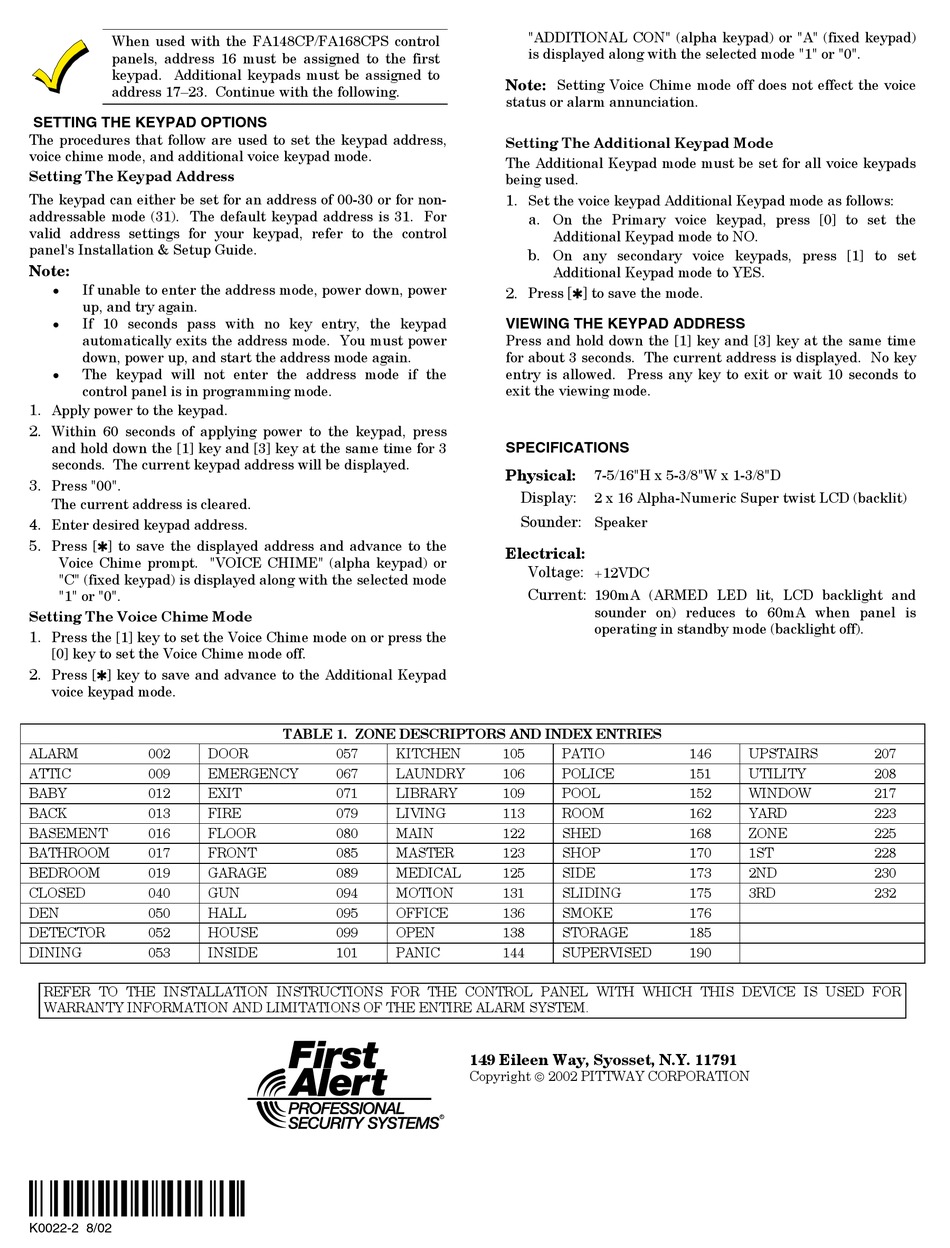

When used with the FA148CP/FA168CPS control
panels, address 16 must be assigned to the first
keypad. Additional keypads must be assigned to
address 17–23. Continue with the following.
SETTING THE KEYPAD OPTIONS
The procedures that follow are used to set the keypad address,
voice chime mode, and additional voice keypad mode.
Setting The Keypad Address
The keypad can either be set for an address of 00-30 or for non-
addressable mode (31). The default keypad address is 31. For
valid address settings for your keypad, refer to the control
panel's Installation & Setup Guide.
Note:
•
If unable to enter the address mode, power down, power
up, and try again.
•
If 10 seconds pass with no key entry, the keypad
automatically exits the address mode. You must power
down, power up, and start the address mode again.
•
The keypad will not enter the address mode if the
control panel is in programming mode.
1.
Apply power to the keypad.
2.
Within 60 seconds of applying power to the keypad, press
and hold down the [1] key and [3] key at the same time for 3
seconds. The current keypad address will be displayed.
3.
Press "00".
The current address is cleared.
4. Enter desired keypad address.
5. Press [✱] to save the displayed address and advance to the
Voice Chime prompt. "VOICE CHIME" (alpha keypad) or
"C" (fixed keypad) is displayed along with the selected mode
"1" or "0".
Setting The Voice Chime Mode
1. Press the [1] key to set the Voice Chime mode on or press the
[0] key to set the Voice Chime mode off.
2.
Press [✱] key to save and advance to the Additional Keypad
voice keypad mode.
ALARM 002
ATTIC 009
BABY 012
BACK 013
BASEMENT 016
BATHROOM 017
BEDROOM 019
CLOSED 040
DEN 050
DETECTOR 052
DINING 053
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE CONTROL PANEL WITH WHICH THIS DEVICE IS USED FOR
WARRANTY INFORMATION AND LIMITATIONS OF THE ENTIRE ALARM SYSTEM.
¬.Ql
K0022-2 8/02
TABLE 1. ZONE DESCRIPTORS AND INDEX ENTRIES
DOOR 057
EMERGENCY 067
EXIT 071
FIRE 079
FLOOR 080
FRONT 085
GARAGE 089
GUN 094
HALL 095
HOUSE 099
INSIDE 101
"ADDITIONAL CON" (alpha keypad) or "A" (fixed keypad)
is displayed along with the selected mode "1" or "0".
Note: Setting Voice Chime mode off does not effect the voice
status or alarm annunciation.
Setting The Additional Keypad Mode
The Additional Keypad mode must be set for all voice keypads
being used.
1. Set the voice keypad Additional Keypad mode as follows:
a.
On the Primary voice keypad, press [0] to set the
Additional Keypad mode to NO.
b.
On any secondary voice keypads, press [1] to set
Additional Keypad mode to YES.
✱
2. Press [
VIEWING THE KEYPAD ADDRESS
Press and hold down the [1] key and [3] key at the same time
for about 3 seconds. The current address is displayed. No key
entry is allowed. Press any key to exit or wait 10 seconds to
exit the viewing mode.
SPECIFICATIONS
Physical:
Display:
Sounder:
Electrical:
Voltage:
Current:
KITCHEN 105 PATIO
LAUNDRY 106 POLICE
LIBRARY 109 POOL
LIVING 113 ROOM
MAIN 122 SHED
MASTER 123 SHOP
MEDICAL 125 SIDE
MOTION 131 SLIDING
OFFICE 136 SMOKE
OPEN 138 STORAGE
PANIC 144 SUPERVISED
149 Eileen Way, Syosset, N.Y. 11791
Copyright  2002 PITTWAY CORPORATION
R
] to save the mode.
7-5/16"H x 5-3/8"W x 1-3/8"D
2 x 16 Alpha-Numeric Super twist LCD (backlit)
Speaker
+12VDC
190mA (ARMED LED lit, LCD backlight and
sounder on) reduces to 60mA when panel is
operating in standby mode (backlight off).
146 UPSTAIRS
151 UTILITY
152 WINDOW
162 YARD
168 ZONE
170 1ST
173 2ND
175 3RD
176
185
190
207
208
217
223
225
228
230
232
