GENERAL INFORMATION
The Guardian Protection Services FA6150RF-GP Keypad/Transceiver is a combination unit incorporating a normally-open relay
output and the functions of:
• FA6150KP-GP Fixed Addressable Keypad
• 5881M RF Receiver
• 5800TM Transmitter Module
The FA6150RF-GP Keypad/Transceiver may be used on any control panel that supports the FA6150KP-GP Keypad.
Wireless Features
The FA6150RF-GP supports the following:
• 5828/5828V wireless keypads.
• Up to eight wireless keys locally (programmed directly into
FA6150RF-GP) without occupying any zones supported by the
control panel.
• Button-type transmitters (e.g., 5804, 5804BD) for local operation.
• A maximum of 16 transmitters programmed into any 5800
Series-supported control panel.
•
Wireless keys with high-security (e.g., 5804E).
U U U U L L L L The 5802, 5802MN, 5802MN2, 5804, 5804BD, 5804BDV, 5804E, 5814, 5816TEMP, 5819, 5819WHS, 5828/5828V and 5850 transmitters are not
intended for UL installations.
Programming Features
• Auto Enroll mode for programming wireless keys.
• Provides a method for deleting a serial number and re-enrolling a new one in its place.
• Provides default settings for the wireless key functions.
Additional Features
• Operates the on-board relay in conjunction with the receiver (e.g., to trip a garage door opener).
U U U U L L L L
This feature is not intended for UL installations.
• Activates relays programmed into the control panel.
• Provides an End User mode to enable/disable local wireless keys (e.g., if a user accidentally loses a wireless key). Refer to the
FA6150RF-GP User Guide for this procedure.
INSTALLING THE FA6150RF-GP
Locate the FA6150RF-GP in an area and at a height where
it is convenient for user operation. The FA6150RF-GP must
be at least 10 feet from the control panel to ensure proper
operation of the RF receiver. Perform the following steps to
install the FA6150RF-GP.
1. Push the two case release snaps at the bottom of the
keypad with the blade of a medium screwdriver (this will
push in the release snap), then pull that side of the case
back away. Insert the screwdriver in the side of the
keypad (between the front and back case) and gently
twist to release the side locking tab. Repeat for the other
side. Refer to Figure 1 for location of the case back
release snaps and locking tabs.
2. Route the wiring from the control panel through the
opening in the case back. (See the control panel's
instructions for proper wire run lengths.)
3. Mount the case back directly to a wall or electrical gang
box.
4. Connect the power and data wires from the control panel
to the terminals on the FA6150RF-GP as indicated in
the wiring table adjacent to Figure 2.
INSTALLATION AND SETUP GUIDE
Keypad/Transceiver Keypad/Transceiver
Keypad/Transceiver Keypad/Transceiver
• RF jam detection when the receiver is enabled.
• Low-battery indications for the local wireless keys.
• A nominal range of 200' for the RF transmitters (some
transmitters have a shorter range).
• Wireless keys for control panels that do not support RF
themselves (such as FA110C).
• Sends status signals (Armed, Ready, etc.) to bi-directional
units such as 5804BDV and 5828/5828V.
5. Connect the wires for the relay output (if used) to the
terminals on the FA6150RF-GP's PC board.
6. Reattach the keypad to its case back.
Note: Upon power-up or exit of the Program Mode, the FA6150RF-
GP alternately flashes "Ad" and the 2-digit keypad address
and the 2-digit receiver address on the display. Press any key
to display the system status.
ARMED
READY
NOTE:
TO REMOVE CASE BACK
PUSH IN THE TWO MOUNTING
SNAPS LOCATED ALONG THE
BOTTOM OF THE KEYPAD
AND LIFT UP.
RETAINING
SNAPS

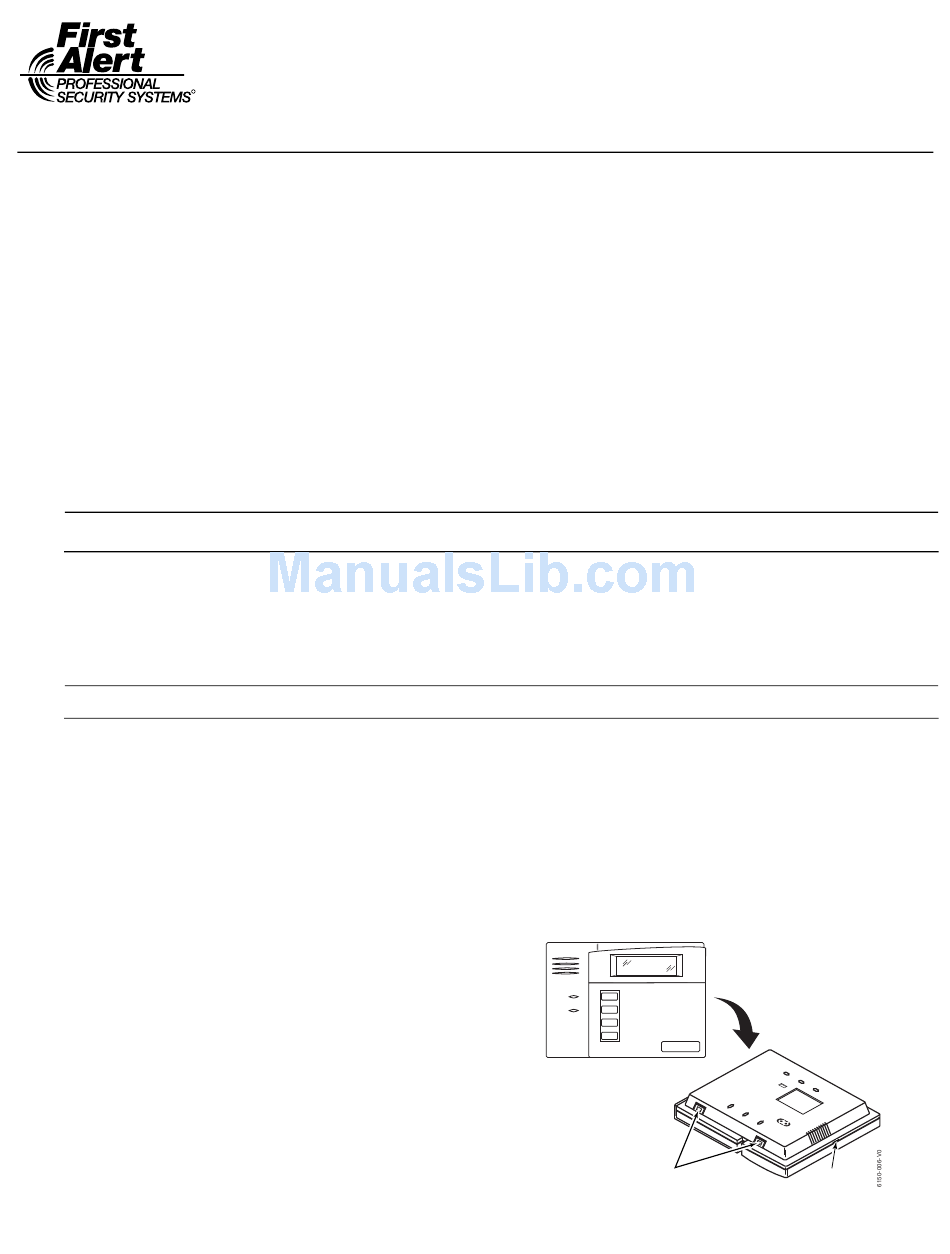

Figure 1 – Removing the FA6150RF-GP Case Back
K4460-GPV1 4/06 Rev A
FA6150RF- - - - GP FA6150RF FA6150RF FA6150RF GP GP GP
LOCKING
TAB
