First Alert FA570RF User Manual

KEYPAD DISPLAYS AND LEDS
The FA570RF has the following features:
• Large, 2-line, 32-character alpha-numeric LCD display.
Display backlighting turns on after any key press and
automatically times out after approximately 30 seconds
without a key press. Time out time is dependent on the
setting of the control panel.
• 12 Function Keys located behind a decorative door that
swings down to provide access plus four Special Function
Keys (A, B, C, D) are continuously backlit.
• System numerals, imprinted in large type on the keys for
easy identification. System functions appear below the keys
on the keypad.
The following table shows the LEDs and their functions:
LED
ARMED Lights when the system is armed in any
mode.
(Red)
READY Lights when the system is ready to be
armed (no zone faults are present).
(Green)
FUNCTION KEYS AND LABELS
The function keys are continuously backlit for ease of use.
(Check the User's Guide that accompanies the control panel for
detailed instructions on the use of these keys.)
Function Keys - The function keys include keys for panic
alarm activation. The panic alarms are activated by pressing
key pairs [1] & [✱], [3] & [#], [✱] & [#].
How these panic keys function and the type of panic alarms
they produce is determined by the control panel's capability
and programming. (Check with your installer for the
availability and programming of these panic keys.)
SPECIAL FUNCTION KEYS -
located to the left of the numeric keys (see Figure 1). The keys
may be programmed by your installer for panic alarms or other
special functions such as single-button arming. (Check with
your installer to see which options are available with your
system.)
Each of the four Special Function Keys must be held
down for at least two seconds to activate.
A set of adhesive labels with typical panic symbols is provided.
Place the appropriate label in the indented area on each key,
so that you can easily identify each key's function.
User Guide
Function
These are the four keys
Keypad/Transceiver
SOUNDER
The built-in speaker has the following functions:
• Produces warning sounds during alarm and trouble
conditions, and also during entry/exit delay periods.
Provides acknowledgment tones when keys are pressed, and
confirmation tones for successful command entries.
ARMED
SPECIAL
READY
FUNCTION
KEYS

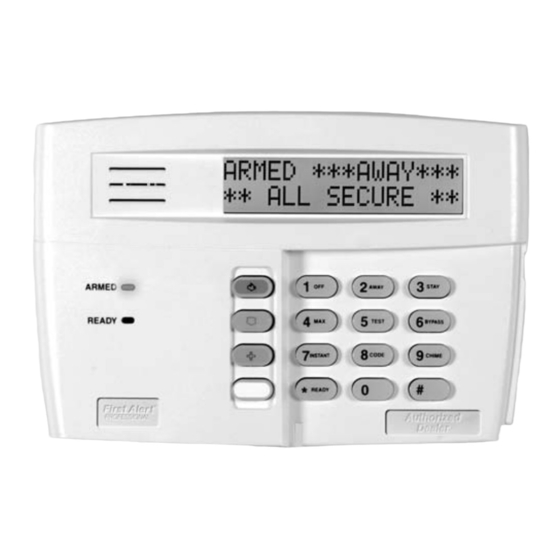

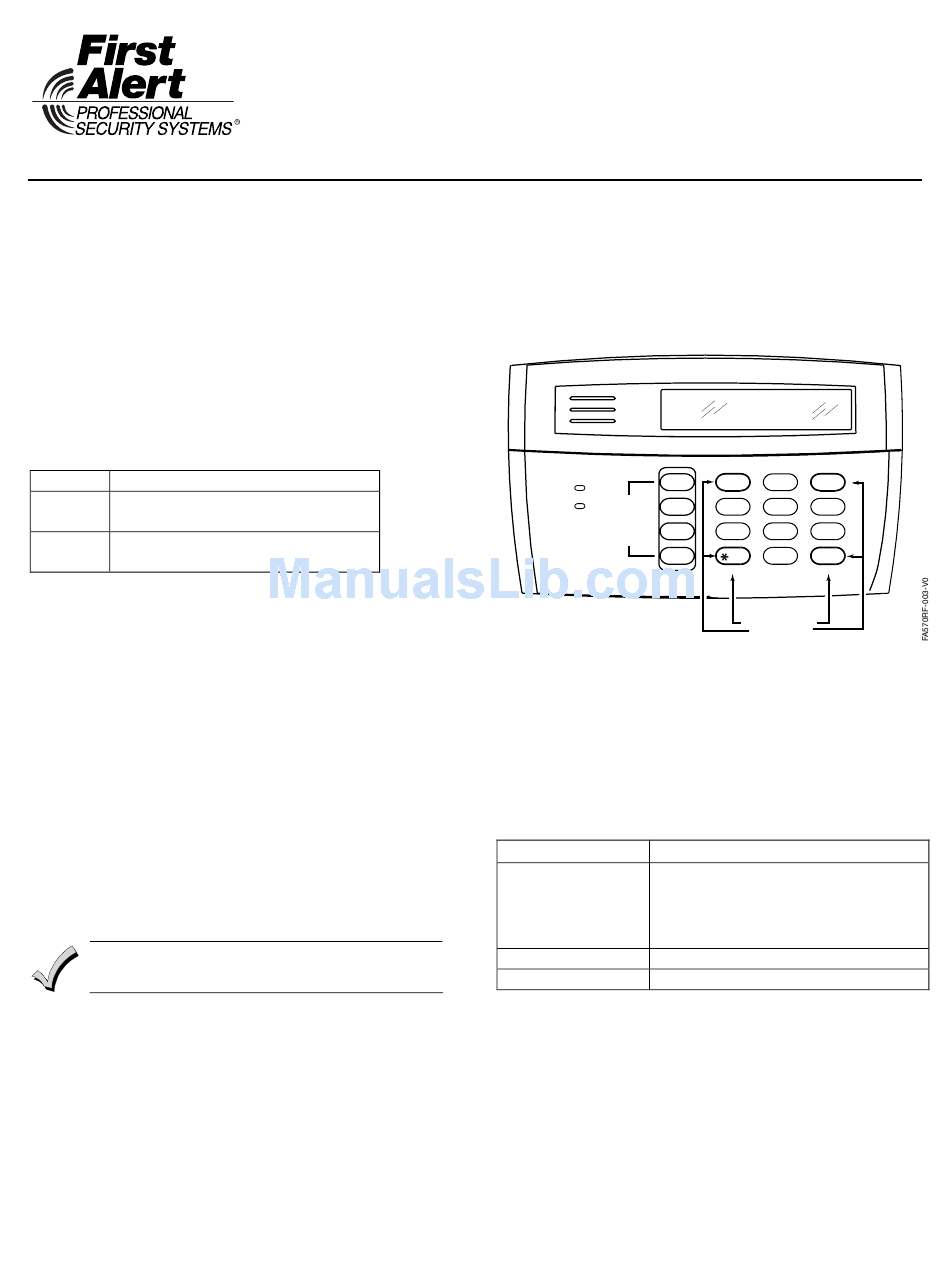

Figure 1. FA570RF Keypad/Transceiver
(front door removed)
TROUBLESHOOTING
The error messages listed in the following table cause the
keypad to produce a single ding tone. The table describes the
error messages and the corrective actions.
Display
Low Bat (with Zone 1. Replace the battery in the wireless
No.) transmitter.
2. Replace the transmitter if the wireless
transmitter does not have a replaceable
battery
Open Ckt Contact your Installer.
Check 100
Contact your Installer.
K14031UGV1 8/06 Rev. B
FA570RF
3
1 2
OFF AWAY STAY
4 5 6
MAX TEST BYPASS
7 9
8
INSTANT CODE CHIME
0 #
READY
STATUS FUNCTION
PANIC KEY
PAIRS
Corrective Action
