Page 1: Installation Guide
Installation Guide TX432 JetStream 10-Gigabit 2-Port SFP+ Module REV1.0.1 7106504459... -
Page 2: Copyright And Trademarks
No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2013 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. http://www.tp-link.com... -
Page 3: Fcc Statement
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 4: Ce Mark Warning
CE Mark Warning This is a class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам... -
Page 5: Chapter 1 Introduction

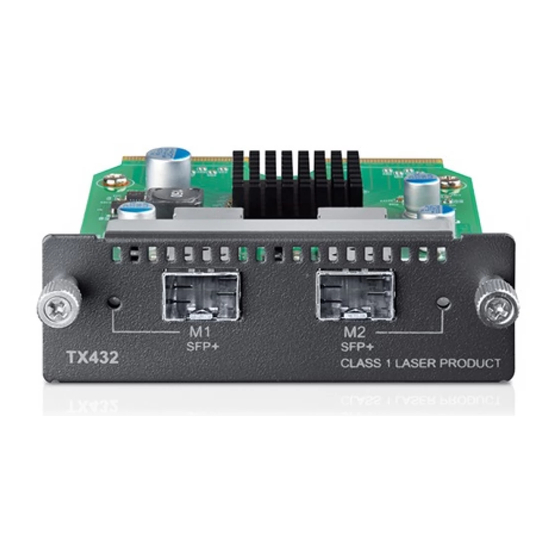

Chapter 1 Introduction 1.1 Overview of the Product JetStream 10-Gigabit 2-Port SFP+ Module TX432 is an interface card providing two 10G SFP+ ports. It is applicable to multiple TP-LINK switch models. Figure 1-1 Appearance of TX432 Figure 1-2 Front panel of TX432... -
Page 6: Description Of Ports
1.2 Description of Ports Ports of TX432 are both 10G SFP+ ports. You can insert an SFP+ transceiver into the port (on TX432) to connect it to the SFP+ port (on another device) through an optical fiber, or an SFP+ cable provided by TP-LINK. For details about the supported SFP+ transceivers and SFP+ cables, please refer to the table below. -
Page 7: Chapter 2 Installation
SPF+ port is connected to a device and Blinking transferring data. Note: The switch applicable to TX432 will display corresponding LEDs on its front panel to indicate the port status of the interface card. For details about the LEDs, please refer to the switch user guide. - Page 8 Figure 2-1 Install an interface card (1) Hold the fastening screws on the front panel of the interface card, and gently push the interface card in along the slot guide rail until the interface card is flush with the switch, as shown in Figure 2-2. Figure 2-2 Install an interface card (2) Tighten the captive screws with a Phillips screwdriver to fix the interface card in place.
-
Page 9: Verifying The Installation
Note: • TX432 supports hot plug, so if necessary you can install or remove the interface card when the switch is operating. However, it is recommended that the power be turned off during installation. - Page 10 Do not look straight at the optical port of TX432 when it is operating, because the optical fiber beam is of high energy and thus will do great harm to the retina. Looking straight at the optical fiber beam could do great...
-
Page 11: Appendix: Specifications
Appendix: Specifications Normal IEEE 802.3ae, IEEE 802.3aq, Standards SFF-8431 Safety & Emissions FCC, CE Max Power 6.57w with Fiber Consumption M1,M2 Operating Temp 0℃~50℃ (32℉~122℉) Storage Temp -40℃~70℃ (-40℉~158℉) Operating Humidity 10%~90% RH, Non-condensing Storage Humidity 5%~90% RH, Non-condensing Dimension 131*92*31mm... -
Page 12: Technical Support
AU 1300 87 5465 (Depending on 1300 Service time: Monday to Friday, 09:00 to policy.) 18:00 *Except French Bank holidays Switzerland E-mail: support.au@tp-link.com (Australia) support.nz@tp-link.com (New Zealand) Tel: +41 (0) 848 800 998 (German Service time: 24hrs, 7 days a week Service)
