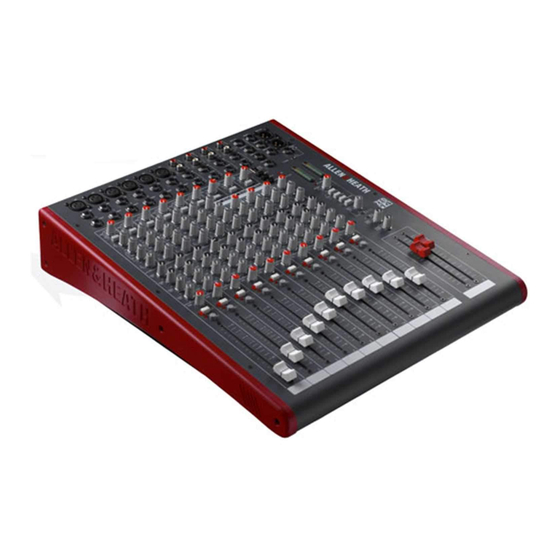

Summary of Contents for ALLEN & HEATH ZED 14

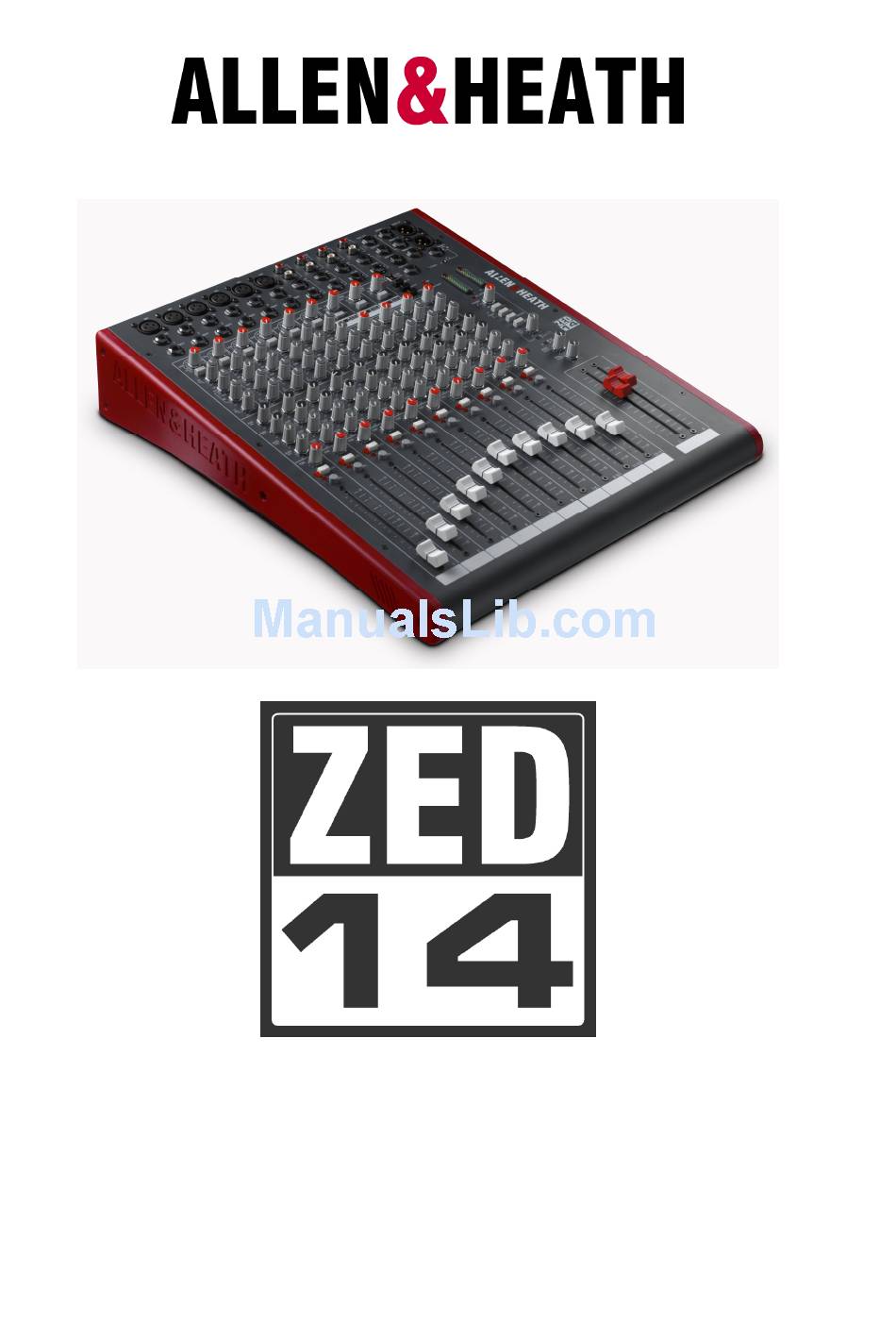

- Page 1 USER GUIDE Publication AP6822...
-
Page 3: Warranty
EMC standards. Customers requiring more information about EMC and safety issues can contact Allen & Heath. ZED 14 User Guide AP6822 Issue 3 Copyright © 2007 Allen & Heath Limited. All rights reserved Allen & Heath Limited Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK http://www.allen-heath.com... -
Page 4: Packed Items
PACKED ITEMS Check that you have received the following: ST RTN 2TRK RTN REC OUT ALT OUT AUX1 OUT MAIN OUT INSERT L AUX2 OUT INSERT R LINE LINE LINE LINE LINE LINE AUX3 OUT MONO OUT ST1 IN ST2 IN ST3 IN ST4 IN INSERT... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS WARNINGS Read the following before proceeding : CAUTION ATTENTION: RISQUE DE CHOC ELECTRIQUE – NE PAS OUVRIR Read instructions: Retain these safety and operating instructions for future reference. Adhere to all warnings printed here and on the console. Follow the operating instructions printed in this User Guide. Do not remove cover: Operate the console with its covers correctly fitted. -
Page 6: General Precautions
SAFETY INSTRUCTIONS Important Mains plug wiring instructions The console is supplied with a moulded mains plug fitted to the AC mains power lead. Follow the instructions below if the mains plug has to be replaced. The wires in the mains lead are coloured in accordance with the following code: TERMINAL WIRE COLOUR... -
Page 7: Table Of Contents
CONTENTS Thank you for purchasing your Allen & Heath ZED-14 mixer. To ensure that you get the maximum benefit from the unit please spare a few minutes familiarizing yourself with the controls and setup procedures outlined in this user guide. For further information please refer to the additional information available on our web site, or contact our technical support team. -
Page 8: Panel Drawings
PANEL DRAWINGS This device complies with Part 15 of the FCC Rules. CAUTION Operation is subject to the following two conditions: RISK OF ELECTRIC SHOCK (1) this device may not cause harmful interference, and DO NOT OPEN (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 9: Introduction To Zed-14
INTRODUCTION TO THE ZED-14 The following is a bit technical, so if you want to, please skip to the next section! The Allen & Heath ZED-14 mixer has been carefully and lovingly designed in the beautiful county of Cornwall in the UK and is manufactured alongside a wide range of professional audio mixing consoles. Many of the components used in ZED are exactly the same as in the larger Allen &... -
Page 10: Specifications
SPECIFICATIONS Operating Levels Input Mono channel (XLR) Input +6 to –63dBu for nominal (+17dBu in max) Mono channel Line Input (Jack socket) +10 to –26dBu (+30dBu maximum) Insert point (TRS Jack socket) 0dBu nominal +21dBu maximum Stereo Input (Jack sockets) 0dBu nominal (control = Off to +10dB) Stereo input (phono sockets) 0dBu nominal (control = Off to +10dB) -
Page 11: Dimensions
Dimensions 384.00 Weight Unpacked 6.5kg (14.3lb) Packed 8.5kg (18.7lb) Allen & Heath ZED-14 User Guide... -
Page 12: Block Diagram
BLOCK DIAGRAM AUX 1 AUX 2 AUX 3 AUX 4 Allen & Heath ZED-14 User Guide... -
Page 13: Mono Input Channel
MONO INPUT CHANNEL Mic Input Socket Standard 3-Pin XLR socket wired as Pin 1=Chassis, Pin 2=hot (+), Pin 3=Cold (-). Line Input Jack Socket Standard 1/4” (6.25mm) Jack socket for balanced or un- balanced line level signals. Wired Tip=Hot(+), Ring=cold (-), Sleeve=Chassis. LINE The Line input overrides the Mic input, so if you want to hear something plugged in to the xlr socket, make sure... - Page 14 MONO INPUT CHANNELS 1TO 6 HF EQ The HF (High Frequency) equaliser affects the frequency 20 30 response of the higher audible frequencies. The corner GAIN frequency of 12kHz is around 3dB from the maximum cut or boost of the circuit. It has plenty of gain and actu- LINE ally gives slightly more that the +/-15dB legend suggests.
- Page 15 MONO INPUT CHANNELS 1 TO 6 Auxes 1 & 2 Each of these controls sends a signal to an auxiliary bus. The AUX1 signal is sourced pre-fade which means that the level is inde- pendent of, and unaffected by the fader. Auxes 1 & 2 are pri- marily used for foldback monitoring purposes, as the fader does AUX2 not affect the level.
-
Page 16: Stereo Input Channel
STEREO INPUT CHANNEL 7-8 Stereo Return Phono sockets This is an additional stereo input to the main stereo ST RTN channel input (below). The gain is varied by the ST RTN control and this input can be sent to either the stereo channel or straight to the L R main bus, depending on the setting of the under-panel switch. - Page 17 STEREO CHANNEL 7-8 STEREO Aux 1 & 2 switch This is an under-panel selector switch that configures Auxes 1 STEREO & 2 to be either mono sends or a stereo send pair. AUX1 UP: A mono sum of the left & right stereo channel signal is sent to Aux buses 1 &...
- Page 18 STEREO INPUT CHANNELS 9-10, 11-12, 13-14 ST RTN 2TRK RTN REC OUT ALT OUT ST1 IN ST2 IN ST3 IN ST4 IN 2TRK RETURN SEND AUX1-2 AUX 3-4 To LR To LR To LR To 7-8 To 9-10 To 11-12 LR PRE UP=LR post Stereo Input Channel 7-8...
-
Page 19: Usb And Master Section
USB & MASTER SECTION Aux output jack sockets Standard 1/4” jack sockets for Aux 1 to 4 outputs. Im- AUX1 OUT INSERT L MAIN OUT pedance balanced, nominal level = 0dBu. AUX2 OUT INSERT R Mix L R Insert jack sockets Standard 1/4”... - Page 20 USB & MASTER SECTION PHONES Monitor selector switches AUX4 OUT These 4 switches select the signal source for the head- phones monitor and the meters. They work on a prior- POWER ity basis. If they are all up then the post-fade main L R signals will feed the monitor circuit, if USB and 2 TRK are pressed, then only the 2 TRK signals will feed the monitor circuit.
-
Page 21: Usb Connection
USB CONNECTION AUX3 OUT MONO OUT ST2 IN ST3 IN ST4 IN AUX4 OUT RETURN SEND POWER AUX1-2 AUX 3-4 To LR To LR To 9-10 To 11-12 LR PRE PHANTOM POWER UP=LR post 12kHz 12kHz PFL ACTIVE PHONES 80Hz 80Hz STEREO STEREO... -
Page 22: Sonar Le Software Introduction
SONAR LE cakewalk DIGITAL AUDIO WORKSTATION SONAR LE Overview. SONAR LE is a software application from Cakewalk and is included free of charge with your new ZED mixing console. SONAR LE is a powerful first step into the world of sequencing and hard disk recording on the Windows platform. You’ll be able to record from your ZED mixer, create tracks and arrange songs, then play back to your ZED mixer via the USB port. -
Page 23: System Requirements
System Requirements. System Require- Minimum Recommended ments Operating System Windows XP Windows XP/Vista/Vista x64 Processor Speed Intel® Pentium® 4 1.3 GHz, Intel® Pentium® 4 2.8 GHz or AMD™ Athlon XP 1500+ [EM64T], or AMD™ Athlon 64 or higher 2800+or higher 256 MB 1 GB or higher Graphics (resolution,... - Page 24 Next, fire up SONAR LE. Click Options/Audio and click on the Drivers tab. The Input drivers are the audio sources to the computer, here we have enabled the USB Audio De- vice which is the ZED mixing console USB device, and disabled the audio from the soundcard in the pc.
- Page 25 To record the audio on tracks 1 & 2, click the R buttons so they light up red, then the record button (circle) on the transport controls on the top icon toolbar. (Or select larger trans- port controls from Views). The audio wave profile will show in the track panes.
-
Page 26: Configuring Sonar Le With Zed. 24 Application Information-Live
LIVE SETUP Powered PA Speakers CD Player Effects Units Line or Stereo inputs Mic Inputs Powered Stage Monitors ST RTN 2TRK RTN REC OUT ALT OUT AUX1 OUT INSERT L MAIN OUT AUX2 OUT INSERT R LINE LINE LINE LINE LINE LINE AUX3 OUT... -
Page 27: Application Information-Studio
RECORDING SETUP Main Studio Speakers KT-88 Alt Studio Speakers Effects Units Mic Inputs Line Inputs ST RTN 2TRK RTN REC OUT ALT OUT AUX1 OUT INSERT L MAIN OUT AUX2 OUT INSERT R LINE LINE LINE LINE LINE LINE Powered Monitor AUX3 OUT MONO OUT ST1 IN... -
Page 28: Using Usb For Effects
USING USB FOR EFFECTS ST2 IN ST3 IN ST4 IN RETURN SEND AUX1-2 AUX 3-4 To LR To LR To 9-10 To 11-12 LR PRE PHANTOM POWER UP=LR post 12kHz 12kHz 80Hz 80Hz STEREO STEREO STEREO AUX1 AUX1 AUX2 AUX2 AUX3 AUX3 POST... -
Page 29: Wiring Notes
WIRING NOTES PROCESSOR Insert cable wiring RETURN INSERT SEND GROUND RETURN SEND LINK RING TO SLEEVE TO UNBALANCE Y-Adapter Y-Adapter RCA phono jacks 2 Outputs to 1 Input adapter 1 Output to 2 Inputs RCA PHONO CABLE UNBALANCED No ! INSTRUMENT CABLE UNBALANCED UNBALANCED... -
Page 30: Product Support
PRODUCT SUPPORT www.allen-heath.com Investigate ALLEN & HEATH’s other ranges at Large Live Sound mixers — iLive digital, ML and GL Series Small Format Live Sound mixers — ZED, MixWizards and PA Series DJ products — Xone Series Sound Management Series — iDR Series Registering your product Thank you for buying the Allen &...
