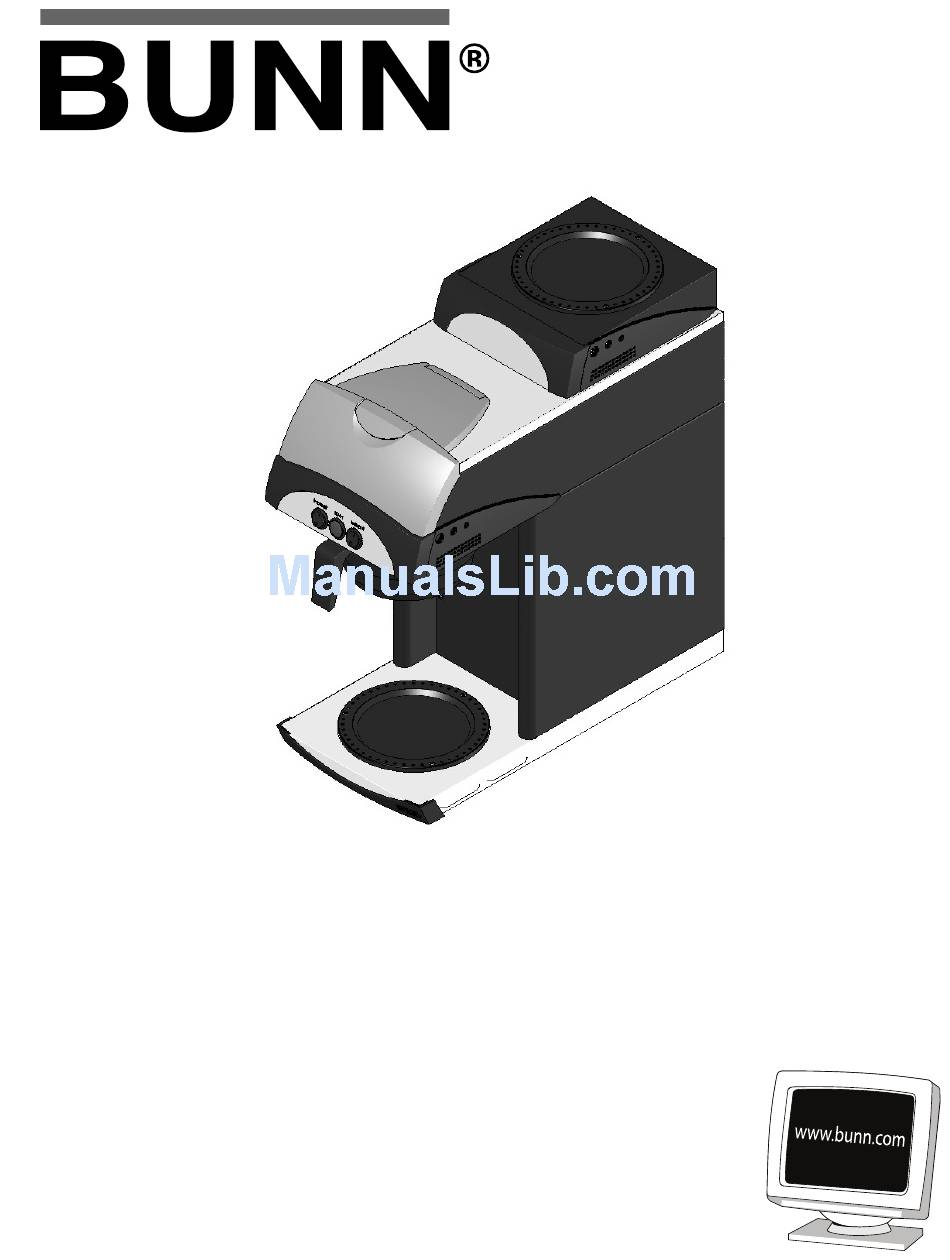

OPERATING & INSTALLATION MANUAL
To ensure you have the latest revision of the manual or to obtain the illustrated parts catalog, please visit
the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain
the latest catalog and manual updates. Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain
a paper copy of the required Illustrated Parts Catalog mailed via U.S. Postal Service.
40305.0000G 05/13 ©2009 BUNN-O-MATIC CORPORATION
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
392
®

Advertisement

Table of Contents
loading

Related Manuals for Bunn 392

Summary of Contents for Bunn 392

  • Page 1 To ensure you have the latest revision of the manual or to obtain the illustrated parts catalog, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates. Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain a paper copy of the required Illustrated Parts Catalog mailed via U.S.
  • Page 2 AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profi ts, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 3: User Notices

    FAILURE TO COMPLY RISKS EQUIPMENT DAMAGE, FIRE, OR SHOCK HAZARD READ THE ENTIRE OPERATING MANUAL BEFORE BUYING OR USING THIS PRODUCT PN: 00658.0000G 02/08 © 1985 BUNN-O-MATIC CORPORATION THIS APPLIANCE IS HEATED WHENEVER # 00658.0000 CONNECTED TO A POWER SOURCE 00831.0000F 3/98 ©1998 BUNN-O-MATIC CORPORATION...

  • Page 4: Electrical Requirements

    ELECTRICAL REQUIREMENTS CAUTION - The brewer must be disconnected from the power source until specifi ed in Initial Set-Up. All models have an attached cordset and plug. US models require 2-wire grounded service rated 120 volts ac, 15 amp, single phase, 60 Hz. "A"...

  • Page 5: Coffee Brewing

    COFFEE BREWING ® 1. Insert a BUNN fi lter into the funnel. 2. Pour the fresh coffee into the fi lter and level the bed of grounds by gently shaking. 3. Slide the funnel into the funnel rails. 4. Place an empty decanter beneath the funnel.

  • Page 6: Troubleshooting

    TROUBLESHOOTING A troubleshooting guide is provided to suggest probable causes and remedies for the most likely problems encountered. If the problem remains after exhausting the troubleshooting steps, contact the Bunn-O-Matic Technical Service Department. • Testing, and repair of electrical equipment should be performed only by qualifi ed service personnel.
  • Page 7 Page 7 40305 040307...
  • Page 8 20583.0010 Funnel Assembly w/Decals 04238.0000 Pitcher 01188.0000 Deliming Spring 28319.0000 Thermostat 07073.1000 Grommet 01082.0000 Sprayhead, 6 Hole 01075.0000 Nut, Hex .438"-20 37381.0000 Switch, DPST 37304.0000 Power Cord, 120V 37304.0001 Power Cord, 230V CE 37304.0002 Power Cord, 230V UK 37304.0003 Power Cord, 100V 37322.0000 Foot, M6 x 1.0 Thread 37353.0000...

  • Page 9: Schematic Wiring Diagram

    TANK HEATER LIMIT ADJUSTABLE THERMOSTAT 100V-1600W THERMOSTAT 120V-1310W 220V-1850W 100V-120V MAIN 220V-240V SWITCH READY LIGHT "KEEP WARM" HEATER LIMIT THERMOSTAT OPTIONAL 120 VOLTS A C 2 WIRE SINGLE PHASE 60 HZ 39943.0000C 11/12 © 2012 BUNN-O-MATIC CORPORATION Page 9 40305 111512...
