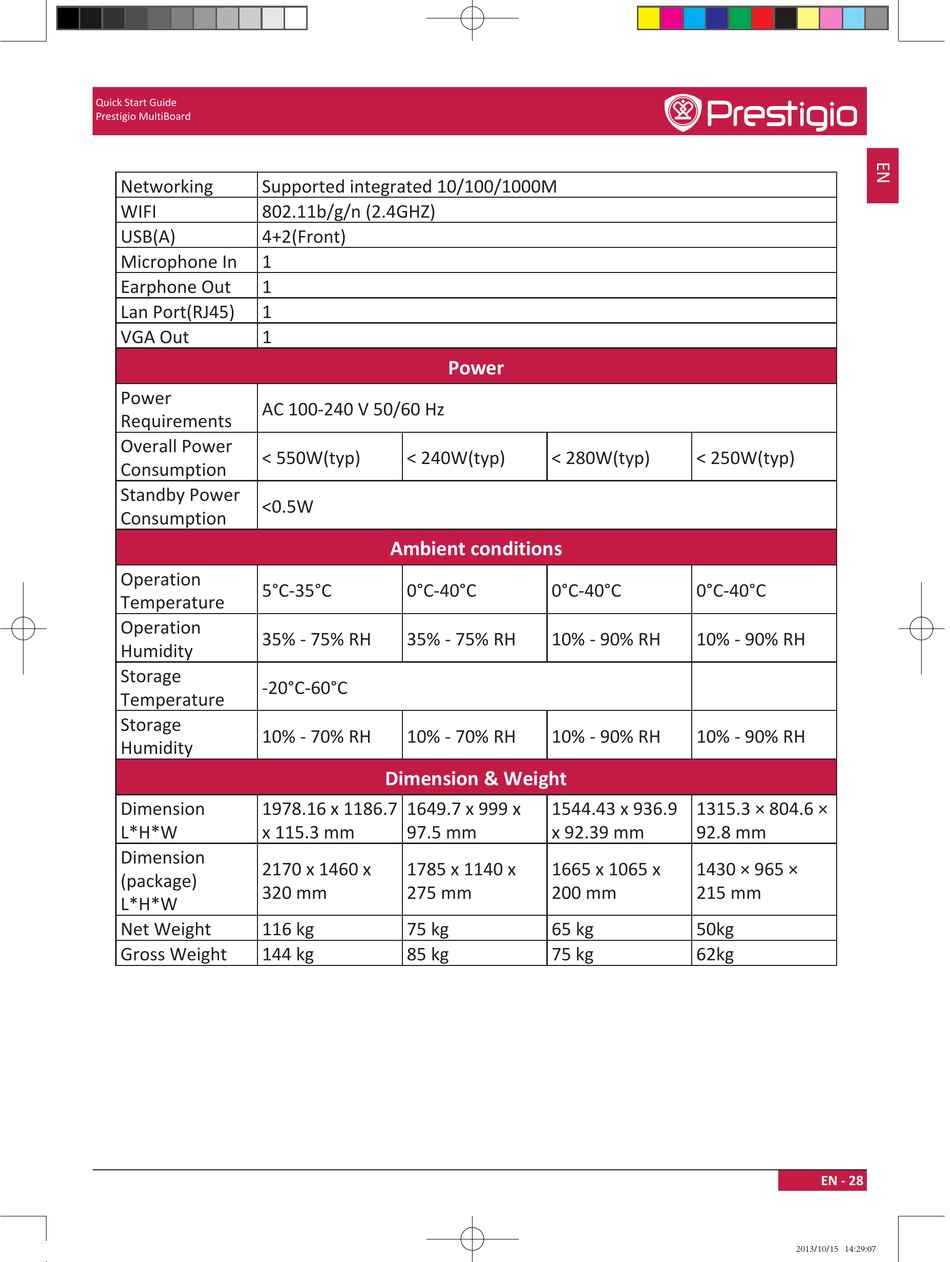

Prestigio MultiBoard Quick Manual page 31

Quick Start Guide
Prestigio MultiBoard
Networking Supported integrated 10/100/1000M
WIFI 802�11b/g/n (2�4GHZ)
USB(A) 4+2(Front)
Microphone In 1
Earphone Out 1
Lan Port(RJ45) 1
VGA Out 1
Power
AC 100-240 V 50/60 Hz
Requirements
Overall Power
< 550W(typ)
Consumption
Standby Power
<0�5W
Consumption
Operation
5°C-35°C
Temperature
Operation
35% - 75% RH
Humidity
Storage
-20°C-60°C
Temperature
Storage
10% - 70% RH
Humidity
Dimension 1978�16 x 1186�7
L*H*W x 115�3 mm
Dimension
2170 x 1460 x
(package)
320 mm
L*H*W
Net Weight 116 kg
Gross Weight 144 kg
Power
< 240W(typ) < 280W(typ)
Ambient conditions
0°C-40°C 0°C-40°C
35% - 75% RH 10% - 90% RH
10% - 70% RH 10% - 90% RH
Dimension & Weight
1649�7 x 999 x 1544�43 x 936�9
97�5 mm x 92�39 mm
1785 x 1140 x 1665 x 1065 x
275 mm 200 mm
75 kg 65 kg
85 kg 75 kg
< 250W(typ)
0°C-40°C
10% - 90% RH
10% - 90% RH
1315�3 × 804�6 ×
92�8 mm
1430 × 965 ×
215 mm
50kg
62kg
EN - 28
