- Page 1 CABINET PARTS REFRIGERATOR For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless) 04−07 Printed In U.S.A. (mat) Part No. W10128953 Rev. B...
-

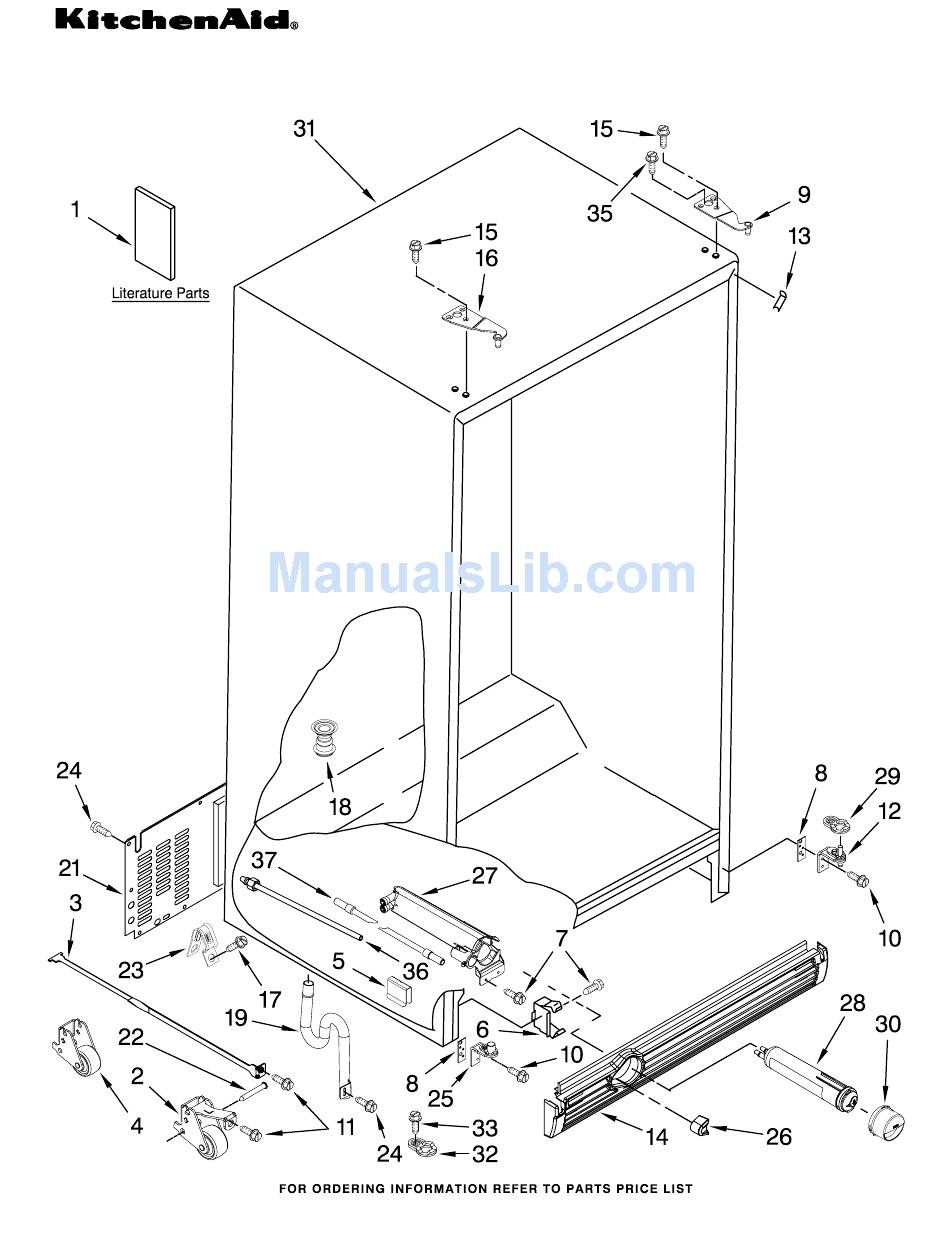

Page 2: Cabinet Parts
For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) Illus. Part DESCRIPTION Literature Parts 2318583 Use & Care Guide 2223419 Service & Wiring Sheet 2223996 Installation Instructions 2318615 Energy Guide 2220407 Modular Icemaker Service Sheet Front Roller Asm 2306950 Left Side... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) W10128953 (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2224121 Escutcheon, Meat Pan Control 2224123 Slide, Meat Pan Control 1118894 Switch, Rocker 2188820 Thermistor... -
Page 4: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless) Illus. Part 2224061 Shelf Assembly, 2301025 Button, Humidity 2301026 Slide, Humidity 2301117 Gasket, Side (2) 2203027 Cover, Meat Pan 2301023 Snack Pan 2301548 Right Side... -
Page 5: Freezer Liner Parts
FREEZER LINER PARTS For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless) W10128953... - Page 6 For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 2223777 Spacer, Slide (2) 2196483 Stud Assembly 2223811 Basket, Deep (2) 8281158 Screw 2223500 Shelf Assembly, Cantilever (2) 2224053 Front, Basket Shelf Track 2223787 Right Side...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless) W10128953... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) (Biscuit) Illus. (Black) (Stainless Steel) (Monochromatic Stainless) Part DESCRIPTION 2223317 Ice Bin 2317256 Crusher Bin 2258220 Auger 2258220 Washer 1119007 Spacer, Flat (4) 2317248 Cover, Crusher 2257024 Blade, Rotary...
-
Page 9: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless) W10128953... - Page 10 REFRIGERATOR DOOR PARTS For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) (Biscuit) Illus. 9 W10010140 Screw (Black) (Stainless Steel) (Monochromatic Stainless) Part DESCRIPTION Refrigerator Door (Includes #7) 2307198W White 2307198T Biscuit 2307198B Black 2307198S Stainless Steel 2307198SU Monochromatic Stainless 2203087K Trim, Shelf...
-
Page 11: Freezer Door Parts
FREEZER DOOR PARTS For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless) W10128953... - Page 12 FREEZER DOOR PARTS For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) (Biscuit) Illus. 6 W10010140 Screw (Black) (Stainless Steel) (Monochromatic Stainless) Part DESCRIPTION Freezer Door (Includes #8 And Dispenser Front Parts) 2327667W White 2327667T Biscuit 2327667B Black 2327667SB Stainless Steel...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless) W10128953... - Page 14 DISPENSER FRONT PARTS For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 3196537 Screw 2194719 Retainer, Levers 2304772 Spring, Torsion 2196195 Pin 2180353 Door, Ice 2304355 Door Mechanism Assembly 2205686 Mechanism Delay Grille, Overflow...
-
Page 15: Air Flow Parts
For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) Illus. Part DESCRIPTION 2182120 Fan Scroll 2223733 Retainer, Fan Motor 2223298 Air Scoop 2223303 Air Duct, Upper 2223297 Air Duct Freezer 2319914 Bi−Metal, Defrost 2259385 Fan Motor 2169142 Fan Blade 2304241 Gasket, Evaporator... -
Page 16: Control Parts
CONTROL PARTS For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) (Biscuit) Illus. (Black) (Stainless Steel) (Monochromatic Stainless) Part DESCRIPTION 2319753 Control Box (Includes #6) 2223882 Heat Shield Asm (Includes #17) 2307037 Control Board Asm 2223506 Light Lens, Control Box 2223857 Light Socket... -
Page 17: Unit Parts
UNIT PARTS For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless) W10128953... - Page 18 For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) Illus. Part DESCRIPTION 777070 Screw 2225834 Fan, Blade 2223315 Condenser Assembly 8281197 Screw 3400524 Screw (6) 2223703 Housing, Control Board 2223351 Tube Suction 2161302 Sleeve 9 W10000040 Washer 2301979 Plate, Mounting 8281196 Screw...
-
Page 19: Icemaker Parts
ICEMAKER PARTS For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) (Biscuit) (Black) (Stainless Steel) (Monochromatic Stainless) W10128953... - Page 20 ICEMAKER PARTS For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) (Biscuit) Illus. (Black) (Stainless Steel) (Monochromatic Stainless) Part DESCRIPTION 489084 Screw 2256096 Fitting, Water Tube 628379 Clip, Fuse 489478 Screw 2315533 Water Valve Asm 2208136 Tube Clip 2174358 Cover 488649 Screw 628228 Mold &...
- Page 21 OPTIONAL PARTS (NOT INCLUDED) For Models: KSCS25INWH03, KSCS25INBT03, KSCS25INBL03, KSCS25INSS03, KSCS25INMS03 (White) Illus. Part DESCRIPTION Customer Touch−Up Material 350942 Primer, White 350939 Black 350930 White 4392901 Biscuit 8171357 Graphite PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 4392899 Biscuit 80051 Graphite...
