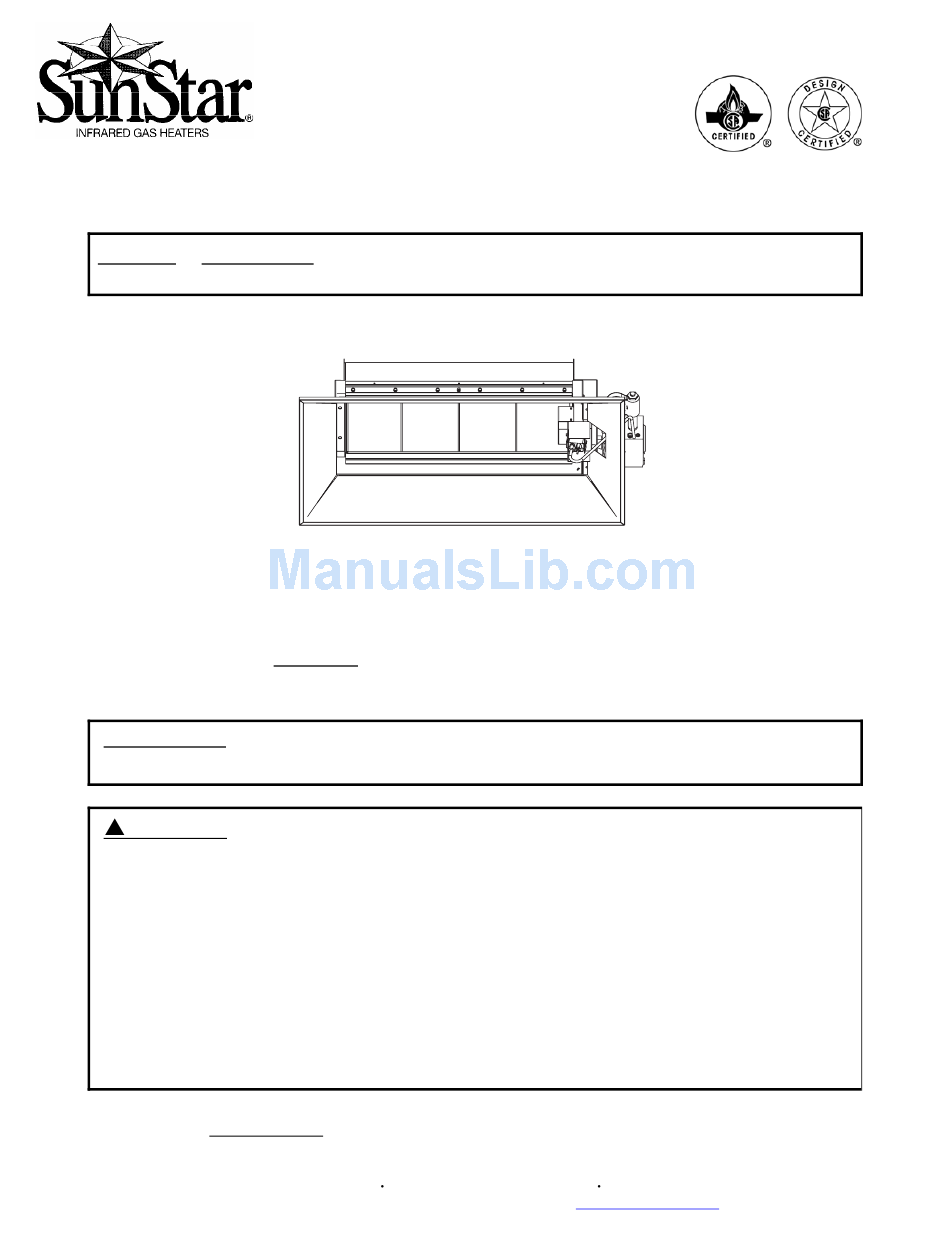

INSTALLATION AND OPERATION INSTRUCTIONS
OWNER / INSTALLER:
read and understood before installing, operating or servicing this heater.
INFRARED RADIANT CERAMIC HEATER
Models:
!INSTALLER:
This manual is the property of the owner. Please present this manual
to the owner when you leave the job site.
WARNING:
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury or death. Read the installation, operation
and maintenance instructions thoroughly before installing or servicing this
equipment.
In locations used for the storage of combustible materials, signs must be
posted to specify the maximum permissible stacking height to maintain
the required clearances from the heater to the combustibles. Signs must
either be posted adjacent to the heater thermostats or in the absence of
such thermostats, in a conspicuous location.
!IMPORTANT: SAVE THIS MANUAL FOR FUTURE REFERENCE.
Post Office Box 36271
Phone (704) 372-3486 – www.sunstarheaters.com – email:
For your safety this manual must be carefully and thoroughly
STARGLO MILLIVOLT SERIES
SGM3, SGM6, SGM10
UNVENTED (For Indoor Installation Only)
SUNSTAR HEATING PRODUCTS, INC.
306 West Tremont Avenue
(28236)
Charlotte, North Carolina
(28203
)
info@sunstarheaters.com
Form #43219030
June 09
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SunStar SGM3
Summary of Contents for SunStar SGM3
-
Page 1: Installation And Operation Instructions
For your safety this manual must be carefully and thoroughly read and understood before installing, operating or servicing this heater. STARGLO MILLIVOLT SERIES INFRARED RADIANT CERAMIC HEATER SGM3, SGM6, SGM10 Models: UNVENTED (For Indoor Installation Only) !INSTALLER: This manual is the property of the owner. Please present this manual to the owner when you leave the job site. -
Page 2: Table Of Contents
! WHAT TO DO IF YOU SMELL GAS: DO NOT try to light any appliance. Extinguish any open flame. Open windows. DO NOT touch any electrical switch. DO NOT use any telephone in your building. Immediately call your gas supplier from a neighbor’s telephone. Follow the gas supplier's instructions. -
Page 3: Safety
SAFETY This heater is a self-contained infrared radiant ceramic heater. Safety information required during installation and operation of this heater is provided in this manual and the labels on the product. The installation, service and maintenance of this heater must be performed by a contractor qualified in the installation and service of gas fired heating equipment. - Page 4 Although these heaters may be used in many applications other than space heating (e.g., process heating), SunStar Heating Products, Inc. will not recognize the warranty for any use other than space heating. This heater is for Indoor Installation only and can be used in Unvented mode. The term Unvented actually means Indirect Vented.
-
Page 5: Minimum Clearances To Combustibles
MINIMUM CLEARANCES TO COMBUSTIBLES When installing the infra-red heater system, the minimum clearances to combustibles must be maintained. These distances are shown in Chart below and on the heater. If you are unsure of the potential hazards, consult your local fire marshal, fire insurance carrier or other qualified authorities on the installation of gas fired infra-red heaters for approval of the proposed installation. -
Page 6: Sgm Specifications
"specify the maximum permissible stacking height to maintain the required clearances from the heater to combustibles." SunStar recommends posting these signs adjacent to the heater thermostat or other suitable location that will provide enhanced visibility. -
Page 7: Sgm Dimensions
SGM DIMENSIONS HANGING The heater can be mounted with the reflector horizontal or angled up to 45º off the horizontal. When the heater is to be angle mounted, make sure the controls are on the lower side of the heater. Coil chains (No. 2 or larger) or rigid supports may be used to mount the heater. -
Page 8: Optional Parabolic Reflector Extension Assembly
OPTIONAL PARABOLIC REFLECTOR EXTENSION ASSEMBLY The heater is completely factory assembled and requires no field assembly. If the optional parabolic reflector extension is utilized, locate and identify the end panels and side panels as shown in the following diagram. Attach the side panels as shown. Attach the end panels so that the end flanges of the end panels overlap the side panels. - Page 9 1. Connect to the supply tank or manifold in accordance with the latest edition of National Fuel Gas Code (ANSI Z223.1), and local building codes. Authorities having jurisdiction should be consulted before the installation is made. (In Canada, refer to the latest edition of CAN Standard B.149-1 and -2, Installation Codes for Gas Burning Appliances and Equipment.) 2.
-
Page 10: Instructions For Pressure Test Gauge Connection
GAS PRESSURE TABLE Supply Pressure Model Gas Type Manifold Pressure Minimum Maximum Natural Gas 3.5” W.C. 4.5” W.C. 14.0” W.C. SGM3 Propane Gas 10.0” W.C. 11.0” W.C. 14.0” W.C. SGM6 and Natural Gas 6.0” W.C. 7.0” W.C. 14.0” W.C. SGM10 Propane Gas 10.0”... -
Page 11: Electrical Connections
This heater requires ventilation in the building to dilute the product of combustion and provide fresh air for efficient combustion. Power ventilation is recommended, and the minimum vent flow required is as follows: SGM3 = 109 cfm SGM6 = 218 cfm... -
Page 12: Lighting And Shutdown Instructions
LIGHTING AND SHUTDOWN INSTRUCTIONS STANDING PILOT IGNITION SYSTEM (Ignition Suffix “1”) Turn the dial to “PILOT.” Press the dial in and light the pilot. Hold for 60 seconds and release. Turn the dial counterclockwise to “ON.” Use this position for thermostat control Set the thermostat for desired room temperature. -
Page 13: Replacing Parts
Remove the emitter face from the heater body. This surface unit is attached by ¼” Hex Head machine screws (10 on the SGM3, 16 on the SGM6, and 26 on the SGM10) Use caution in this operation as the emitter surface is fragile. -
Page 14: Replacement Parts Guide
REPLACEMENT PARTS GUIDE MODELS: SGM3-(N1, L1 Item No. Part No. Description 42129000 Plenum Box Assembly 42192000 Emitter Kit (includes items 3 & 4) 40446080 End Gasket (Qty. 2) 40446130 Side Gasket (Qty. 2) 42133000 Screen Retainer (Qty. 2) 40670050 Reverb Screen (Pilot) - Page 15 Minimum Clearance From Combustibles Measured From Emitter Face RSCA3 RSCA6 RSCA10 Reflector Type Mounting RADIATEUR CÉRAMIQUE À INFRAROUGES SANS AÉRATION ANSI Z83.19b / CSA 2.35b-2007 WARNING: AVERTISSEMENT: WARNING: IMPORTANT! WARNING: WHEN ANGLE MOUNTING, THE EXHAUST VENT SIDE MUST BE UP. PN 41250000 Rev A 12/06 IMPORTANT:...
- Page 16 MODELS: SGM6-(N1A, L1) Item No. Part No. Description 40714000 Plenum Box Assembly 41218000 Emitter Kit (includes items 3 & 4) 40446080 End Gasket (Qty. 2) 40446090 Side Gasket (Qty. 2) 40608000 Screen Retainer (Qty. 2) 40670030 Reverb Screen (pilot) 40710020 End Reverb Baffle 40621000 End Flue Collar...
- Page 17 WARNING: AVERTISSEMENT: WARNING: WARNING: Minimum Clearance From Combustibles Measured From Emitter Face RSCA3 RSCA6 RSCA10 Reflector Type Mounting IMPORTANT! RADIATEUR CÉRAMIQUE À INFRAROUGES WHEN ANGLE MOUNTING, THE SANS AÉRATION EXHAUST VENT SIDE MUST BE UP. ANSI Z83.19b / CSA 2.35b-2007 PN 41250000 Rev A 12/06 –16–...
- Page 18 MODELS: SGM10-(N1A, L1) Item No. Part No. Description 40742000 Plenum Box Assembly 41219000 Emitter Kit (includes items 3 & 4) 40446080 End Gasket (Qty. 2) 40446110 Side Gasket (Qty. 2) 40747000 Screen Retainer (Qty. 2) 40670040 Reverb Screen (pilot) 40710010 Reverb Baffle Assembly (ignition end) 40710020 Reverb Baffle (back end)
- Page 19 WARNING: AVERTISSEMENT: WARNING: WARNING: Minimum Clearance From Combustibles Measured From Emitter Face RSCA3 RSCA6 RSCA10 Reflector Type Mounting IMPORTANT! RADIATEUR CÉRAMIQUE À INFRAROUGES SANS AÉRATION WHEN ANGLE MOUNTING, THE ANSI Z83.19b / CSA 2.35b-2007 EXHAUST VENT SIDE MUST BE UP. PN 41250000 Rev A 12/06 –18–...
- Page 20 LIMITED WARRANTY: SunStar Heating Products, Inc., the manufacturer, warrants to the original owner of any SunStar infrared gas heater that said heater will be free from defects in material or workmanship under normal use and service. The heater(s) shall be installed, used and maintained strictly in accordance with the manufacturer's instructions.
