SunStar SGM3 Installation And Operation Instructions Manual

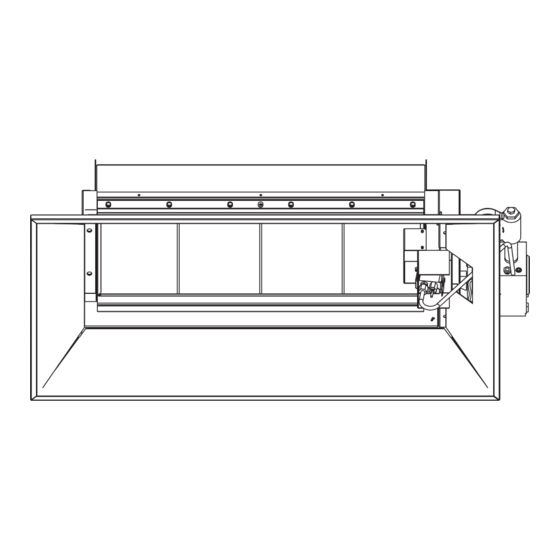

Starglo millivolt series infrared radiant ceramic heater
Hide thumbs Also See for SGM3:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Instructions and Operating Manual

INSTALLATION AND OPERATION INSTRUCTIONS

OWNER / INSTALLER:
read and understood before installing, operating or servicing this heater.
INFRARED RADIANT CERAMIC HEATER
Models:
!INSTALLER:
This manual is the property of the owner. Please present this manual
to the owner when you leave the job site.
WARNING:
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury or death. Read the installation, operation and maintenance
instructions thoroughly before installing or servicing this equipment.
!IMPORTANT: SAVE THIS MANUAL FOR FUTURE REFERENCE.
Post Office Box 36271
Phone (704) 372-3486 – www.sunstarheaters.com – email: info@sunstarheaters.com
For your safety this manual must be carefully and thoroughly
STARGLO MILLIVOLT SERIES
SGM3, SGM6, SGM10
UNVENTED (For Indoor Installation Only)
SUNSTAR HEATING PRODUCTS, INC.
306 West Tremont Avenue
(28236)
Charlotte, North Carolina
(28203
)
Form #43219030
Jan 09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGM3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SunStar SGM3

Summary of Contents for SunStar SGM3

  • Page 1: Installation And Operation Instructions

    For your safety this manual must be carefully and thoroughly read and understood before installing, operating or servicing this heater. STARGLO MILLIVOLT SERIES INFRARED RADIANT CERAMIC HEATER SGM3, SGM6, SGM10 Models: UNVENTED (For Indoor Installation Only) !INSTALLER: This manual is the property of the owner. Please present this manual to the owner when you leave the job site.

  • Page 2: Table Of Contents

    ! WHAT TO DO IF YOU SMELL GAS: DO NOT try to light any appliance. Extinguish any open flame. Open windows. DO NOT touch any electrical switch. DO NOT use any telephone in your building. Immediately call your gas supplier from a neighbor’s telephone. Follow the gas supplier's instructions.
  • Page 3 8 feet. Although these heaters may be used in many applications other than space heating (e.g., process heating), SunStar Heating Products, Inc. will not recognize the warranty for any use other than space heating.

  • Page 4: Minimum Clearances To Combustibles

    NFPA54 requires that the installer must post signs that will "specify the maximum permissible stacking height to maintain the required clearances from the heater to combustibles." SunStar recommends posting these signs adjacent to the heater thermostat or other suitable location that will provide enhanced visibility.

  • Page 5: Sgm Specifications

    1/2" NPT (Female) *MOUNT HEATERS AS HIGH AS POSSIBLE. Minimums are shown as a guideline for human comfort and uniform energy distribution for complete building heating applications. Consult your SunStar representative for the particulars of your installation requirements. 5) OPTIONAL PARABOLIC REFLECTOR EXTENSION ASSEMBLY The heater is completely factory assembled and requires no field assembly.

  • Page 6: Gas Connections And Regulation

    6) GAS CONNECTIONS AND REGULATION Connect to the supply tank or manifold in accordance with the latest edition of National Fuel Gas Code (ANSI Z223.1), and local building codes. Authorities having jurisdiction should be consulted before the installation is made. (In Canada, refer to the latest edition of CAN Standard B.149-1 and -2, Installation Codes for Gas Burning Appliances and Equipment.) All gas supply lines must be located in accordance with the required clearances to combustibles below the heater as listed on the nameplate of the heater.

  • Page 7: Instructions For Pressure Test Gauge Connection

    Pressure Regulator Gas Control Adjustment Knob (beneath cover screw) Wrench Standard Boss Pressure Regulator INLET OUTLET PILOT Models: SGM3-1 SGM6-1 PILOT SGM10-1 Pilot Gas Outlet Powerpile/Thermostat Pilotstat Connection Terminals Power Unit 1/8”NPT Pilot Flow Adjustment Screw Outlet Pressure (beneath cover screw) Tap with 3/16”...

  • Page 8: Thermostat Wiring Installations

    This heater requires ventilation in the building to dilute the product of combustion and provide fresh air for efficient combustion. Power ventilation is recommended, and the minimum vent flow required is as follows: SGM3 = 109 cfm SGM6 = 218 cfm...

  • Page 9: Cleaning And Annual Maintenance

    Carefully brush any foreign material from the back side of the emitter face and the inside of the heater. The insulation gasket which was between the heater body and the emitter face must be replaced when the heater is reassembled. Order two (2) of each of the part numbers indicated for your particular model: SGM3: #40446080 and #40446130 SGM6: #40446080 and #40446090 SGM10: #40446080 and #40446110.

  • Page 10: Replacement Parts Guide

    14) REPLACEMENT PARTS GUIDE MODELS: SGM3-N1,L1 Item No. Part No. Description 42129000 Plenum Box Assembly 42192000 Emitter Kit (includes items 3 & 4) 40446080 End Gasket (Qty. 2) 40446130 Side Gasket (Qty. 2) 42133000 Screen Retainer (Qty. 2) 40670050 Reverb Screen (Pilot)
  • Page 11 15,16 27-32 17,18 IMPORTANT: Please order by Part Number, not by Item Number. Refer to complete Model Number when ordering. All replacement parts available when ordering. MODEL NUMBER SUFFIXES: N = Natural Gas L = Propane Gas 1 = Self-Generating Standing Pilot ALL ILLUSTRATIONS ARE INTENDED TO GIVE THE GENERAL IMPRESSION OF UNITS ONLY.
  • Page 12 40714000 Plenum Box Assembly 41218000 Emitter Kit (includes items 3 & 4) 40446080 End Gasket (Qty. 2) 40446090 Side Gasket (Qty. 2) 40608000 Screen Retainer (Qty. 2) 40670030 Reverb Screen (pilot) 40710020 End Reverb Baffle 40621000 End Flue Collar 40616000 Side Flue Collar 40726000 Venturi Assembly...
  • Page 13 Item No. Part No. Description 40742000 Plenum Box Assembly 41219000 Emitter Kit (includes items 3 & 4) 40446080 End Gasket (Qty. 2) 40446110 Side Gasket (Qty. 2) 40747000 Screen Retainer (Qty. 2) 40670040 Reverb Screen (pilot) 40710010 Reverb Baffle Assembly (ignition end) 40710020 Reverb Baffle (back end) 40621000...
  • Page 14 28,29,30 19,20 28,29,30 19,20 24,25 14 21 17,18 40-45 –13– Form #43219030 Jan 09...
  • Page 15 LIMITED WARRANTY: SunStar Heating Products, Inc., the manufacturer, warrants to the original owner of any SunStar infrared gas heater that said heater will be free from defects in material or workmanship under normal use and service. The heater(s) shall be installed, used and maintained strictly in accordance with the manufacturer's instructions.
