SunStar ECLIPSE Installation And Operation Instruction Manual

SunStar ECLIPSE Installation And Operation Instruction Manual

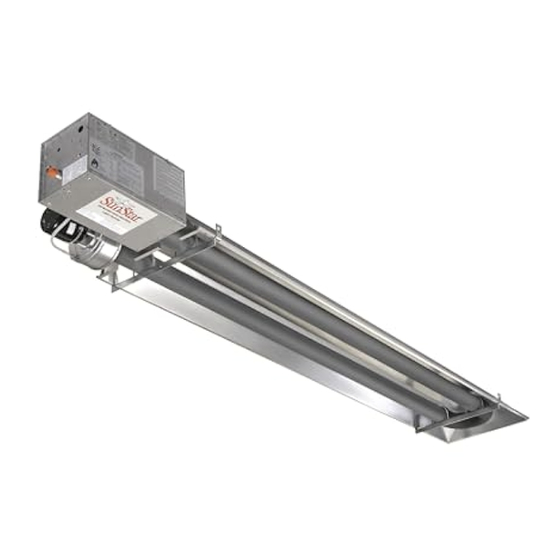

Infrared radiant tube heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION AND OPERATION INSTRUCTIONS
OWNER / INSTALLER: For your safety this manual must be carefully and thoroughly read and
understood before installing, operating or servicing this heater.
INFRARED RADIANT TUBE HEATER
Single and Two Stage Pull Through System (Negative Pressure)
!INSTALLER: This manual is the property of the owner. Please present this manual to the
owner when you leave the job site.
▲WARNING: Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury or death. Read the installation, operation and maintenance
instructions thoroughly before installing or servicing this equipment.
IF YOU SMELL GAS:
! DO NOT try to light any appliance.
! DO NOT touch any electrical switch; DO NOT use any
telephone in your building.
! IMMEDIATELY call your gas supplier from a neighbor's
telephone. Follow the gas supplier's instructions. If you
cannot reach your gas supplier, call the fire department.
!IMPORTANT: SAVE THIS MANUAL FOR FUTURE REFERENCE.
Post Office Box 36271 (28236) • 306 West Tremont Avenue (28203) • Charlotte, North Carolina
Phone (704) 372-3486 • Fax (704) 332-5843 • www.sunstarheaters.com • email: info@sunstarheaters.com
SUNSTAR ECLIPSE
SIR25, SIR35, SIR45 – (N5/L5)
Models:
SIR35, SIR45 – (N7/L7)
FOR YOUR SAFETY
SUNSTAR HEATING PRODUCTS, INC.
DO NOT store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
Form 43471010
Dec 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECLIPSE and is the answer not in the manual?

Questions and answers

Related Manuals for SunStar ECLIPSE

Summary of Contents for SunStar ECLIPSE

  • Page 1 !IMPORTANT: SAVE THIS MANUAL FOR FUTURE REFERENCE. SUNSTAR HEATING PRODUCTS, INC. Post Office Box 36271 (28236) • 306 West Tremont Avenue (28203) • Charlotte, North Carolina Phone (704) 372-3486 • Fax (704) 332-5843 • www.sunstarheaters.com • email: info@sunstarheaters.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION DESCRIPTION PAGE 1.0) Safety ..............................2 2.0) Installer Responsibility ........................2 3.0) General Information ........................... 2 4.0) Minimum Clearances to Combustibles ................... 4 5.0) Specifications............................5 6.0) Packing List ............................5 6.1) Accessory Packages .......................... 6 7.0) Dimensions –...

  • Page 3: Safety

    1.0) SAFETY This heater is a self-contained infrared radiant tube heater. Safety information required during installation and operation of this heater is provided in this manual and the labels on the product. The installation, service and maintenance of this heater must be performed by a contractor qualified in the installation and service of gas fired heating equipment.
  • Page 4 Although these heaters may be used in many applications other than space heating (e.g., process heating), Sunstar will not recognize the warranty for any use other than space heating. This heater is for Indoor Installation and Covered Patio Installation only and can be used in either Vented or Unvented mode.

  • Page 5: Minimum Clearances To Combustibles

    4.0) MINIMUM CLEARANCES TO COMBUSTIBLES Minimum clearances to combustibles shall be measured from the outer surfaces as shown in the following diagram. For reduced clearances below the heater, use the Deflector Kit (Part No. 43504010), described in Section 6.1), and maintain the minimum clearances specified in the notes below. Follow the instructions packaged with the kit for installation.

  • Page 6: Specifications

    8’ 8’ * MOUNT HEATERS AS HIGH AS POSSIBLE. Minimums are shown as a guideline for human comfort and uniform energy distribution for complete building heating applications. Consult your SunStar representative for the particulars of your installation requirements. Model Identification:...

  • Page 7: Accessory Packages

    CONTROL/DRAFT INDUCER PACKAGE NUMBERS 1-STAGE CONTROLS 2-STAGE CONTROLS MODEL NO. PART NO. GAS TYPE MODEL NO. PART NO. GAS TYPE SIR25-N5 43501030 NATURAL SIR35-N7 43501090 NATURAL SIR25-L5 43501040 PROPANE SIR35-L7 43501100 PROPANE SIR35-N5 43501050 NATURAL SIR45-N7 43501110 NATURAL SIR35-L5 43501060 PROPANE SIR45-L7 43501120...

  • Page 8: Dimensions - Sir Series

    7.0) DIMENSIONS – SIR SERIES Form 43471010 Dec 2017...

  • Page 9: Heater Assembly Overview

    8.0) HEATER ASSEMBLY OVERVIEW Form 43471010 Dec 2017...

  • Page 10: Typical Suspension Methods

    6. Heaters must not be supported by gas or electric supply lines and must be suspended from a permanent structure with adequate load capacity. SunStar recommends that the tube sections be suspended using chains with turnbuckles. This will allow slight adjustments after assembly and heater expansion/ contraction during operation.

  • Page 11: Heater Assembly

    10.0) HEATER ASSEMBLY During field assembly of the heater, the recommended procedure is as follows: 1. Install suspension (according to Section 7.0) using proper suspension method (see Section 9.0). Trapeze Method Individual Suspension Method 2. Lift the tube section and suspend it into place. When lifting, caution should be used to avoid damaging the assembly.
  • Page 12 3. Assembly the reflector onto the tube section. Leave 3” space between the tube flange and the reflector for later mounting of control box and draft inducer. 4. Place the flanges of the control end reflector flush with the end of the first reflector. Secure by sliding speed clips onto reflector edges.
  • Page 13 7. Slip the plastic vacuum air tube over the 1/4” O.D. aluminum tube end of the draft inducer and the air switch probe in the control box. The air tube should be shortened to prevent a downward sag which could allow condensation build-up in the tube.

  • Page 14: Gas Connections And Regulations

    ANGLE MOUNTED HEATERS ONLY 10. The heater can be mounted horizontally or up to an angle of 45º maximum from horizontal. When the heater is to be angle mounted adjacent to a sidewall, make sure the draft inducer assembly is on the lower side of the heater so that the control box access panel is easily accessible.
  • Page 15 10. After all gas connections have been made, make sure the heater and all gas outlets are turned off before the main gas supply is turned on slowly. Turn the gas supply pressure on and check for leaks. To check for leaks, check by one of the methods listed in Appendix D of the National Fuel Gas Code.

  • Page 16: Instructions For Pressure Test Gauge Connection

    12.0) INSTRUCTIONS FOR PRESSURE TEST GAUGE CONNECTION SUPPLY PRESSURE 1. The installer will provide a 1/8” N.P.T. tapped plug, accessible for test gauge connection immediately upstream of the gas supply connection to the heater. OUTLET GAS PRESSURE CHECK AND ADJUSTMENTS WHITE-RODGERS GAS VALVES Gauges that measure pressure in pounds per square inch are not accurate enough to measure or set the manifold pressure.
  • Page 17 GAS PRESSURE TABLE SUPPLY PRESSURE MANIFOLD PRESSURE GAS TYPE High Low (2-stage only) Minimum* Maximum Natural Gas 3.5” W.C. 1.4” W.C. 5” W.C. 14” W.C. Propane Gas 10.0” W.C. 4.0” W.C. 11” W.C. 14” W.C. *Minimum permissible gas supply pressure for purpose of input adjustment. Form 43471010 -16- Dec 2017...

  • Page 18: Electrical Connections

    13.0) ELECTRICAL CONNECTIONS 1. All electric wiring shall conform to the latest edition of the National Electrical Code (ANSI/NFPA No. 70), or the code legally authorized in the locality where the installation is made. 2. The unit must be electrically grounded in accordance with the National Electrical Code (ANSI/NFPA No. 70-latest edition).
  • Page 19 SINGLE STAGE CONTROLS - INTERNAL CONNECTION WIRING DIAGRAM SINGLE STAGE CONTROLS - SCHEMATIC WIRING DIAGRAM SINGLE STAGE CONTROLS - THERMOSTAT WIRING DIAGRAMS A. LINE VOLTAGE (120V) THERMOSTAT CONNECTIONS – SINGLE HEATER PER THERMOSTAT Form 43471010 -18- Dec 2017...
  • Page 20 B. LINE VOLTAGE (120V) THERMOSTAT CONNECTIONS – MULTIPLE HEATERS PER THERMOSTAT C. LOW VOLTAGE (24V) THERMOSTAT CONNECTIONS – SINGLE HEATER PER THERMOSTAT Order 24V Relay Kit (Part No. 43274000) for Low Voltage (24V) thermostat connection. D. LOW VOLTAGE (24V) THERMOSTAT CONNECTIONS – MULTIPLE HEATERS PER THERMOSTAT Form 43471010 Dec 2017 -19-...

  • Page 21: Two Stage (N7/L7) - Internal And Thermostat Connections

    13.2) TWO STAGE (N7/L7) – INTERNAL AND THERMOSTAT CONNECTIONS TWO STAGE CONTROLS - INTERNAL CONNECTION WIRING DIAGRAM Form 43471010 -20- Dec 2017...
  • Page 22 TWO STAGE CONTROLS - SCHEMATIC WIRING DIAGRAM TWO STAGE CONTROLS - THERMOSTAT WIRING DIAGRAMS A. LOW VOLTAGE (24V) THERMOSTAT CONNECTIONS – SINGLE HEATER PER THERMOSTAT Form 43471010 Dec 2017 -21-...
  • Page 23 B. LOW VOLTAGE (24V) THERMOSTAT CONNECTIONS – MULTIPLE HEATERS PER THERMOSTAT C. MANUAL SWITCH CONNECTIONS – SINGLE HEATER OPERATION PER DUAL MANUAL SWITCH Form 43471010 -22- Dec 2017...
  • Page 24 D. MANUAL SWITCH CONNECTIONS – MULTIPLE HEATERS OPERATION PER DUAL MANUAL SWITCH Form 43471010 Dec 2017 -23-...

  • Page 25: Venting

    14.0) VENTING This is a category lll appliance. A. BASIC FLUE VENTING — Venting must comply with the latest edition of the National Fuel Gas Code (ANSI Z223.1-latest edition) or the authority having jurisdiction. Other venting references are in the equipment volume of the ASHRAE Handbook.
  • Page 26 9. Single-wall metal pipe shall not originate in any unoccupied attic or concealed space and shall not pass through any attic, inside wall or concealed space, or through any floor. For the installation of a single-wall metal pipe through an exterior combustible wall, refer to latest edition of the National Fuel Gas Code or the authority having jurisdiction.
  • Page 27 SINGLE HEATER VENTING (HORIZONTAL THROUGH SIDEWALL) This heater, when horizontally vented, must be installed with the approved venting system. When venting the heater horizontally through a combustible outside sidewall, the same requirements listed previously for venting Vertical Through The Roof apply except as follows: 1.
  • Page 28  A Y-connector must be used to the common vent. 2. Material for connectors and Y-connectors should be constructed of galvanized sheet metal or other approved noncombustible corrosion resistant material as allowed by state or local codes. All common vent pipe should be insulated flue pipe or double-wall, Type B vent.
  • Page 29 Multiple Heater Venting (Connections into a Manifold) VENT SIZING TABLE — Multiple Heater Venting Number of Heaters SIR 25 4” 4” 4” 5” 5” SIR 35 4” 4” 5” 5” 6” SIR 45 4” 4” 5” 5” 6” COMMON VENT DIAMETER (If a size is not available use the next larger size.) THE ABOVE ILLUSTRATIONS AND TABLE OF VENT SIZES FOR COMMON VENTING OF MULTIPLE HEATERS ARE IN ACCORDANCE WITH THE NATIONAL FUEL GAS CODE ANSI Z223.1-LATEST EDITION, NFPA 54-LATEST EDITION, EQUIPMENT...

  • Page 30: Air For Combustion

    15.0) AIR FOR COMBUSTION If indoor combustion air is to be supplied for a tightly enclosed area, one square inch of free area opening shall be provided below the heater for each 1,000 Btu/hr per hour of heater input. When outside air is used, the opening below the heater shall be one square inch of free area for each 4,000 Btu/hr of heater input.
  • Page 31 Form 43471010 -30- Dec 2017...

  • Page 32: Lighting And Shutdown Instructions

    16.0) LIGHTING AND SHUTDOWN INSTRUCTIONS 1. Turn on the gas and electrical supply. 2. Set the thermostat to call for heat. The blower motor will energize. 3. Ignition should occur after the 30-second air pre-purge. 4. If ignition fails, the unit will spark for approximately 21 seconds and go into safety lockout. Turn the thermostat (power) off for 60 seconds to take the system out of lockout.

  • Page 33: Sequence Of Operation - Two Stage (N7/L7)

    SEQUENCE OF OPERATION – TWO STAGE (N7/L7) 17.1) The chart below shows the sequence of operation for the normal operating cycle for a two stage heater (N7/L7). .If the flame is not sensed during sequence T3 or T4, then the burner will automatically begin ignition as in sequence T2.

  • Page 34: Control Component Location

    18.0) CONTROL COMPONENT LOCATION NOTE: Access panel only opens to 90. Form 43471010 Dec 2017 -33-...

  • Page 35: Cleaning And Annual Maintenance

    19.0) CLEANING AND ANNUAL MAINTENANCE This heater must be cleaned and serviced annually by a qualified contractor before the start of each heating season and at any time excessive accumulation of dust and dirt is observed. Maximum heating efficiency and clean combustion will be maintained by keeping the heater clean.

  • Page 36: Troubleshooting Guide - Single Stage (N5/L5)

    20.0) TROUBLESHOOTING GUIDE – SINGLE STAGE (N5/L5) Form 43471010 Dec 2017 -35-...
  • Page 37 TROUBLESHOOTING GUIDE – SINGLE STAGE (CONTINUED) Form 43471010 -36- Dec 2017...
  • Page 38 TROUBLESHOOTING GUIDE – SINGLE STAGE (CONTINUED) Form 43471010 Dec 2017 -37-...

  • Page 39: Troubleshooting Guide - Two Stage (N7/L7)

    20.1) TROUBLESHOOTING GUIDE – TWO STAGE (N7/L7) Form 43471010 -38- Dec 2017...
  • Page 40 TROUBLESHOOTING GUIDE – TWO STAGE (CONTINUED) Form 43471010 Dec 2017 -39-...
  • Page 41 TROUBLESHOOTING GUIDE – TWO STAGE (CONTINUED) Form 43471010 -40- Dec 2017...
  • Page 42 TROUBLESHOOTING GUIDE – TWO STAGE (CONTINUED) Form 43471010 Dec 2017 -41-...

  • Page 43: Replacing Parts

    21.0) REPLACING PARTS Only use genuine Space-Ray replacement parts. Parts are available from the factory for replacement by a licensed person. Refer to the Replacement Parts Guide in Section 23.0) for all replacement parts. 21.1) REMOVAL OF SPARK ELECTRODE 1. Disconnect electrical supply and open access panel. 2.

  • Page 44: Removing Main Burner And Gas Valve

    21.2) REMOVING MAIN BURNER AND GAS VALVE The main burner can be inspected without removing the burner housing from the heat exchanger tube. 1. Disconnect electrical supply and gas connection at the restrainer nipple. 2. Open the access panel and disconnect the wires from gas valve. 3.

  • Page 45: Ignition System Checks

    21.4) IGNITION SYSTEM CHECKS TO CHECK IGNITION CABLE. a. Make sure that the ignition cable does not touch any metal surface. b. Make sure that connections to the stud terminal and the igniter/sensor are clean and tight. Make sure that the ignition cable provides good electrical continuity. TO CHECK IGNITION SYSTEM GROUNDING.

  • Page 46: Motor And Blower Wheel Check

    21.5) MOTOR AND BLOWER WHEEL CHECK If draft inducer motor fails to run: a. Check power supply to junction box. b. Check for loose or broken motor lead wire. Check to see that blower wheel turns freely and is not rubbing housing. Blower wheel may have worked loose from shaft and jammed against housing.

  • Page 47: Replacement Parts Guide

    23.0) REPLACEMENT PARTS GUIDE DRAFT INDUCER COMPONENTS Item No. Part No. Description Qty. 42737990 Kit. Draft Inducer Replacement 42928000 Kit, Motor Replacement 03721000 Motor 30347000 Motor Spacer (4 per motor) 42740000 Motor Plate 03723000 Blower Wheel 43221000 Draft Inducer Gasket 42744000 Sensing Tube, Draft Inducer 42742000...
  • Page 48 43344050 Label, Gas Connector Warning 43470000 Label, Clearance to Combustibles 42848040 Label, Nameplate (1-stage controls) 42848049 Label, Nameplate (2-stage controls) 42013010 Label, “SunStar” Logo 43470030 Label, Warning (residential) 42834000 Label, 120V Caution 42875000 Label, Warning 43470040 Label, Operating Instructions 43470050...
  • Page 49 Form 43471010 -48- Dec 2017...
  • Page 50 BODY COMPONENTS Item Part No. Description 02266010 Reflector Speed Clip 42769011 Reflector Clamp with screw (4 per heater) 42770000 “U” Bolt Clamp, 3” OD Tube (6 per heater) 02127110 “U” Bolt Hex Nut, 5/16-18 (2 per “U” Bolt) 42773000 Tube Support/Hanger Bracket, 18-1/2” (2 per heater) 42763080 Reflector, 8’...

  • Page 51: Warnings Card

    24.0) WARNINGS CARD Copies of this card may be ordered at no charge under part no. 43344980 for installation near the heater. Form 43471010 -50- Dec 2017...

This manual is also suitable for:

Sir25-n5Sir25-l5Sir35-n5Sir35-l5Sir45-n5Sir45-l5 ... Show all
