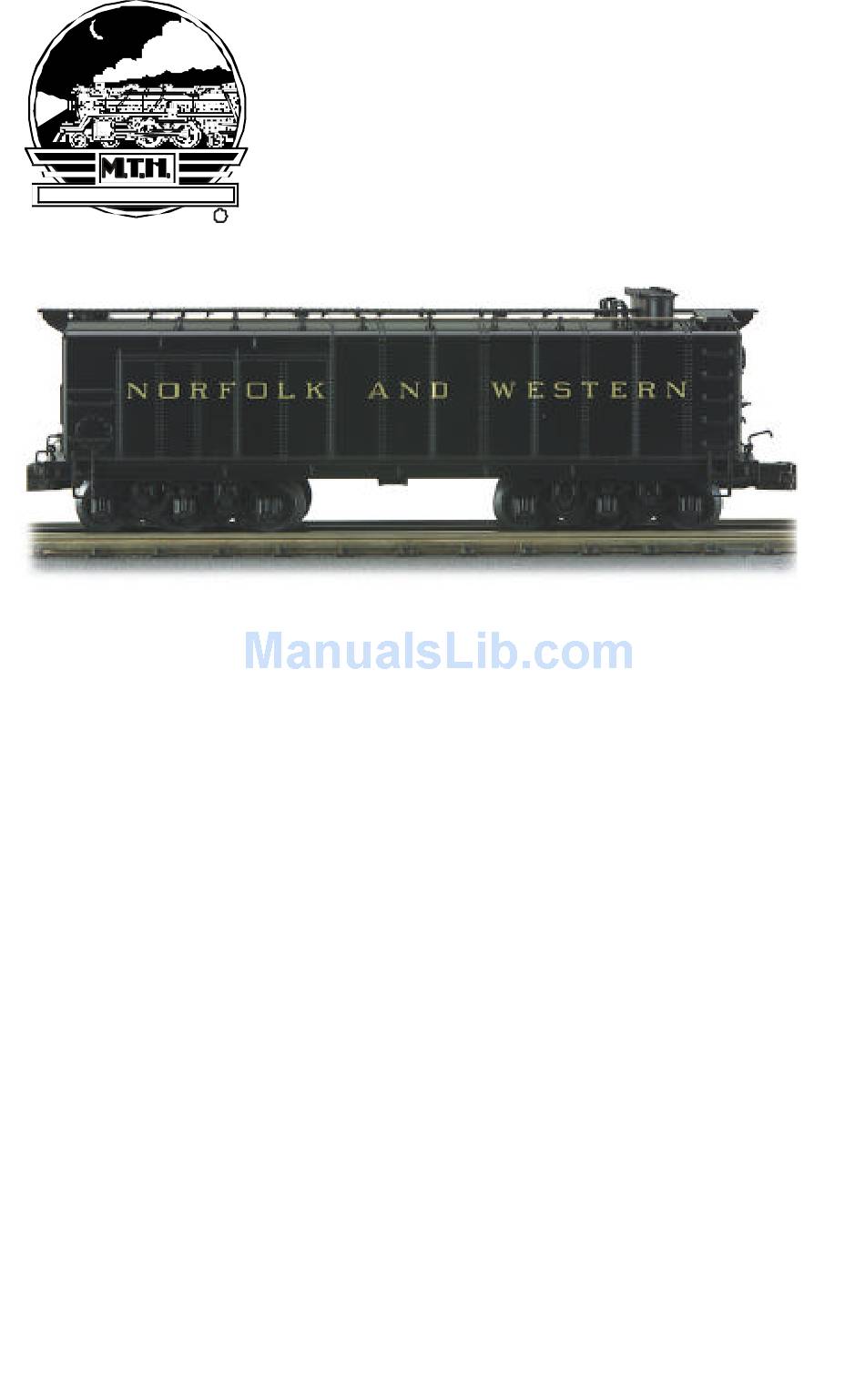

MTHTrains PREMIER AUXILIARY TENDER Operating Instructions

PREMIER AUXILIARY TENDER

OPERATING INSTRUCTIONS

E L E C T R I C

T R A I N S

Thank you for purchasing the MTH Electric Trains N&W Auxiliary Water

Tender. This die-cast O-Scale replica of the water tender makes a perfect

complement for any owner of a M.T.H. O-Scale N&W steam locomotive and

includes the necessary hardware to configure the Proto-Sound® and

Proto-Coupler® system found in the MTH N&W steam locomotives to

operate the water tender's own Proto-Coupler.

Table of Contents

Do you have a question about the PREMIER AUXILIARY TENDER and is the answer not in the manual?

Page 1: Operating Instructions
E L E C T R I C T R A I N S Thank you for purchasing the MTH Electric Trains N&W Auxiliary Water Tender. This die-cast O-Scale replica of the water tender makes a perfect complement for any owner of a M.T.H. O-Scale N&W steam locomotive and includes the necessary hardware to configure the Proto-Sound®...
Page 2 Configuring the N&W Tender to operate with the N&W Auxiliary Water Tender Proto-Coupler®. For the Auxiliary Water tender’s Proto-Coupler to function, it must be electrically connected to your N&W Coal Tender. To accomplish this, there is a preinstalled wire harness inside the Coal Tender that will connect the two tenders together electrically.
Page 3 • To remove the interior bulb, remove the shell by unscrewing the body mount screws as shown in Figure 2. • Once the shell has been removed from the chassis, gently pull the bulb to remove it from the lamp housing. Replacement bulbs are available directly from MTH Electric Trains.
Page 4 Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty For warranty repair, do not return your product to the place of purchase. Instead, follow the instructions below to obtain warranty service as our dealer network is not prepared to service the product under the terms of this warranty.
