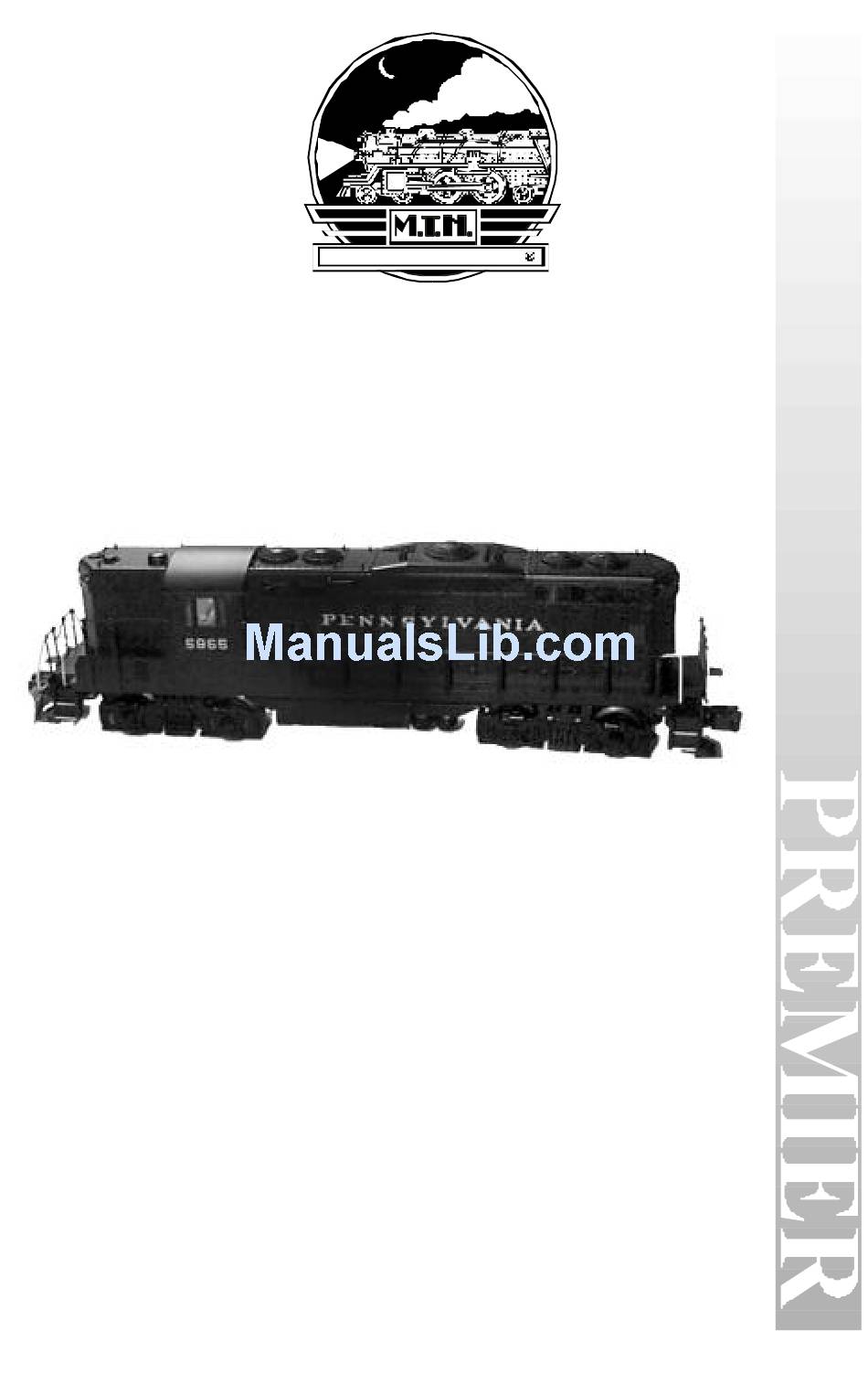

PREMIER GP 7/9 DIESEL ENGINE
OPERATING INSTRUCTIONS
Thank you for purchasing the Premier® production of General Motors' GP
7/9 diesel engine. The engine's durable ABS body and die-cast trucks are
traditionally sized for operation on most O-31 Gauge track. The engine
should operate for years with most compatible AC transformers (see the
chart on page 31 for a list of compatible transformers) and is completely
compatible with most 3-rail locomotives, rolling stock and accessories.
The locomotive is equipped with Proto sound® Digital Sound and train
control system which contains several deluxe features that are simple and
fun to operate. Each feature is described among the following pages which
should be read before the engine is operated. For those of you who can't
wait to get started, the Quick Start Basic Operating Instructions found on
Pages 3 and 4 should be read so that you understand the basics of the
operating system. Please note that some features are only found in the
Proto sound® models and are marked as such. Features not marked as
Proto sound® features are available in all models.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PREMIER GP 7/9 and is the answer not in the manual?

Questions and answers

Related Manuals for MTHTrains PREMIER GP 7/9

Summary of Contents for MTHTrains PREMIER GP 7/9

  • Page 1 E L E C T R I C T R A I N S PREMIER GP 7/9 DIESEL ENGINE OPERATING INSTRUCTIONS Thank you for purchasing the Premier® production of General Motors’ GP 7/9 diesel engine. The engine’s durable ABS body and die-cast trucks are traditionally sized for operation on most O-31 Gauge track.

  • Page 2: Table Of Contents

    Table Of Contents QUICK START - BASIC OPERATION PROTO SOUNDS® OPERATING INSTRUCTIONS Proto sound® ECRU® Reverse Unit Operation(All 3-Rail Models) Horn Operation Bell Operation ProtoCoupler™ Operation Squeaking Brake Sounds Tips On Using Squeaking Brakes Freight Yard Sounds (FYS) Tips On Using The Freight Yard Sounds Self-Charging Battery Backup System Replacing The Battery Proto sound®...

  • Page 3: Quick Start - Basic Operation

    QUICK START - BASIC OPERATION The GP 7/9 contains state-of-the art electronics with several built-in automatic features for incredibly realistic operation. Despite these advanced features, the GP 7/9 is easy to operate with any compatible standard AC transformer (see the compatibility chart on page 31). All models are controlled by a Proto sound®...

  • Page 4: Proto Sounds® Operating Instructions

    PROTO SOUNDS® OPERATING INSTRUCTIONS The MTH Proto sound® digital sound and train control system provides the operator with unprecedented realistic operation on your model railroad. In addition to actual diesel engine, CD-equivalent 16-bit digital sounds, you get the following features: ∗...

  • Page 5: Proto Sound® Ecru® Reverse Unit Operation(All 3-Rail Models)

    transformer and engine are operating correctly. This takes approximately 5 seconds during which you will hear the engine’s startup sounds begin. In order for ProtoSounds® to properly initiate the system check, do not advance the transformer throttle past 10 volts when you first enter RESET, wait for the diesel startup sounds to begin and then slowly turn the transformer throttle to the off position and then back on again to enter the forward phase.

  • Page 6: Protocoupler™ Operation

    pushing the button. If you don’t have a separate bell button, the bell can be controlled through your transformer’s whistle button whenever the engine is in NEUTRAL. The bell will never ring continuously in RESET (Remember NEUTRAL is the state between Forward and Reverse). Once the bell is turned on, it will continue to ring when the engine is cycled into forward or reverse until you press the bell button or re-enter NEUTRAL and turn the bell off with the whistle button.

  • Page 7: Squeaking Brake Sounds

    When the knuckle fires open you will hear the buzzing of the coil energizing and the sound of the air lines coming apart. It can best be described as a CHA-CHUSHHH sound. The coupler doesn’t have to be fired in NEUTRAL. Once the Lubricate Coupler Rivet coupler is armed it can be fired in Forward, Neutral or Reverse.

  • Page 8: Tips On Using Squeaking Brakes

    time the voltage is reduced from high to low. Some practice may be required to synchronize the playing of the brake sounds with the movement of the engine. It is not uncommon for the engine to stop before the brake sound is completed.

  • Page 9: Freight Yard Sounds (Fys)

    Operating Proto-Sound Freight Yard Sound Effects Freight Yard Sounds (FYS) Proto-Sound® is equipped with operator controlled Freight Yard Sounds, referred to as FYS. The FYS sequence is designed to simulate the arrival, unloading, loading and departure of a freight train in a freight yard. This easy-to-use feature allows you to play digitally recorded sounds of freight yard operations while your engine is parked in the Neutral State.
  • Page 10 To Play FYS, Stop Train Direction. This Can Be Done by Pressing the Bell DIRECTION Button or Cycling the Horn Whistle Transformer Handle. Direction At This Time the Train Will Stop in Neutral. In a Few Seconds, A Man Whistling Plays, Followed by a Background Noise.
  • Page 11 Activating Freight Yard Sounds (FYS) - Detailed Instructions Arming The Freight Yard Sounds Feature Listen For The Put Engine In Neutral, Before the Passenger Start Of The Bell Sound Forward or Reverse Station sounds can be heard, the feature must be activated.
  • Page 12 it is armed. You cannot interrupt the power twice to enter another direction and still have the FYS active.) You can now trigger the sounds to begin playing when you next enter Neutral. Triggering Freight Yard Sounds Once the FYS feature has been activated, it will be played the next time the engine enters neutral.
  • Page 13 Event 2: Interrupt the transformer throttle again to cycle the engine from neutral into reverse. In order to have the engine leave the Interrupt Throttle To Enter The Next Phase yard in the same direction it entered Proto-Sound® disables the motors in this reverse state to prevent the engine from running backwards.

  • Page 14: Tips On Using The Freight Yard Sounds

    TIPS ON USING FYS FEATURES FYS is a unique feature of Proto-Sound® that is completely controlled by the operator. You decide how, when or if you want to utilize the feature. By reviewing the following tips, you should find solutions or suggestions to the various operating scenarios you might encounter when using FYS.

  • Page 15: Self-Charging Battery Backup System

    SELF-CHARGING BATTERY BACKUP SYSTEM Proto-Sound® includes a self-charging battery backup system for improved performance at any speed. The battery ensures that power to the sound system will remain on during directional changes, while setting RESET options or when traveling over spots of dirty track and switches. The self-recharging battery backup system is automatically turned on or off.

  • Page 16: Protosound® Volume Adjustment

    PROTOSOUND® VOLUME ADJUSTMENT Your Proto-Sound® system has two types of volume adjustment. A manual turn knob on the bottom of the chassis (See Fig. 13 below) allows you to control all the sounds in the system and a remote control “RESET" option (Option # 6) allows you to control the volume level of the engine chuff sounds remotely from the transformer.

  • Page 17: Operating And Programming Proto-Sound® Features

    Operating & Programming Proto-Sound® Programmable Features As mentioned in the Basic Operating section, the engine is controlled by an electronic DCRU® reverse unit that contains the standard forward-neutral-reverse states found on most reverse units. However, when power is first applied to the track, the reverse unit begins in RESET, similar to a neutral state.

  • Page 18: Entering Reset Options

    USING RESET TO PROGRAM PROTO-SOUND® Proto-Sound® is equipped with several programmable features which are accessed in the RESET state by moving the transformer throttle up and down between full voltage and low voltage (8 volts) without shutting the transformer off completely. Each time this is done you advance, one feature at a time, through the available options.

  • Page 19: Setting The Engine Volume

    Remotely Adjusting The Engine Volume - Reset Feature 6 – (1 Clank, 1 Clink) Reset Feature 6 allows you to change the volume setting of the chuff sounds without affecting the volume of other sounds, such as whistle, bell, enhanced neutral sounds, etc. To use, cycle to Reset 6 and press the Whistle button.

  • Page 20: Programming For Horn In Neutral Operation

    Programming For Horn In Neutral Operation Reset Feature 25 -(5 Clanks) Reset Feature 25 allows you to operate the Horn while the engine is in the Neutral state. When ON, pressing the Horn/Whistle button while in Neutral, with 10V AC or less on the track, will cause the Horn recording to sound.

  • Page 21: Programming For Fys Operation

    Programming FYS Operation Reset Feature 28-(5 Clanks, 3 Clinks) Reset Feature 28 allows you to turn the operation of the FYS sequence on or off. When OFF, the FYS will not activate. To use, cycle to Reset 28 and press the Whistle button. The engine will play a series of bells. This indicates the current setting.

  • Page 22: Resetting All Proto Sound® Options To Factory Defaults

    Resetting All Proto-Sound® Options To Factory Defaults Reset 18-(3 Clanks, 3 Clinks) Reset 18 is the most powerful of the Reset features available. Using Reset 18 allows you to override all changes in programming and return all Resets to the original, out of the box settings. To use, cycle to Reset 18 and press the Whistle button.

  • Page 23: Oil & Lubrication Instructions

    OIL & LUBRICATION INSTRUCTIONS In order for the engine to perform correctly and quietly, it is important that the chassis be lubricated before operation. Lubrication should include all truck block bushings and pickup rollers to prevent them from squeaking. Use light household oil and follow the lubrication points marked “L" in Fig. 6 below.

  • Page 24: Traction Tire Replacement Instructions

    (in the truck block) with grease. Reassemble the truck and motor, being careful not to pinch the pickup and ground wires between the truck block and motor mount. Repeat the procedure for the other motor and truck and then reassemble the chassis to the body. When reassembling the chassis and body, be very careful that the lighting wire harnesses are not caught between the body and chassis as this can lead to a short which may damage the electronic circuit boards beyond repair.

  • Page 25: Light Bulb Removal & Replacement

    Once the new tire(s) are in place, reassemble the truck sides to the truck blocks. Replacement tires are available directly from MTH Electric Trains. HEADLIGHT REPLACEMENT The GP 7/9 locomotive’s headlights are controlled by constant voltage circuits inside the locomotive body.

  • Page 26: Trouble Shooting Protosound® Problems

    TROUBLE SHOOTING PROTOSOUND® PROBLEMS Although ProtoSound® has been designed and engineered for ease of use, some questions may arise during initial operation. The following table should answer most questions. If you find that your problem can’t be resolved with this manual, contact MTH ProtoSound® Electronics (7020 Columbia Gateway Drive, Columbia, MD 21046, 410-381-2580) for additional assistance.
  • Page 27 COUPLER PROBLEMS REMEDY The power required to fire the coupler open when the engine is on the “Fly” may be greater than the ProtoSound system is capable of providing. As a result, you may experience times when the coupler The ProtoCoupler won’t let the engine uncouple on the won’t fire open.
  • Page 28 BATTERY PROBLEMS REMEDY I get no sounds when the engine shifts between the The battery may be dead or needs charging. See the direction states. Battery Backup section for more information. After I turn off my transformer, my engine continues to ProtoSounds continues to sound for approximately 10 make sounds before quitting with a ding of its bell.
  • Page 29 FYS PROBLEMS REMEDY The power was not turned back on once the engine enter the neutral state thus disabling FYS.The The FYS feature does not begin even after stopping transformer throttle was interrupted too quickly in the engine and hearing the brake sounds. neutral thus disabling FYS.

  • Page 30: Protosound Reset Feature Chart

    PROTOSOUND RESET FEATURE CHART The following chart lists the available features found in your ProtoSound® equipped locomotive. The default settings for each feature as well as the operation sequence of the feature are listed in separate columns. You can reset all features to their original factory settings by accessing Feature 18 in RESET and press and hold the transformer whistle button until you hear a soft, warbled bell sound.

  • Page 31: Transformer Wiring Chart

    TRANSFORMER WIRING CHART ProtoSounds® is designed to work with any standard AC transformer that uses a “Pure Sine-Wave" format. The chart below lists the many Lionel® compatible transformers, such as the Lionel KW or ZW models. In addition, the chart details how the terminals on these compatible transformers should be attached to your layout.

  • Page 32: Exploded Views And Parts List

    GP-7/9 Diesel Engine P a r t s Name and Number Part # Name and Number Part # Shell ( PRR )( # 5865 ) FC-2100204 Number board ( #1555 ) FG-2100052 Shell ( PRR )( # 5872 ) FC-2100205 ( right rear/left front ) Shell ( PRR )( # 8571 ) FC-2100206...
  • Page 33 Premier GP-7/9 Operating Manual...
  • Page 34 GP-7/9 Diesel Engine P a r t s Name and Number Part # Name and Number Part # 24.) Screw IA-0000003 69.) Insulator BD-0000015 25.) Handrail (front & rear) FC-2150012 70.) Traction tires DE-0000018 ( Brunswick green & yellow) 71.) Nut IC-0000005 25.) Handrail (front &...

  • Page 35: O-31 Operation

    O-31 OPERATION While the MTH GP 7/9 diesel is more than capable of operating on O-31 curves and switches, you may find that certain light freight cars are prone to derailing when being pulled or pushed by the MTH F-3 through O-31 switches.

  • Page 36: Service And Warranty Information

    This warranty gives you specific legal rights and you may have other rights which vary from state to state. ProtoSounds® is a trademark of MTH Electric Trains. DCRU® is a registered copyright of QS Industries, Inc. Lionel® and Railsound® are registered trademarks of Lionel L.L.C.
