Compatibility
This engine will operate on any traditional
O-42 Gauge track system, including
M.T.H.'s RealTrax
traditional tubular track. It is also compatible
with most standard AC transformers. (See
page 21 for a complete list of compatible
transformers and wiring instructions.)
PLEASE READ BEFORE USE AND SAVE

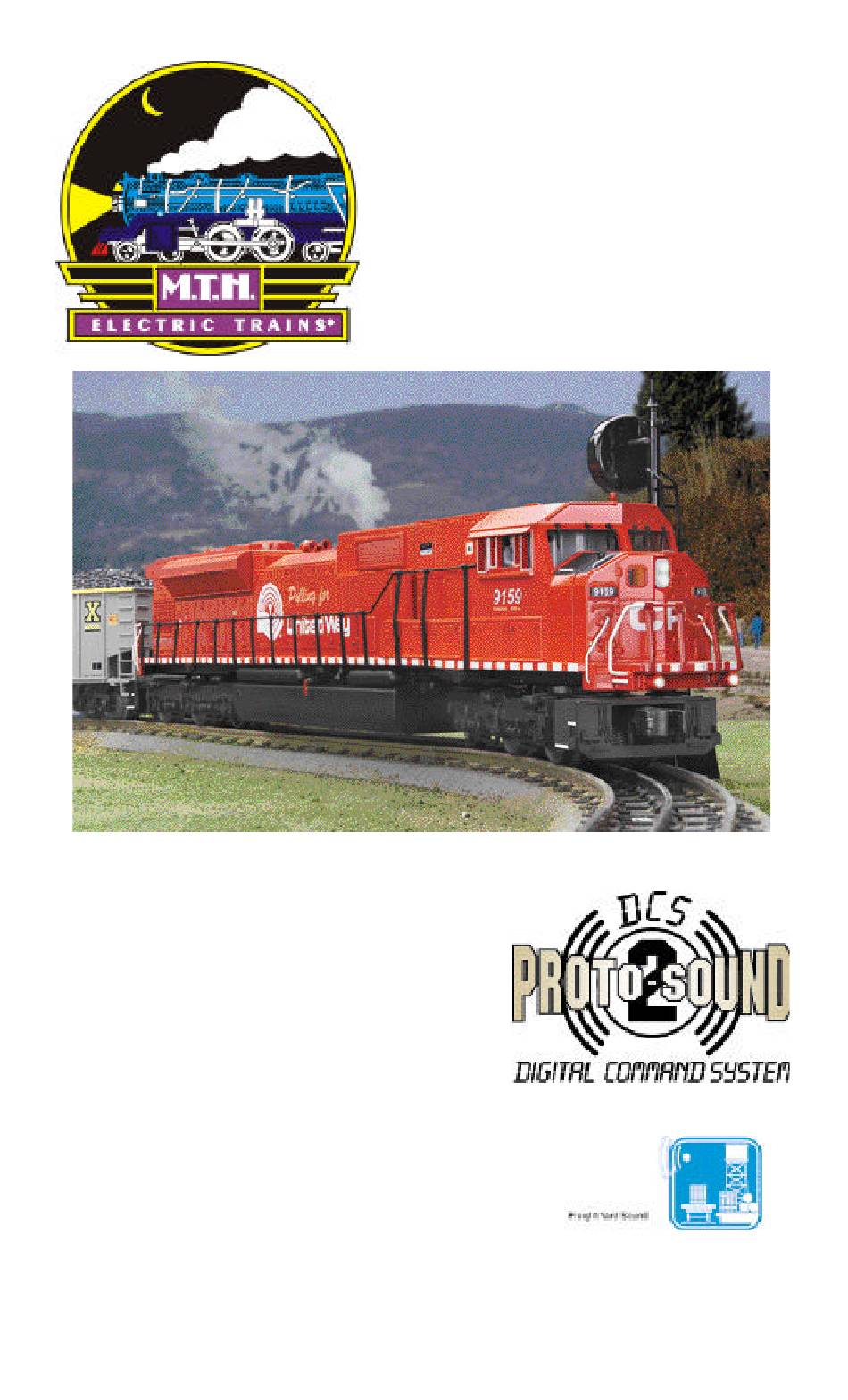

Premier
SD80/90 Diesel
Locomotive
OPERATOR'S MANUAL
®
™
or ScaleTrax
or
Advertisement
Table of Contents
Related Manuals for MTHTrains Premier SD80 Diesel Locomotive
Summary of Contents for MTHTrains Premier SD80 Diesel Locomotive
- Page 1 Premier SD80/90 Diesel Locomotive OPERATOR’S MANUAL Compatibility This engine will operate on any traditional O-42 Gauge track system, including ® ™ M.T.H.’s RealTrax or ScaleTrax traditional tubular track. It is also compatible with most standard AC transformers. (See page 21 for a complete list of compatible transformers and wiring instructions.) PLEASE READ BEFORE USE AND SAVE...
-
Page 2: Table Of Contents
Table of Contents Set Up Checklist....................3 Lubrication.....................3 Priming The Smoke Unit............... 3 Checking The Battery................4 Basic Operation....................5 Activating Features................5 Proto-Sound 2.0 Operating Instructions............7 Activating Proto-Sound 2.0 Conventional Mode Features....7 Freight Yard Sounds (FYS)..............8 Proto-Coupler® Operation..............9 Speed Control.................. -
Page 3: Set Up Checklist
Set Up Checklist • Lubricate the locomotive • Prime the smoke unit • Check to see whether the battery needs to be charged for full sound effects • Apply power to run as described in the Basic Operating Section of this manual Lubrication DO NOT OVER OIL... -
Page 4: Checking The Battery
Running the engine without a primed smoke unit may cause damage Add Smoke Fluid Smoke Unit ON/OFF Switch Figure 2: Adding Smoke Fluid Figure 3: Smoke Unit Switch Location Checking The Battery You may find, if your locomotive was built several months before you set it up, that the rechargeable battery has run down and needs to be charged before operating. -
Page 5: Basic Operation
Basic Operation The Throttle knob controls how fast your train will travel. Turn the throttle knob up ½-way, until the engine and caboose lights shine bright. Put the engine into motion by pressing the Direction button on your transformer once. (hold it for approximately 1 second) If the engine does not begin to move as soon as you firmly press the Direction button, you may not have sent enough voltage to the track to make the train move. - Page 6 Manual Volume Control To adjust the volume of all sounds made by this engine, turn the master volume control knob located next to the fuel tank clockwise to increase the volume and counter-clockwise to decrease the volume. Proto-Sound 2.0 Volume Adjustment Knob Figure 6: Manual Volume Adjustment Knob Premier SD80/90 Diesel Locomotive...
-
Page 7: Proto-Sound 2.0 Operating Instructions
Proto-Sound 2.0 Operating Instructions This manual contains the operating instructions for Proto-Sound 2.0 in conventional mode only. Instructions for accessing DCS command mode features accompany the DCS Remote Control System equipment. Activating Proto-Sound 2.0 Conventional Mode Features Proto-Sound 2.0 features are activated by sequences of Bell and Horn button pushes described below. -
Page 8: Freight Yard Sounds (Fys)
Freight Yard Sounds (FYS) Your engine is equipped with a sound package of freight yard sounds that you can play when you pull into a yard. Each sequence described below will play as long as it is left on, randomly generating sounds, but be sure to allow approximately 30 seconds between the button pushes described below to allow the FYS sufficient time to run through each sequence. -
Page 9: Proto-Coupler® Operation
Tips on Using FYS • You can terminate FYS at any time by turning off power to the track for 15 seconds. • You do not have to be in Forward to use FYS. At the conclusion of the full sequence, the train will pull away from the station in whatever direction you were going when you activated the feature. -
Page 10: Speed Control
Front Coupler: To fire the front coupler (if your engine has one), quickly tap the Bell button once followed by four quick taps of the Horn button, allowing approximately ½ second to lapse between each quick button press. The sound of the liftbar and air line depletion will play, and the knuckle will be released. -
Page 11: Locking Locomotive Into A Direction
Locking Locomotive Into A Direction You can lock your engine into a direction (forward, neutral, or reverse) so that it will not change directions. To do this, put the engine into the direction you want (or into neutral to lock it into neutral), run it at a very slow crawl (as slowly as it will move without halting), and quickly but firmly tap the Horn button once followed by three quick taps of the Bell button, allowing approximately ½... -
Page 12: Maintenance
Maintenance Lubricating and Greasing Instructions The engine should be well oiled and greased in order to run properly. Regularly lubricate all axles and linkage components and pickup rollers to prevent squeaking. Use light household oil, such as that found in M.T.H.'s maintenance kit. -
Page 13: Cleaning The Wheels, Tires And Track
5. After repeating the procedure for the other motor, reassmble the chassis and body, being careful that the wire harnesses are not caught between the chassis and body and reinstall the chassis screws. Lubricate the outside truck block Grease Idler Gear (G) idler and drive gears with grease. -
Page 14: Traction Tire Replacement Instructions
Traction Tire Replacement Instructions Your locomotive is equipped with two neoprene rubber traction tires on each powered truck block. While these tires are extremely durable, you may need to replace them at some point. First, remove the truck sides from the truck block. To do this, turn your engine upside down. -
Page 15: Headlight Replacement Instructions
Headlight Replacement Instructions The locomotive’s headlight is controlled by a constant voltage circuit in the engine. The headlight is easy to remove and replace when it burns out. The bulb has a quick disconnect plug that attaches the bulb harness to a light circuit. Replacement bulbs are available directly from the M.T.H. -
Page 16: Protosmoke® Unit Operation
• Leave the engine in neutral with track voltage at 10-12 volts for 6-7 hours so the battery can fully recharge (if your engine has a smoke unit, be sure it is turned off). • Use M.T.H.'s battery recharger (sold separately) that plugs into a wall outlet and a special port under the engine to recharge the Battery Charger Port... - Page 17 harmless smoke. The smoke is then forced out of the stack by a small electric fan. Smoke volume is controlled by the Proto-Sound 2.0 system. With a few easy maintenance steps, you should enjoy trouble-free smoke unit operation for years. When preparing to run this engine, add 15-20 drops of smoke fluid through the smokestack (see Fig.
-
Page 18: Troubleshooting Proto-Sound® 2.0 Problems
Troubleshooting Proto-Sound® 2.0 Problems Although Proto-Sound 2.0 has been designed and engineered for ease of use, you may have some questions during initial operation. The following table should answer most questions. If your problem cannot be resolved with this table, contact M.T.H. for assistance (telephone: 410-381-2580;... - Page 19 C ab Chatter Remedy Sometimes the Cab Chatter sounds Cab Chatter plays only in neutral at don’t play. random intervals. Lock-out Remedy I can’t get the engine to run after I The engine is locked into the neutral power up the transformer. It sits still position.
- Page 20 Remedy Once in FYS, the engine doesn’t go So that FYS effects can be as realistic into reverse. as possible, Proto-Sound 2.0 disables the reversing unit whenever FYS is enabled. This way the engine remains still at its stop as the operator cycles through the FYS sequences.
-
Page 21: Transformer Compatibility And Wiring Chart
Transformer Compatibility and Wiring Chart Proto-Sound 2.0 is designed to work with most standard AC transformers. The chart below lists the many compatible transformers. Note that many of the operational commands described in these instructions require a bell button, so if your transformer does not have its own bell button, you should consider adding one to get the full benefit of the system. -
Page 22: Additional Features Accessible Of Dcs Remote Control System
Additional Features Accessible With The DCS Remote Control System (Additional equipment required) While conventional mode operation of a Proto-Sound 2.0 engine yields wonderfully realistic sound and several train control features, command mode operation allows the user to access a world of command functions never before accessible to O Gauge railroaders. -
Page 23: Service & Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty For warranty repair, follow the instructions below to obtain warranty service. First, e-mail, write, call or fax an Authorized M.T.H. Service Center in your area or M.T.H. Electric Trains to obtain Repair Authorization.
