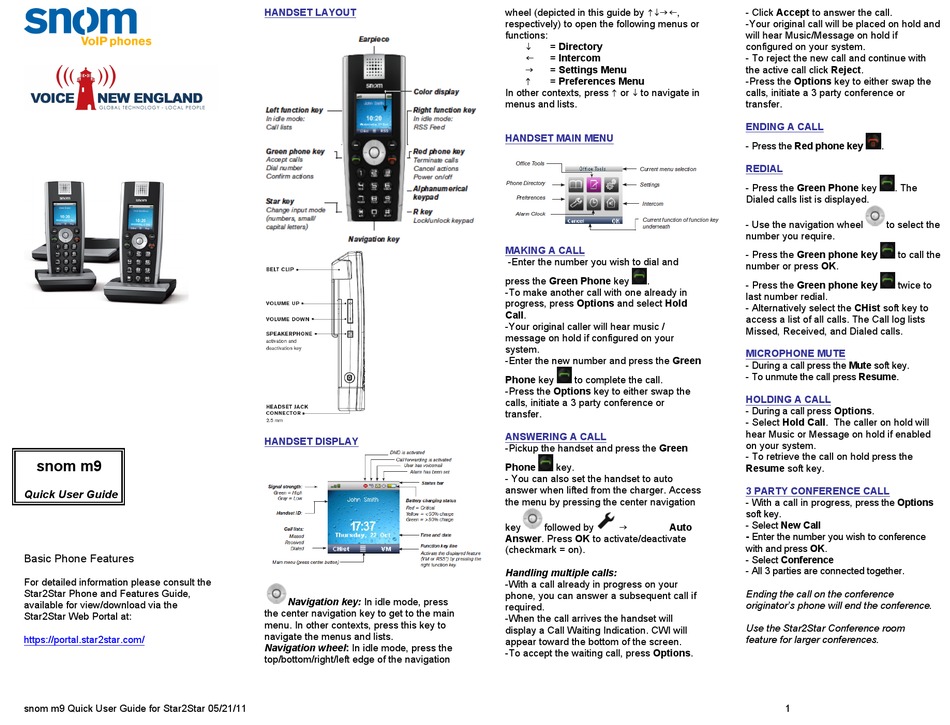

Snom M9 Quick User Manual

snom m9
Quick User Guide
Basic Phone Features
For detailed information please consult the
Star2Star Phone and Features Guide,
available for view/download via the
Star2Star Web Portal at:
https://portal.star2star.com/
snom m9 Quick User Guide for Star2Star 05/21/11
HANDSET LAYOUT
HANDSET DISPLAY
Navigation key: In idle mode, press
the center navigation key to get to the main
menu. In other contexts, press this key to
navigate the menus and lists.
Navigation wheel: In idle mode, press the
top/bottom/right/left edge of the navigation
wheel (depicted in this guide by higf,
respectively) to open the following menus or
functions:
i = Directory
f = Intercom
g
= Settings Menu
h = Preferences Menu
In other contexts, press h or i to navigate in
menus and lists.
HANDSET MAIN MENU
MAKING A CALL
-Enter the number you wish to dial and
press the Green Phone key .
-To make another call with one already in
progress, press Options and select Hold
Call.
-Your original caller will hear music /
message on hold if configured on your
system.
-Enter the new number and press the Green
Phone key to complete the call.
-Press the Options key to either swap the
calls, initiate a 3 party conference or
transfer.
ANSWERING A CALL
-Pickup the handset and press the Green
Phone key.
- You can also set the handset to auto
answer when lifted from the charger. Access
the menu by pressing the center navigation
key followed by g Auto
Answer. Press OK to activate/deactivate
(checkmark = on).
Handling multiple calls:
-With a call already in progress on your
phone, you can answer a subsequent call if
required.
-When the call arrives the handset will
display a Call Waiting Indication. CWI will
appear toward the bottom of the screen.
-To accept the waiting call, press Options.
- Click Accept to answer the call.
-Your original call will be placed on hold and
will hear Music/Message on hold if
configured on your system.
- To reject the new call and continue with
the active call click Reject.
-Press the Options key to either swap the
calls, initiate a 3 party conference or
transfer.
ENDING A CALL
- Press the Red phone key .
REDIAL
- Press the Green Phone key . The
Dialed calls list is displayed.
- Use the navigation wheel to select the
number you require.
- Press the Green phone key to call the
number or press OK.
- Press the Green phone key twice to
last number redial.
- Alternatively select the CHist soft key to
access a list of all calls. The Call log lists
Missed, Received, and Dialed calls.
MICROPHONE MUTE
- During a call press the Mute soft key.
- To unmute the call press Resume.
HOLDING A CALL
- During a call press Options.
- Select Hold Call. The caller on hold will
hear Music or Message on hold if enabled
on your system.
- To retrieve the call on hold press the
Resume soft key.
3 PARTY CONFERENCE CALL
- With a call in progress, press the Options
soft key.
- Select New Call
- Enter the number you wish to conference
with and press OK.
- Select Conference
- All 3 parties are connected together.
Ending the call on the conference
originator's phone will end the conference.
Use the Star2Star Conference room
feature for larger conferences.
1
