Section 2
2.1 — Unpacking
• Remove all packaging material.
• Remove separate accessory box.
• Remove the generator from carton.
2.1.1 — Accessories
Check all contents. If any parts are missing or damaged, locate an
authorized dealer at 1-888-436-3722.
• Product Registration and Warranty Cards
• 1 - Owner's Manual
• 1 - Liter Oil SAE 10W-30
• 2 - Never-Flat Wheels
• 2 - Frame Feet
• 1 - Fuel Cylinder Retaining Strap
• 1 - Oil Funnel
• 1 - Hardware Bag (containing the following):
— 2-Rubber Feet
(A)
— 2-5/8" Axle Pins (B)
— 2-Cotter Pins (Hairpin) (C)
— 2-5/8" Flat Washers (D)
— Spark Plug Service Tool
2.2 — Assembly
The generator requires some assembly prior to using it. If problems
arise when assembling the generator, please call the Generator Help-
line at 1-888-436-3722.
2.2.1 — Assembling the Accessory Kit
The wheels are designed into the unit to greatly improve the portabil-
ity of the generator.
You will need the following tools to properly install the accessory kit.
• Needle Nose Pliers
• Ratchet and 8mm, 10mm, and 13mm sockets
• 12mm, 10mm, and 13mm box wrenches
The wheels are not intended for over-the-road use.
1. Refer to Figure 2-1 and install the Wheels as follows:
— Slide the Axle Pin through the Wheel, Wheel Bracket on the
frame and 5/8" Flat Washer.
— Insert the Cotter Pin through the Axle Pin to lock into place.
5,500 Watt LP Series Portable Generator
General Information
4-M8 Bolt (Long) (E)
—
2-M6 Bolts (Long) (F)
—
4-Hex Flanged M8 Nuts (G)
—
2-Hex Flanged M6 Nuts (H)
—
1- Cotter Pin (Strap)
—
NOTE:
2. Refer to Figure 2-2 and install the Frame Feet and Rubber Bum-
pers as shown.
— Slide the Rubber Bumper M6 Bolts through the Frame Foot,
Rubber Bumper. Then install the Locking Flange Nuts.
Tighten securely.
— Slide the Hex Head Bolts through the holes in the Frame Rail.
— Slide the Frame Foot onto the Hex Head Bolts then install the
Locking Flange Nuts. Tighten securely.

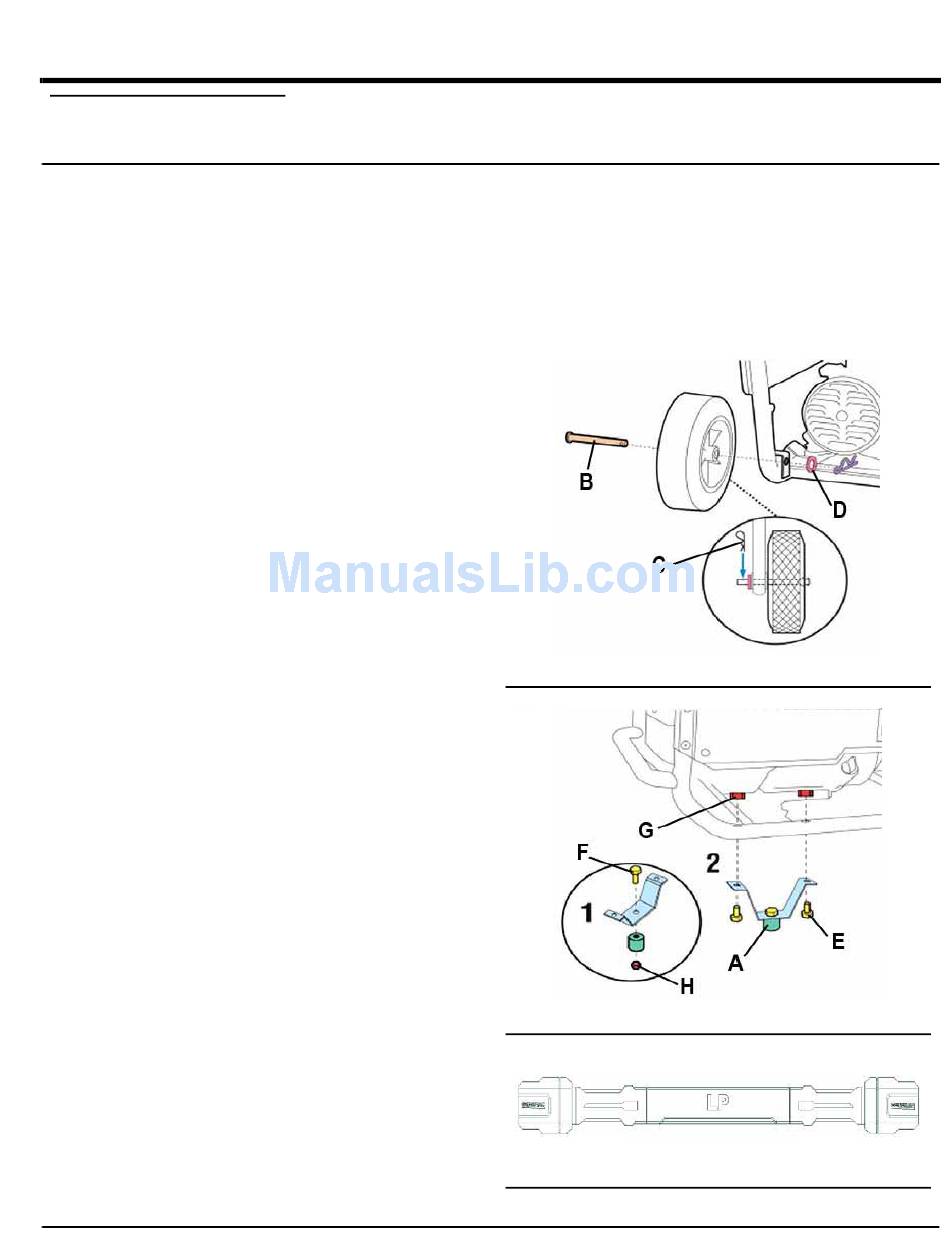

Figure 2-1: Wheel & Feet Assembly
Figure 2-2: Frame Feet and Rubber Bumpers
Figure 2-3: Fuel Cylinder Retaining Strap
