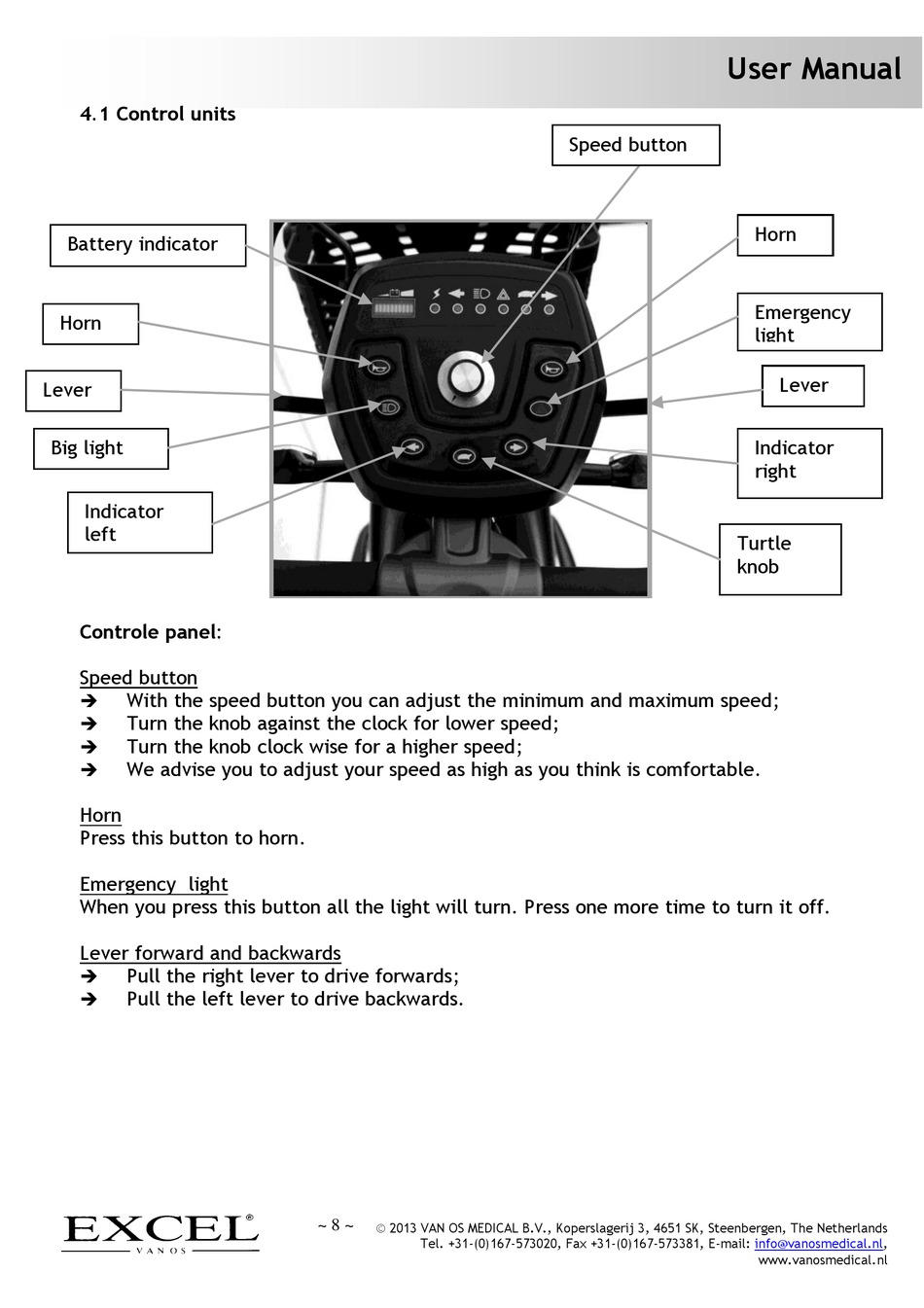

4.1 Control units

Battery indicator
Horn
Lever
Big light
Indicator
left
Controle panel:
Speed button
With the speed button you can adjust the minimum and maximum speed;

Turn the knob against the clock for lower speed;

Turn the knob clock wise for a higher speed;

We advise you to adjust your speed as high as you think is comfortable.

Horn
Press this button to horn.
Emergency light
When you press this button all the light will turn. Press one more time to turn it off.
Lever forward and backwards
Pull the right lever to drive forwards;

Pull the left lever to drive backwards.

~ 8 ~
© 2013 VAN OS MEDICAL B.V., Koperslagerij 3, 4651 SK, Steenbergen, The Netherlands
Tel. +31-(0)167-573020, Fax +31-(0)167-573381, E-mail: info@vanosmedical.nl,
User Manual
Speed button
Turtle
knob
Horn
Emergency
light
Lever
Indicator
right
