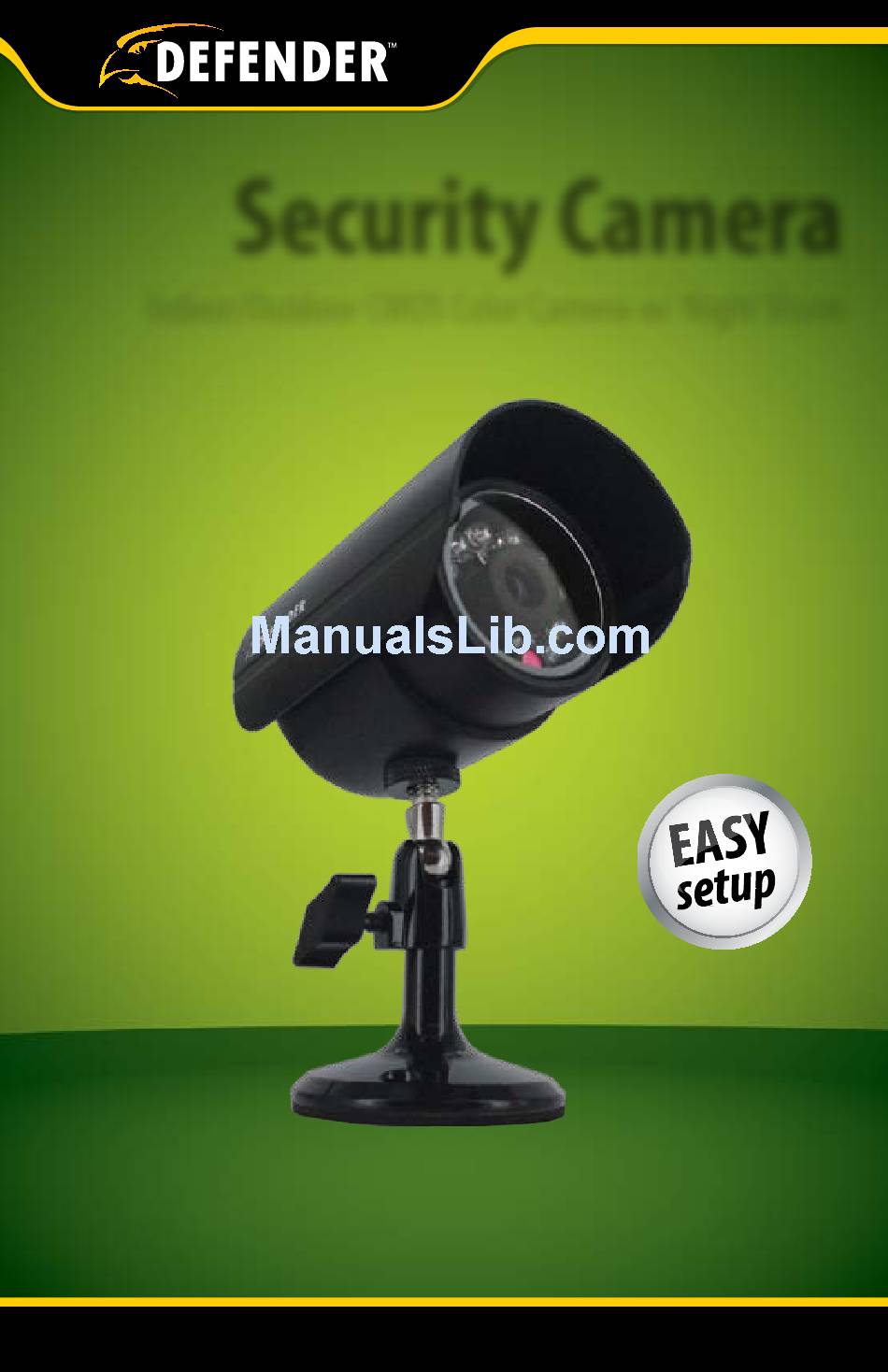

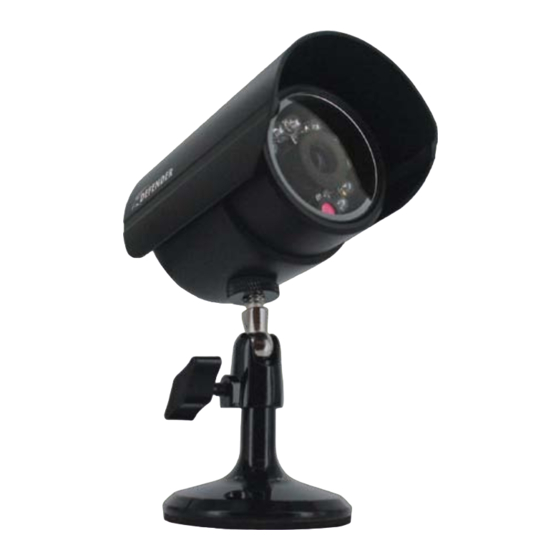

- Page 1 Security Camera Indoor/Outdoor CMOS Color Camera w/ Night Vision INSTRUCTION MANUAL V1.0 www.defender-usa.com Model#: SPARTAN5...
- Page 2 NEED HELP? DO NOT RETURN THIS PRODUCT TO THE STORE Please contact a DEFENDER customer support representative first regarding any additional information on product features, specifications or help with set-up. Please contact us via one of the methods below: Email: support@defender-usa.com...
- Page 3 Warranty Terms Defender's products are guaranteed for a period of one year from the date of purchase against defects in workmanship and materials. This warranty is limited to the repair, replacement or refund of the purchase price at Defender’s option.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Table of Contents WHAT IS INCLUDED ...................................1 FEATURES OF THE SPARTAN ................................1 CAMERA INSTALLATION ..................................2 MOUNTING THE CAMERA ................................2 CONNECTING THE CAMERA STEP BY STEP ............................2 TROUBLE SHOOTING ..................................3 SPECIFICATIONS....................................4 WHAT IS INCLUDED • BNC to RCA Connector •... -
Page 5: Camera Installation
SETUP CAMERA INSTALLATION • The camera should be installed between 8 and 13ft above the area to be monitored • Ensure there are no obstructions in the camera’s view, to maximize viewing area • Ensure that the sunshade is positioned to avoid glare and position camera away from direct sunlight •... -
Page 6: Troubleshooting
SETUP 5. Connect the 60ft video/power wire’s male RCA plug to the VIDEO IN port of your TV/ monitor/VCR/DVR. 6. If your VIDEO IN port is a BNC connection (common with DVR units), you will need to attach the BNC to RCA adapter before connecting the camera. -
Page 7: Specifications
SPECIFICATIONS Camera Type ........................Bullet Image Sensor .....................1/4" Color CMOS Resolution .........................400 TV Lines Outdoor Use ..........................Yes IP Rating ..........................IP55 Focal Length........................6.0mm Focus Type ..........................Fixed Night Vision ..........................Yes Number of IR LEDs (and Range) ................11, up to 15ft IR LED Control.................. - Page 8 NOTES AREA Customer Information Card Contact Name: Company: Address: Postal Code: Phone Number: Email: Model Number of Product: Serial Number of Product: Purchase Date: Place of Purchase: NOTE: We recommend that you keep a record of your purchase receipt with your manual for any future returns or support issues. Model # SP5...
- Page 9 DRILLING TEMPLATE To wall mount the camera, drill three holes using a 3/16" drill bit and the template below. Insert the supplied wall anchors into holes and secure camera to wall with supplied screws. DRILL HOLES IN THESE POSITIONS Model # SP5...
- Page 10 Defender does not endorse the use of any Defender products for illegal ac- tivities. Defender is not responsible or liable in any way shape or form for any damage, vandalism, theft or any other action that may occur while a Defender product is in use by the consumer.
