- Page 1 Security Camera Indoor/Outdoor CCD Security Camera w/ Night Vision INSTRUCTION MANUAL V1.0 www.defender-usa.com SP301-C...
- Page 2 NEED HELP? DO NOT RETURN THIS PRODUCT TO THE STORE Please contact a DEFENDER customer support representative first regarding any additional information on product features, specifications or help with set-up. Please contact us via one of the methods below: Email: support@defender-usa.com...
- Page 3 Canada L2H 1J9 Warranty Terms 1. Defender products are guaranteed for a period of one year from the date of purchase against defects in workmanship and materials. This warranty is limited to the repair, replacement or refund of the purchase price at Defender’s option.
-
Page 4: Table Of Contents

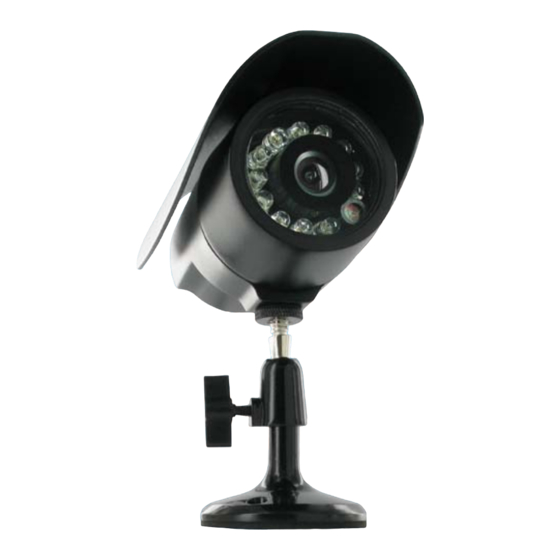

Night Vision CCD Color Security Stickers Video/Power Wire Camera FEATURES SP301-C Camera 1. Sun Shield: Helps prevent glare from bright lights 2. Infrared (IR): LEDs Allows the camera to see in the dark up to 15ft away. 3. CDS Sensor:... -
Page 5: Camera Installation
2. Match the two arrows on top of both connecting cables. 3. Plug the camera’s power supply into the power jack located on the 60ft video/power wire. 4. Plug the camera’s power adapter into an AC outlet or surge protected power bar. SP301-C... -
Page 6: Troubleshooting
• Cup your hands around the front of the camera and look at the LEDs. They should be glowing red. If they are not, check the power supply • LEDs need to reflect off of an object within range for the camera to display an image SP301-C... -
Page 7: Specifications
4 PIN DIN to RCA TV System NTSC Viewing Angle 60 Degrees Electronic Shutter 1/60 ~ 1/100000 sec Automatic Automatic Line Lock Iris Control gamma Correction >0.45 White Balance Automatic Sun Shield IR Cut Filter Housing Material Anodized Aluminum SP301-C... -
Page 8: Notes
Postal Code: Phone Number: Email: Model Number of Product: Serial Number of Product: Purchase Date: Place of Purchase: NOTE: We recommend that you keep a record of your purchase receipt with your manual for any future returns or support issues. SP301-C... -
Page 9: Drilling Template
DRILLINg TEMPLATE To wall mount the camera, drill three holes using a 3/16" drill bit and the template below. Insert the supplied wall anchors into holes and secure camera to wall with supplied screws. DRILL HOLES IN THESE POSITIONS SP301-C... - Page 10 Disclaimer Defender does not endorse the use of any Defender products for illegal activities. Defender is not respon- sible or liable in any way shape or form for any damage, vandalism, theft or any other action that may occur while a Defender product is in use by the consumer.
