Conceptual Diagram; Installation; Install The Terminal Services Software (Optional, But Must Be Done Once) - NComputing L-Series User Manual

•
512 MB RAM
•
60 GB hard disk drive
•
Ethernet switch or router
Do not use a notebook PC as the host. Notebooks use power-saving features and different technologies than a
typical desktop PC, and this causes power management and memory problems.

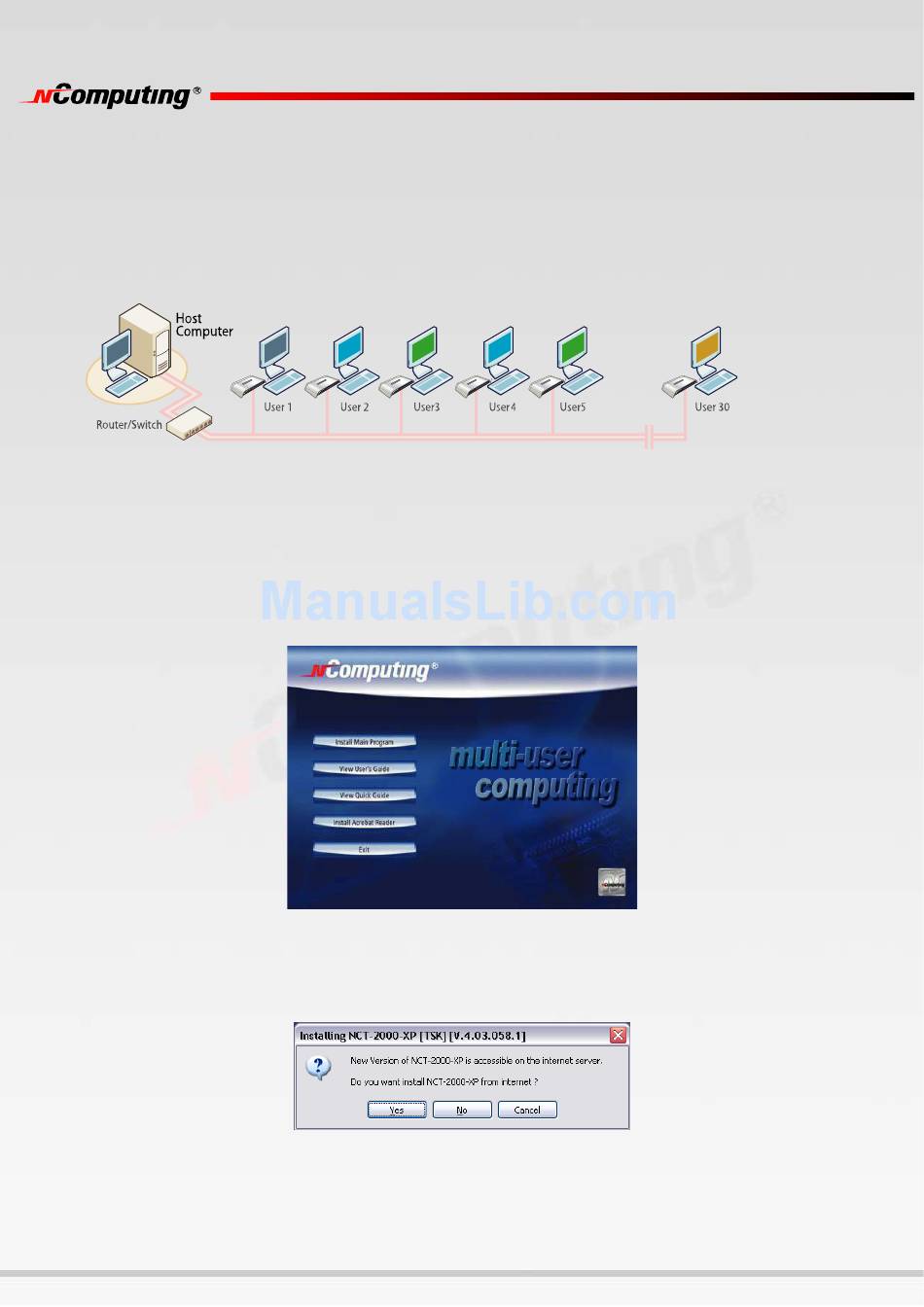

Conceptual Diagram

Installation

Install the terminal services software
Insert the Software Installation CD into the host PC's CD drive.
In most cases, a window will automatically appear after a few seconds with installation options. If it doesn't
appear after 2 minutes, go to "My Computer", open the CD drive's icon, and start the "Setup" application.
At the installation screen, click on the "Install Program" button.
Before the installation starts, the installation software attempts to connect to the Internet to compare the software
version on the CD with the latest software version on the NComputing server. If there is a later version on the
NComputing server, a prompt will appear to ask if you want to use the version on the CD or if you want to
install the latest version. It is recommended to install the latest version rather than use an older version on the
CD.
(optional, but must be done once)
7
