Raspberry Pi A User Manual page 100

84
P A R T I
C O N N E C T I N G T H E B O A R D

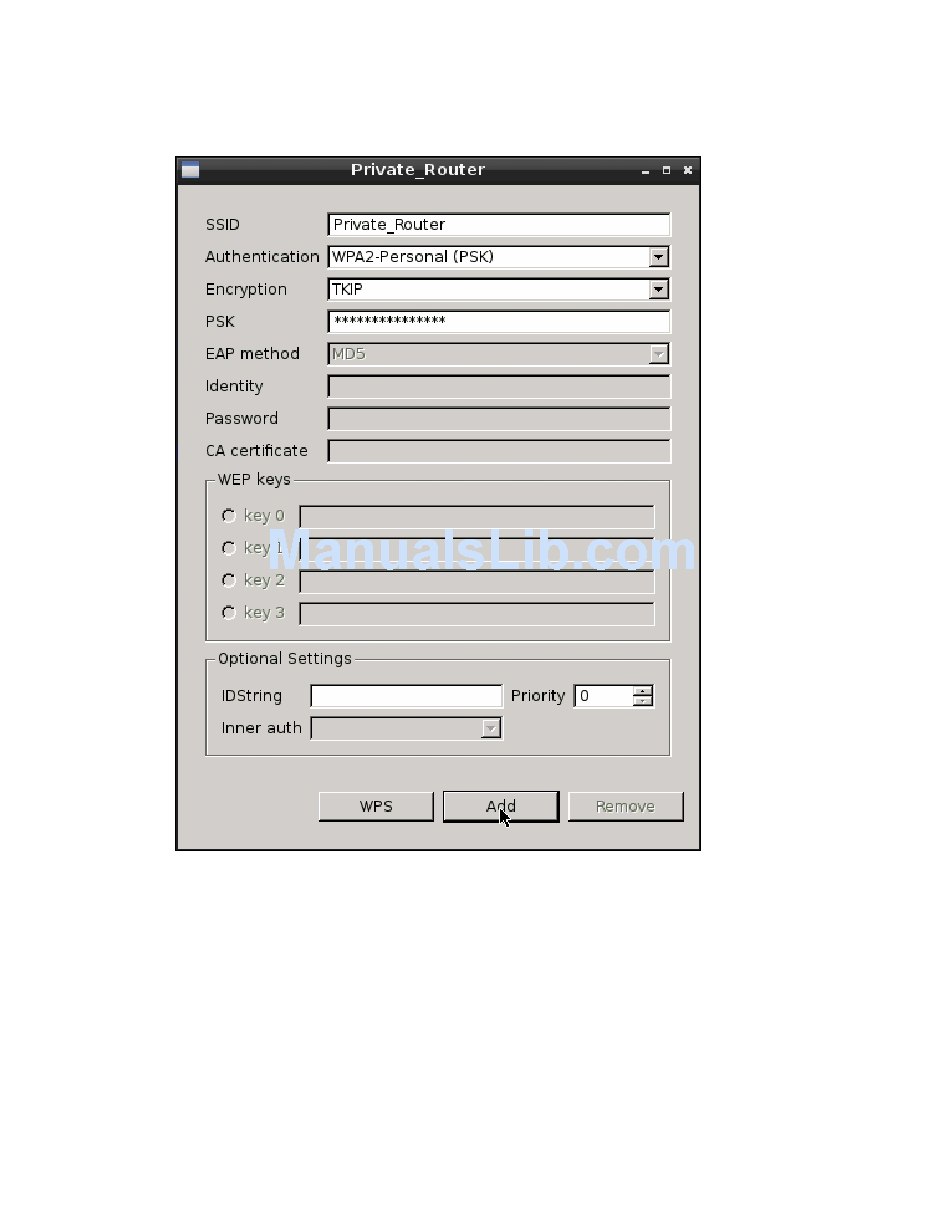

Figure 5-6:
Adding a
network to
wpa_gui
If your network includes a Wi-Fi Protected Setup (WPS) option, you can click the WPS button at the
bottom-left of the window to perform a one-click setup. Simply press the WPS button on your
router or access point, and then click the WPS button in to connect automatically.
wpa_gui
When you have filled in the details of your network, click Add. This will close the window and
return you to the main window—but now the Network drop-down should have
wpa_gui
an entry, named after your wireless access point. At this point, will automatically
wpa_gui
connect you to the wireless network and an IP address should appear at the bottom of the
screen (see Figure 5-7).
