D Connectors

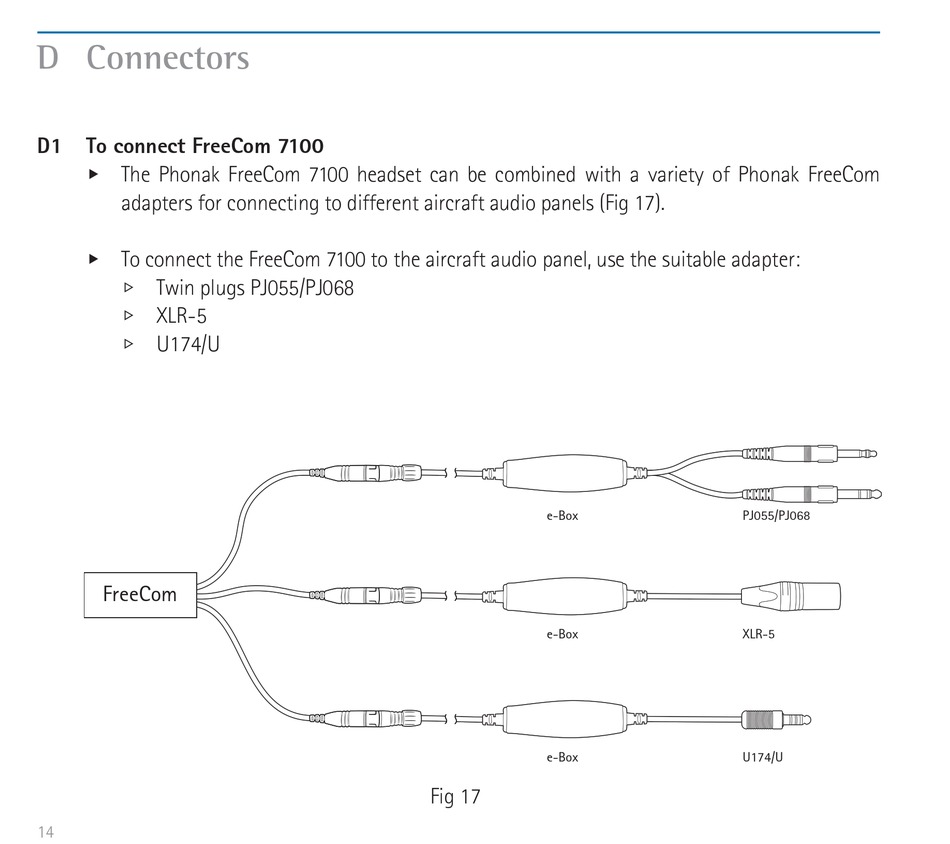

D1 To connect FreeCom 7100
u The Phonak FreeCom 7100 headset can be combined with a variety of Phonak FreeCom
adapters for connecting to different aircraft audio panels (Fig 17).
u To connect the FreeCom 7100 to the aircraft audio panel, use the suitable adapter:
U Twin plugs PJ055/PJ068
U XLR-5
U U174/U
FreeCom
14
e-Box
e-Box
e-Box
Fig 17
PJ055/PJ068
XLR-5
U174/U
