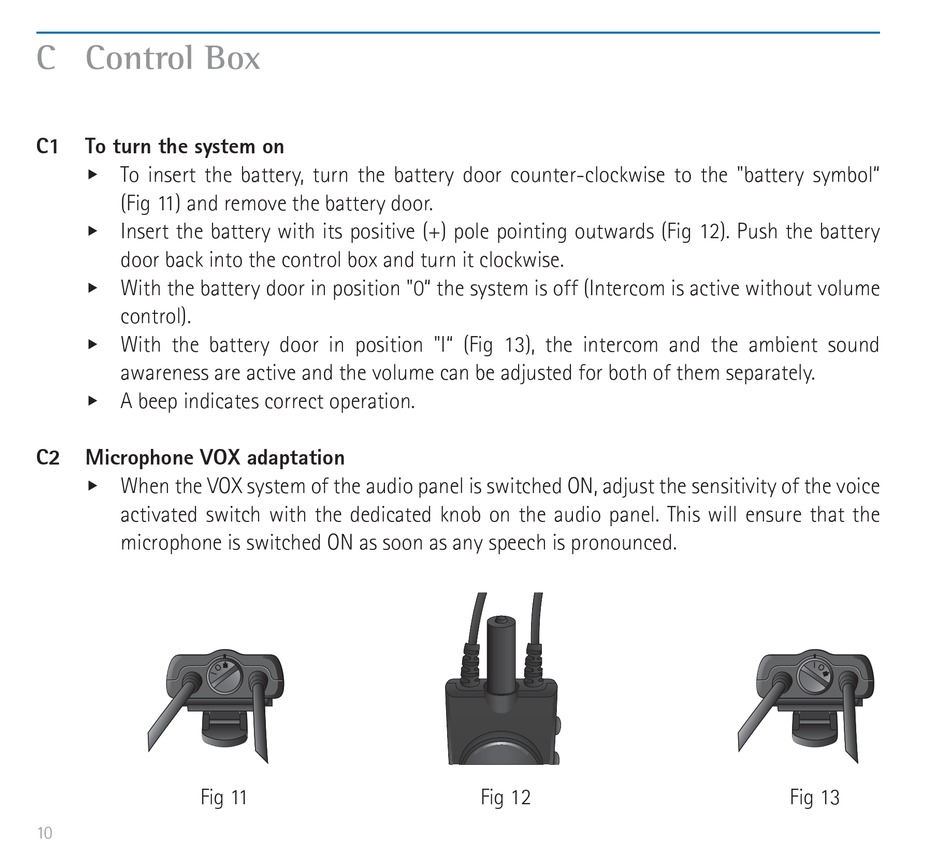

C Control Box

C1 To turn the system on
u To insert the battery, turn the battery door counter-clockwise to the "battery symbol"
(Fig 11) and remove the battery door.
u Insert the battery with its positive (+) pole pointing outwards (Fig 12). Push the battery
door back into the control box and turn it clockwise.
u With the battery door in position "0" the system is off (Intercom is active without volume
control).
u With the battery door in position "I" (Fig 13), the intercom and the ambient sound
awareness are active and the volume can be adjusted for both of them separately.
u A beep indicates correct operation.
C2 Microphone VOX adaptation
u When the VOX system of the audio panel is switched ON, adjust the sensitivity of the voice
activated switch with the dedicated knob on the audio panel. This will ensure that the
microphone is switched ON as soon as any speech is pronounced.
Fig 11
10
Fig 12 Fig 13
