- Page 1 FUZZYSCAN FAMILY Quick Start Guide...
-
Page 2: Getting Familiar With Your Fuzzyscan

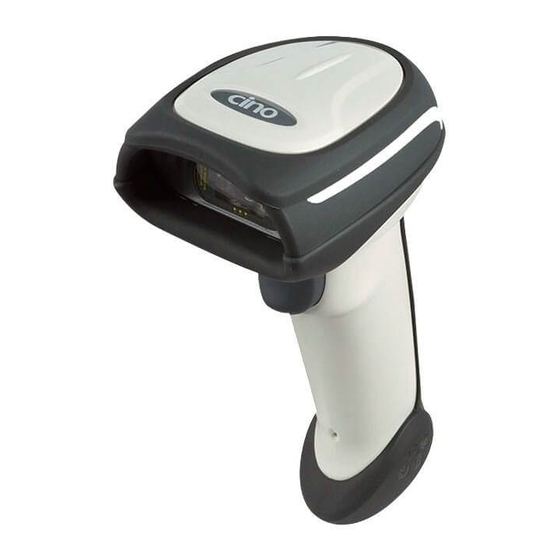

Getting Familiar with Your FuzzyScan Thank you for choosing Cino FuzzyScan Bar Code Scanner. All FuzzyScan scanners deliver world-class performance for a broad range of applications to unleash your productivity with ease. FuzzyScan family includes A series area imager, F series linear imager and L series laser imager. -
Page 3: Connecting To Your Host
Connecting to Your Host FuzzyScan scanners support USB, PS/2(DOS/V) Keyboard Wedge and RS-232 Serial interfaces. Please choose your desired interface cable, then plug it into the interface port of scanner and connect it to the desired port of your host. If you would like to remove the cable, please straighten one end of a paper clip then insert it into the cable release hole to pull out the cable. - Page 4 Using SmartStand SmartStand is specifically designed for hand-free applications to maximize user’s comfort and productivity. You can adjust the scanner holder to desired position for optimized scanning. Thanks to the Auto-sense design, the scanner is capable of switching between presentation scanning and hand-held scanning automatically while working with SmartStand.
-
Page 5: Operation Modes
Operation Modes area imager FuzzyScan family A series array imager supports various operation modes, including trigger, presentation, alternative, level, force, toggle, diagnostic, low power and multiple read modes. The details of each operation mode are listed below for reference. Trigger Mode When trigger mode is selected, the scanner goes into standby state after scanning the bar code. - Page 6 Force Mode When force mode is selected, the light source of the scanner is forced on for continued operation without having to press the trigger switch. This mode is convenient for high speed bar code reading. Toggle Mode When toggle mode is selected, you must press the trigger switch to turn on the light source of the scanner to start scanning operation.
- Page 7 Operation Modes linear & laser imager Both F series linear imager and L series laser imager of FuzzyScan family support various operation modes, including trigger, presentation, alternative, level, flash, force, toggle, diagnostic and low power modes. But please note that the laser aiming line of L series is not performed under force, flash, toggle or diagnostic mode to ensure the longer working life of laser imager.
- Page 8 Flash Mode When flash mode is selected, the scanner flashes the light source without having to press the trigger switch. If the scanner detects an image which is similar to a bar code, it forces on the light source automatically and scans the bar code.
-
Page 9: Keyboard Layout
Keyboard Interface Quick Set - Record Suffix - None RETURN SPACE ENTER - Keyboard Layout - France Germany United Kingdom-UK Canadian French Spain (Spanish) Spain (Latin America) Nertherlands Japan Sweden/Finland... -
Page 10: Baud Rate
Serial Interface Quick Set - Record Suffix - None SPACE CRLF - Baud Rate – 115.2K BPS 4800 BPS 19.2K BPS 57.6K BPS 2400 BPS 9600 BPS 38.4 BPS 1200 BPS - Data Frame - 8, None, 1 7, None, 2 8, None, 2 8, Odd, 1 7, Odd, 2... -
Page 11: System Commands
System Commands System Information Master Default PowerTool Host Link User Default Factory Default Save User Default Host Interface Quick Set RS232 Serial Keyboard Replacement PS/2 (DOS/V) KBW Standard Mode PS/2 (DOS/V) KBW Turbo Mode USB HID Standard Mode USB HID Turbo Mode USB Com Port Emulation... -
Page 12: Option Codes
System Commands PROGRAM (Enter Programming Mode) (Exit Programming Mode) Option Codes FIN (Finish) -
Page 13: Keyboard Interface Control
Keyboard Interface Control Command Parameter Selection Option Code Keyboard Layout Latin America France Italy Germany Netherlands United Kingdom-UK Denmark Canadian French Belgium Spain Switzerland-Germany Sweden/Finland Iceland Portugal Japan Czech Norway Record Suffix None ENTER RETURN User define character SPACE Preamble None 1-15 characters [00-7F], [FIN]... -
Page 14: Serial Interface Control
Serial Interface Control Command Parameter Selection Option Code STX/ETX Control Disable STX/ETX transmission Enable STX/ETX transmission Record Suffix None SPACE User define character CRLF Preamble None 1-15 characters [00-7F], [FIN] Postamble None 1-15 characters [00-7F], [FIN] Handshaking Protocol None RTS/CTS ACK/ NAK Xon/Xoff Intermessage Delay... -
Page 15: Keyboard Function Code Table
Keyboard Function Code Table No. ANSI ASCII Key Function Ctrl Output No. ANSI ASCII Key Function Ctrl Output Ctrl + @ Ctrl + P RESERVED Ctrl + A Ctrl + Q CTRL (Left) Ctrl + B Ctrl + R ALT (Left) Ctrl + C Ctrl + S SHIFT... - Page 16 P/N: YMAUB00010040R0 Disclaimer Cino makes no warranty of any kind with regard to this publication, including, but not limited to, the implied warranty of merchantability and fitness for any particular purpose. Cino shall not be liable for errors contained herein or for incidental consequential damages in connection with the furnishing, performance, or use of this publication.
