scope GEO 40A7 Programming Manual

Alphanumeric pager
Hide thumbs Also See for GEO 40A7:

Advertisement

Quick Links

Download this manual See also: User Manual

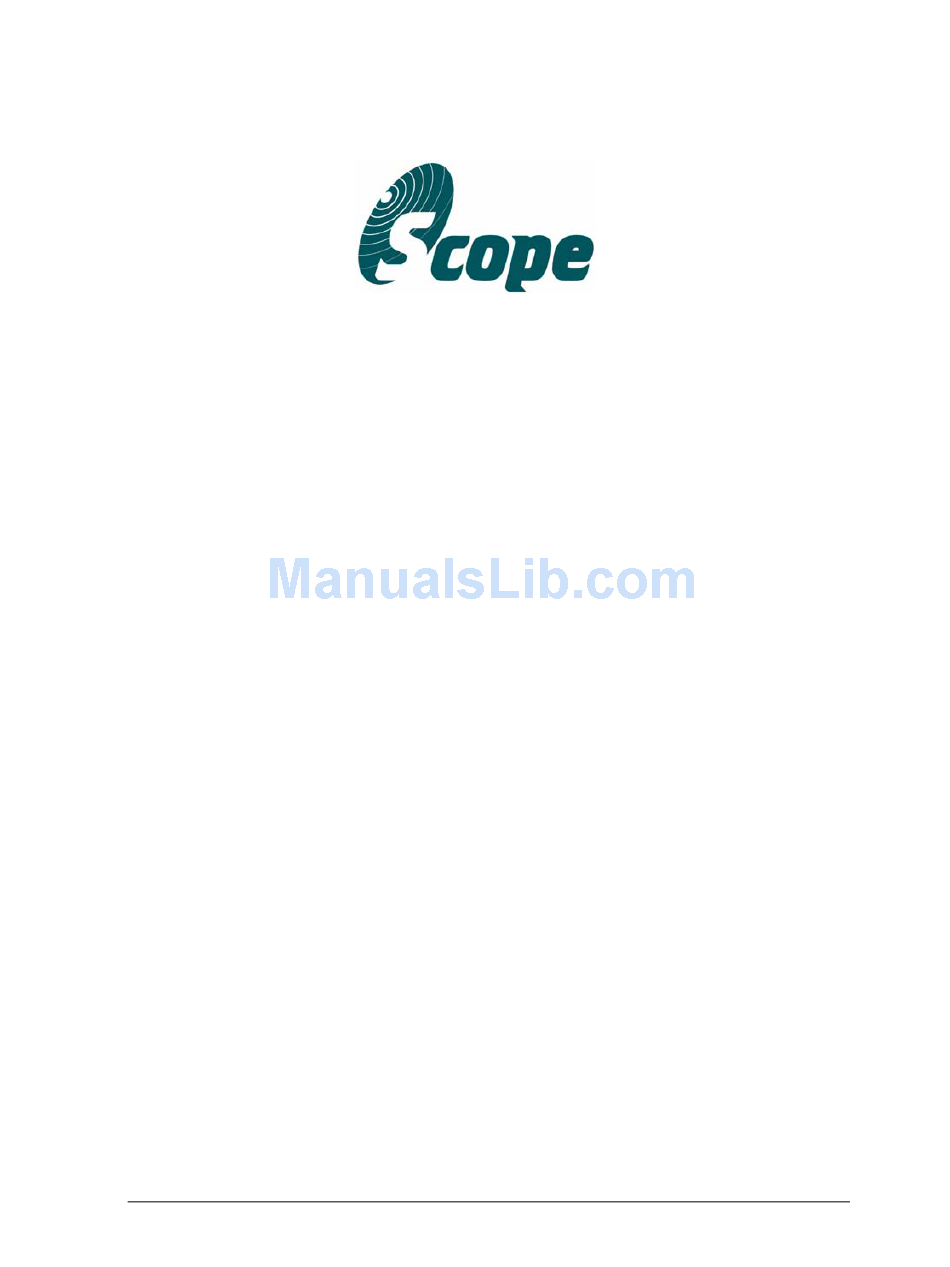

Scope Communications UK Ltd
Programming Manual
For
GEO 40A7 Alphanumeric Pager
Page 1 of 11
Ref: 40A7PROGMANUAL
Issue 1

Advertisement

loading

Related Manuals for scope GEO 40A7

Summary of Contents for scope GEO 40A7

  • Page 1 Scope Communications UK Ltd Programming Manual GEO 40A7 Alphanumeric Pager Page 1 of 11 Ref: 40A7PROGMANUAL Issue 1...

  • Page 2: General Specifications

    Scope Communications UK Ltd GENERAL SPECIFICATIONS 1) Number of Addresses 6, frame independent 2) Memory Size 10,000 character total 3) Display 5*8 dot matrix backlit LCD 4) Character 40 (2 lines of 20) 5) Messages Maximum 60 private 6) Message control Max.
  • Page 3 Scope Communications UK Ltd Programmer Kit Pager Programmer (YO87) 1 off Parallel Connection Cable 1 off 9V DC Adaptor 1 off Program (V3.x) 1 off Connection 1) Connect the pager programmer to the PC parallel port using the connection cable provided. Fit the 9V DC Adaptor connection cable to the side of the Programmer Shoe.

  • Page 4: Function And Features

    1) [Address] 6 addresses, selectable as Private or Public. For operation with Scope paging systems, addresses must be set as Private. Each address can be Enabled/Disabled using the Tick box to the left of the Address. Each tone type for each address is independently selectable as Numeric, Alpha, Tone or Disabled.
  • Page 5 Scope Communications UK Ltd 5) [Public Folder Mode] Continuous or Discontinuous folder selection can be set (wide area paging only). 6) [Repeat Call Check] Call tone dependence: call tone (beep type) and message must be the same to qualify as a repeat call.
  • Page 6 Continuous: vibrate alert lasts for the duration of the Alert Time set. 1 Hz pulse: vibrate pulses once a second for the Alert Time set. ABCD: vibrate pulses in sympathy with the ABCD call patterns. Special: distinct Scope preset vibrate pattern to easily distinguish between ABCD calls. 12) [Urgent Call Type] Two Tone: two alternating tones give a distinct alert when the Urgent call mode is triggered.
  • Page 7 Scope Communications UK Ltd value is 48. 17) [Remind Alert] A reminder alert beep can be set within the range 1-60 minutes. “0” = disabled. 18) Hand Program Password Four digit password which must be entered by user to access hand programming mode (Hand Program Tick box must be checked to enable this feature).
  • Page 8 Scope Communications UK Ltd 24) [Alarm] Alarm clock function. Tick box must be checked to enable the time set feature. 25) Auto ON/OFF The pager can be set to power up and switch off at preset times, assisting in battery conservation. Auto On/Off Enable Tick box must be checked to enable this feature.
  • Page 9 Scope Communications UK Ltd 31) [Time Display] When Tick box is left blank, the time display (normally visible when pager is in standby mode) is inhibited. 32) [Unread Message Indication] When Tick box is left blank, the unread message indicator is inhibited.
  • Page 10 40) [Out of range special display] For use only with a Scope supervised transmitter system. When pager goes out of range, display will show “No Service” and vibrate continuously until reset by the user (pressing any button). A three second reminder vibrate alert will be sent every 15 minutes until the pager comes back into range.
  • Page 11 Scope Communications UK Ltd 44) Over The Air Commands The following OTA commands are executed by entering the command codes as shown below. In order for the code to work properly you must have the following set in the pager.
