Pelican TS200H Installation Manual

Internet programmable thermostat with humidity control

Hide thumbs Also See for TS200H:

Download this manual

Installation Guide

TS200H Internet Programmable

Thermostat with Humidity Control

Caution

Failure to follow these instructions can damage the product or cause a hazardous

condition. Disconnect power during the installation of this product. All wiring must

conform to local codes and ordinances. This thermostat is designed for use with 24

VAC systems.

For additional assistance visit www.PelicanWireless.com to request support.

Before Removing Old Thermostat

Note the colors and letter designations of the terminal connections on the existing

thermostat to assist in identifying the correct wiring connections.

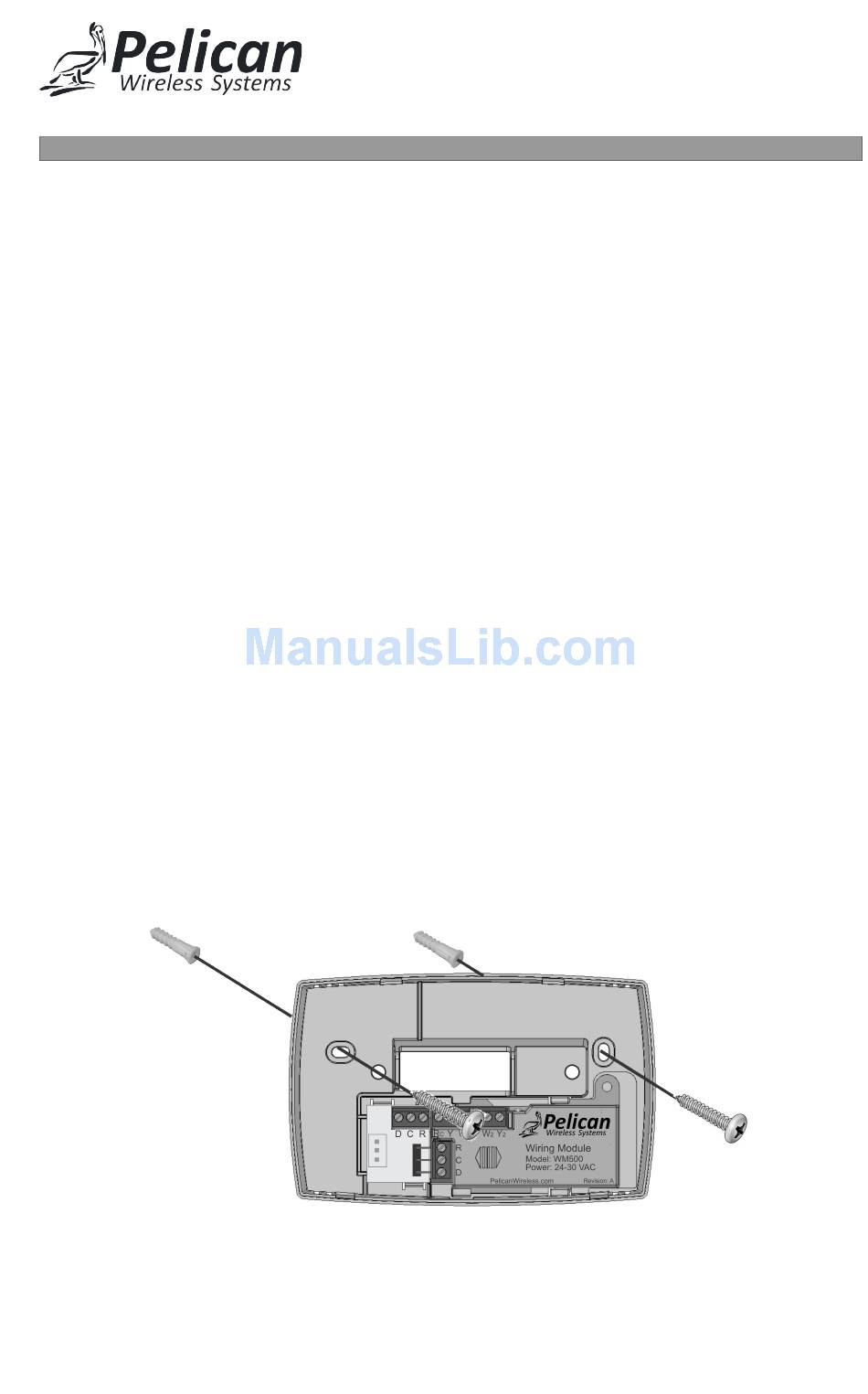

Wall Mounting

The rear cover of the thermostat is mounted to the wall. To separate the front cover

from the rear cover, simply grasp the front and back of the thermostat firmly and pull

apart.

Attach the rear of the thermostat to the wall using the included Plastic Anchors.

Position the rear cover so that the wires can be fed through the rectangular opening

in the back of the thermostat. Then mark the locations of the mounting points on the

wall. Drill a 3/16" hole for each anchor. Insert the anchors into the wall and attach the

rear cover using the included screws. The thermostat can also be mounted to an

electrical box using the included machine screws.

Table of Contents

Do you have a question about the TS200H and is the answer not in the manual?

Page 1: Installation Guide
Installation Guide TS200H Internet Programmable Thermostat with Humidity Control Caution Failure to follow these instructions can damage the product or cause a hazardous condition. Disconnect power during the installation of this product. All wiring must conform to local codes and ordinances. This thermostat is designed for use with 24 VAC systems.
Page 2: Terminal Designations
Terminal Designations Conventional Heat Pump 24 VAC Power for Heat 24 VAC Power for Heat Rc 24 VAC Power for Cool Jumper to Terminal “R” Common 24 VAC Common 24 VAC Cool Control – stage 1 Compressor – stage 1 Heat Control –...
Page 3: Heat Pump Systems
24VAC relay which is powered using the humidity control output and Common. Configuration All of the thermostat configuration settings can be made through the Pelican Site Manager Web Application. These can be found under the Admin section. Each...
Page 4 thermostat will be listed with it's serial number and the label Thermostat Setup. Most configuration items can be left at their default setting. For proper operation it is necessary to set the correct System Type (Conventional or Heat Pump). If the Web Application is not yet available, the System Type can be set directly using the thermostat front keypad.
