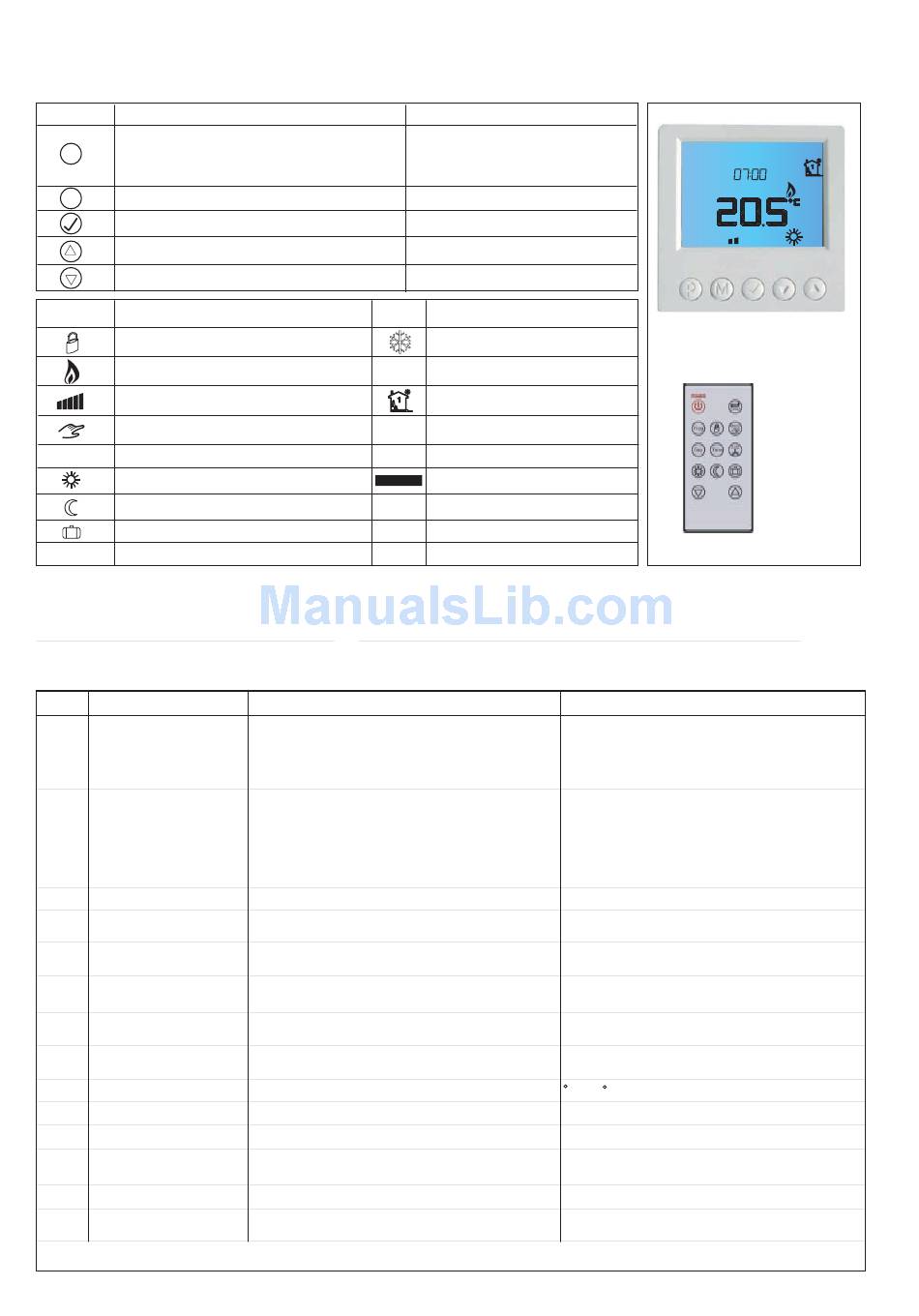

prowarm TR3100 Instructions

Buttons and LCD symbols

Buttons Short Press
Power button (Turning on/off thermostat), with thermostat
turned off, you will only see temperatrue display on LCD.
P
With thermostat turned on, you will see more detailed
information on LCD, such as time,day,mode, etc.
M
M button,Mode selection( Auto mode / manual mode )
Confirmation button, accept the set values
Up arrow button, increase the set value
Down arrow button, decrease the set value
Symbols Description
The buttons are locked.
Heating is turned on
The difference between set temperature and room
temperature, more bars means more difference.
Manual mode
AUTO Auto mode
Comfort temperature
Economy temperature
Vacation mode
Err
meaning that floor sensor is short-circuit or broken.

Configuration Menu

To enter into menu settings, follow below 2 steps,
Step 1, Turn the thermostat off by pressing P button;
Then by each press of button M will cycle the thermostat throug
each menu, press button M to accept and proceed to the next menu. To store the menu settings and exit, press button P.
Features description
Menu #
Model (model selection)
01
Sd (switching differential)
02
ATC (air temp calibrate)
03
FTC (floor temp calibrate,
04
AF, F model only)
05
PTD (program time delay)
TR (Temperature readout,
06
AF model only)
MAXFT (set maximum floor
07
temperature in AF model)
BL (backlight turning-on time
08
setting)
TF (temperature format)
09
10
CLOCK
11
FP(Frost protection)
SC(setpoint configuration)
12
MD(model display)
13
AL( Auto lock)
14
Remarks: Not all menus are visible in certain models. For example, if you set the thermostat to
TR3100 Thermostat Instructions
Symbols
override
AF/F/A
Step 2, Press and hold button M for 3 seconds until you see Menu 01 on LCD
Features Explanation
This thermostat is a combination model allowing you to
choose between 3 different models. A, AF and F model.
A model: air onl y, with built in sensor
AF model: air & floo , with both built in and remote sensor r
F model: floor onl y, with remote sensor
The numbers of degree difference before switching.
The default is 1°C which means the thermostat will
switch the heating on 0.5°C below the set temperature
and will turn it off 0.5°C above the set temperature.
With a 2°C differential, the heating will switch on 1°C
below the set temperature and will switch off 1°C
above the set temperature.
This is to calibrate air temperature if required.
This is to calibrate floor temperature if required.
This gives more time for user to set the programmes
before reverting back to standard display
This gives option to choose to show air temperature,
floor temperature or to show both floo& air in interval.
This is to protect the floor surface.
This is to set the backlight turning-on time. User
can also set the backlight always on or off.
This alows users to select between °C or °F.
12/24 HOUR clock system selection
This is to avoid room temperature goes below 5 °C
This allows user to select 2 kinds of default setpoints
To display model A/AF/F on LCD
To lock the buttons automatically after 20 minutes of no
operation on buttons.
See overleaf for further setting up information
Press and Hold for 3 seconds
Setting the schedules(programmes) while
thermostat is turned on.
Setting the menus(with thermostat turned off)
Set the time and week days
Show floor temperature in AF model
Bring up vacation mode
Description
Frost protection activated
SET Set temperature
Programmes number
Room temperature
RT
FT Floor temperature
Temporary temperature override
Model
LO Room or floor temperature is below 0 °C
Room or floor temperature is greater than 50 °C
HI
h available menus as below. Use up or down arrow button to change the setting for
A, AF, F
1 = 1 degree(default), 2 =2
-1 = decrease 1 degree, 1 = increase 1 degree...
-1 = decrease 1 degree, 1 = increase 1 degree...
A= to show air temperature only, F=to show floor
temperature only, A--F = to show both in 5 second intervals
24 (default), 12- hour or 24-hour clock system
ON = activated; OFF = deactivated
4 means 4 independent setpoints, 2 means: setpoint 1 is the
same to setpoint 3 , setpoint 2 is the same to setpoint 4
ON= activated, OFF= deactivated
ON= activated, OFF= deactivated
