Summary of Contents for prowarm ProTouch IQ V2

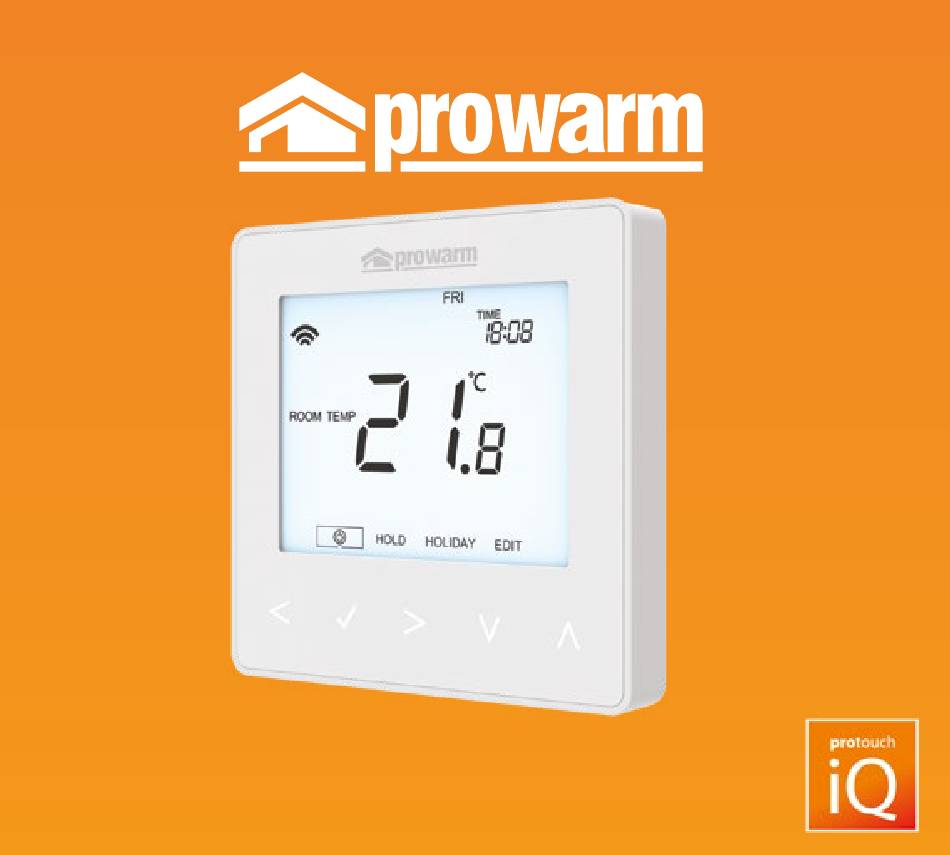

  • Page 2: Product Image

    Model: ProTouch IQ V2...

  • Page 3: Table Of Contents

    Table of Contents Product Image Frost Protection Table of Contents Power ON/OFF What is a Programmable Holiday Programming Room Thermostat? 23-26 Optional Features Installation Procedure Re-calibrating the Thermostat Mode Select Error Codes Pairing the ProTouch iQ Hub Diagrams Pairing the ProTouch iQ Factory Reset What is a Mesh Network? Approach Sensor...

  • Page 4: What Is A Programmable Room Thermostat

    What is a Programmable Room Thermostat? A programmable room thermostat is both a programmer and a room thermostat. A programmer allows you to set “On” and “Off” periods to suit your own lifestyle. A room thermostat works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached.
  • Page 5 The way to set and use your programmable room thermostat is to find the lowest temperature settings that you are comfortable with at the different times you have chosen, and then leave it alone to do its job. The best way to do this is to set the room thermostat to a low temperature –...

  • Page 6: Installation Procedure

    Installation Procedure Mount the thermostat at eye level. Read the instructions fully so you get the best from our product. Don’t Do not install near to a direct heat source as this will affect functionality. Do not push hard on the LCD screen as this may cause irreparable damage. The ProTouch iQ is designed to be flush mounted and requires a back box of 35mm (minimum depth) to be sunk into the wall prior to installation.
  • Page 7 protouch...

  • Page 8: Mode Select

    Mode Select This ProTouch iQ V2 can either be used as a thermostat or a time clock. Thermostat mode is the default setting. To change between thermostat or time clock modes, follow these steps. • Use the Left / Right keys to scroll to ................

  • Page 9: Pairing The Protouch Iq Hub

    Pairing the ProTouch IQ Hub. To pair the ProTouch IQ Hub with the ProTouch IQ App, follow these steps. • Connect the ProTouch IQ Hub to your router with the Ethernet cable provided. • Connect the power supply to the ProTouch IQ Hub. •...

  • Page 10: What Is A Mesh Network

    • Press the Tick key once again to pair the ProTouch IQ to the ProTouch iQ Hub .. • The MESH symbol appears flashing on the display. • When the ProTouch IQ successfully connects to the ProTouch iQ Hub the MESH symbol will be permanently displayed.

  • Page 11: Mode 1 - Thermostat

    Mode 1 - Thermostat protouch...

  • Page 13: Lcd Display

    LCD Display 1. Mesh Symbol - Displayed when connected to the ProTouch iQ Hub. 2. Day Indicator - Displays the day of the week. 3. Frost Protection – Displayed when frost protection is enabled. 4. Flame Symbol – Displayed when the thermostat is calling for heat and flashes when optimum start is active.

  • Page 14: Temperature Display

    Temperature Display The ProTouch IQ can be configured for different sensor options such as built in air sensor, floor sensor or both. The display will clearly indicate which sensor is being used by showing either “Room Temp” or “Floor Temp” before the actual temperature value. Room Temperature Floor Temperature When the ProTouch IQ is set to use both the air &...

  • Page 15: Setting The Clock

    Setting the Clock To set the clock, follow these steps. • Use the Left / Right keys to scroll to ................• Press and hold Tick to turn off the display ..............• Use the right arrow key to select CLOCK ............... •...

  • Page 16: Setting The Comfort Levels

    Comfort Levels Explained The ProTouch IQ offers three program mode options; Weekday/Weekend programming, 7 Day programming and 24 Hour programming. There is also the option to use the thermostat as a Non-Programmable thermostat. When thermostats are connected to the mesh network, the program mode for the system is configured by using the ProTouch IQ App.
  • Page 17 • Use the Up / Down keys to set the hours ............. • Press Tick to confirm ......................• Use the Up / Down keys to set the minutes ............• Press Tick to confirm ......................• Use the Up / Down keys to set the temperature ..........•...

  • Page 18: Setting The Temperature

    Temperature Control The Up / Down keys allow you to adjust the set temperature ........When you press either key, you will see the word SET and the desired temperature value. Use the Up / Down keys to adjust the SET value ..... Press Tick to confirm settings and return to the main display ...........

  • Page 19: Temperature Hold

    Temperature Hold The temperature hold function allows you to manually override the current operating program and set a different temperature for a desired period. • Use the Left / Right keys to scroll to HOLD..............• Press Tick to confirm selection ....................•...

  • Page 20: Locking/Unlocking The Protouch Iq

    Locking the ProTouch IQ The ProTouch IQ has a keypad lock facility. To activate the lock follow these steps. • Use the ‘Left/Right’ keys to scroll to ‘HOLD’ & press for 10 seconds ..The display will show 0000. At this point enter a four digit pin number. •...

  • Page 21: Frost Protection

    Frost Mode Use the Left / Right keys to scroll to the Power Icon ..........The frost icon will toggle ON/OFF each time Tick is pressed ..........In this mode, the ProTouch IQ will display the frost icon and will only turn the heating ON should the room temperature drop below the set frost temperature (see page 23).

  • Page 22: Power On/Off

    Power On/Off The heating is indicated ON when the flame icon is displayed. When the flame icon is absent, there is no requirement for heating to achieve the set temperature but the ProTouch IQ remains active. To turn the ProTouch IQ off completely, scroll to the Power Icon and hold the Tick key for approximately 3 seconds until the display goes blank ....

  • Page 23: Holiday Programming

    Holiday In thermostat mode, the holiday function reduces the set temperature in your home to the frost protection temperature setting (see page 23). The thermostat will maintain this temperature for the duration of the holiday and will then automatically return to the program mode on your return. In time clock mode, the holiday function maintains the timed output as OFF.

  • Page 24: Optional Features

    Optional Settings Explained THE FOLLOWING SETTINGS ARE OPTIONAL AND IN MOST CASES NEED NOT BE ADJUSTED. Feature 01 – Pairing To ProTouch IQ Hub: This function is used to connect the thermostat to the ProTouch IQ Hub. Feature 02 - Switching Differential: This function allows you to increase the switching differential of the thermostat.
  • Page 25 Feature 07 – Floor Temp Limit: This function is available when mode 06 is set to 03 or 04. You can set a floor limiting temperature between 20-45°C (28°C is the default setting). Note: Air Sensor only MUST NOT be used to control electric under-floor heating. Floor Sensor or Both should be used.
  • Page 26 Adjusting the Optional Settings • Use the Left / Right keys to scroll to ................• Press and hold the Tick button for 3 seconds .............. • SETUP will be highlighted, now press the tick key once ......... Feature Number Setting Value •...
  • Page 27 Optional Settings - Feature Table FEATURE DESCRIPTION SETTING Pairing Used to add zone to the ProTouch IQ Hub Switching Differential 00.5 = 0.5˚C 01 = 1.0°C (Default) 02 = 2.0°C 03 = 3.0°C Frost Protection Temperature 07° - 17°C (12°C = Default) Output Delay 00 - 15 Minutes (00 = Default) Up/Down Temperature Limit...

  • Page 28: Re-Calibrating The Thermostat

    Re-calibrating the Thermostat If you need to re-calibrate the thermostat, follow these steps. • Use the Left / Right keys to scroll to ............• Press and hold Tick to turn the display OFF ............• Press and hold the Tick and Down keys together for 10 seconds ....•...

  • Page 29: Diagrams

    Wiring Diagram - ProTouch IQ ProTouch IQ This product must only be installed by a qualified electrician and comply with local installation regulations. protouch...

  • Page 30: Factory Reset

    Factory Reset To reset the device to factory default settings, follow these steps: • Use the Left / Right keys to scroll to ..............• Press and hold Tick to turn the display OFF ............• SETUP will be highlighted ....................•...

  • Page 31: Mode 2 - Time Clock

    Mode 2 - Time Clock protouch...

  • Page 32: Lcd Display

    LCD Display Mesh Symbol - Displayed when connected to the ProTouch iQ Hub. Day Indicator - Displays the day of the week. Holiday – Displayed when the time clock is in holiday mode. Set - Displayed when changes are being made to the current set point. Program Indicator - Displayed during programming to show which level is being altered.

  • Page 33: Setting The Switching Times

    Setting the Switching Times To program the switching times, follow these steps. • Use the Left / Right keys to scroll to EDIT and press Tick ......... • Use the Left / Right keys to select day/period of the week ......•...

  • Page 34: Timer Override

    Timer Override To override the timed output on, follow these steps. • Use the Up / Down keys to set the override duration e.g. 02:00 hours ..• Press Tick to confirm settings and return to main display ........Hold Left and the remaining time will now be displayed. HOLD LEFT Indicator Hold Time Remaining...

  • Page 35: Optional Features

    Optional Features Explained Feature 01 – Pairing To ProTouch iQ Hub: This function is used to connect the time clock to the ProTouch iQ Hub. Feature 02 - Weekday/Weekend (5/2), 7 Day Programming or 24 Hour Mode: The time clock offers three programming methods; Weekday/ Weekend (5/2) - Allows you to program 4 on/off switching times for the weekdays and 4 on/off switching times for the weekend.

  • Page 36: Time Clock Mode Wiring Diagram

    Wiring Diagram - Time Clock Mode ProTouch IQ This product must only be installed by a qualified electrician and comply with local installation regulations.
  • Page 37 Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................protouch...
  • Page 38 Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................Model: Manual REF...
  • Page 39 Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................protouch...
  • Page 40 Rev.1.1...
