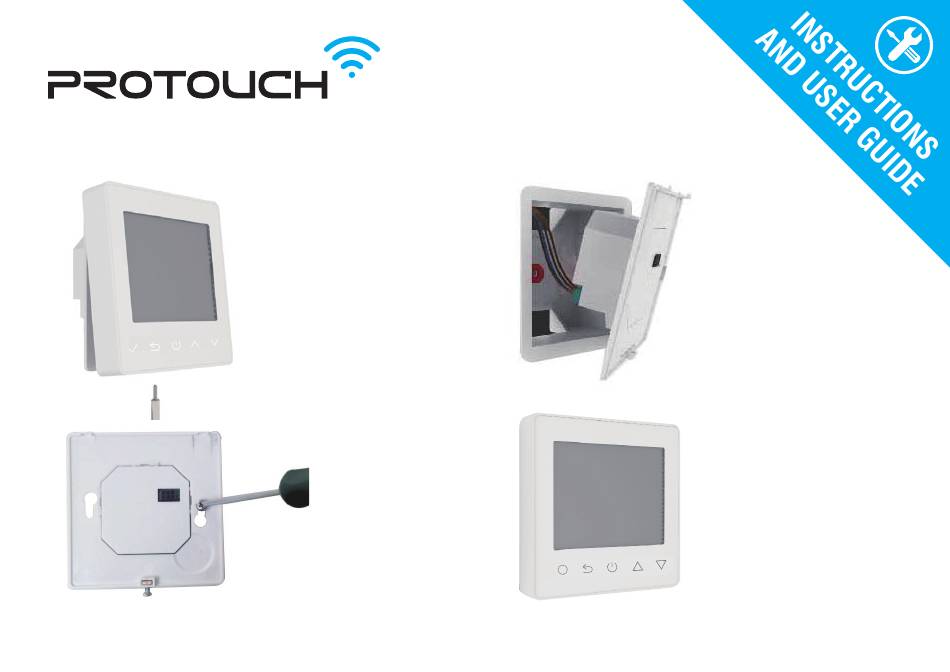

INSTALLATION AND WIRING INSTRUCTIONS
NOTE:
Thermostat should be mounted in a 35mm deep single gang back box
Smart Thermostat
1
Loosen fixing screw
located in the bottom of
the thermostat to get the
front panel.
3
Insert the back
panel into wall box
with provided
screws.
2
Connect the
thermostat
according to the
Wiring Instruction.
4
Align top part of front
panel and back panel to
fit these two parts. Then
fix them with screw.
Advertisement
Table of Contents
Related Manuals for prowarm ProTouch-W
Summary of Contents for prowarm ProTouch-W
- Page 1 Smart Thermostat INSTALLATION AND WIRING INSTRUCTIONS Loosen fixing screw Connect the located in the bottom of thermostat the thermostat to get the according to the front panel. Wiring Instruction. Insert the back Align top part of front panel into wall box panel and back panel to with provided fit these two parts.
- Page 2 PAIRING YOUR THERMOSTAT TO YOUR APP ‘ProTouch WiFi’ app available from First download the ProWarm ProTouch App from APP store or Google Play. You should see the following App icon: Once downloaded you will need to create an account via email and log in to the App.
- Page 3 PAIRING METHOD 1 Note: If you have multiple thermostats that require pairing, please turn all other devices off except the one you are trying to pair. Once paired this device can be left on whilst pairing another one. On the thermostat you should see the WIFI symbol flashing fast (2-3 times per second). If the symbol is not on the screen press and hold the △...
- Page 4 Step 4 Step 5 Step 6 Step 7 Press the button ‘Press Enter your WIFI password When the connection Once complete, a to Connect’ at the from your router ensuring it is successful, enter a firmware update may bottom of the screen is accurate and then press name for your be required.
-
Page 5: Pairing Method
PAIRING METHOD 2 Connecting WIFI stats using AP mode Step 1 On the thermostat press and hold the UP and DOWN arrow together until F2 appears, If the code F1 appears release the UP and Down arrows and repeat the steps. Please note F2 will disappear from the screen and the WiFi icon will begin to flash slowly. - Page 6 Step 4 Step 5 Step 6 On the add device screen you Continue following steps that appear on Once the connection need to select AP Mode in the top screen pressing the orange button “Go to process is complete press right corner, once AP Mode is Connect”...
-
Page 7: Main Functions

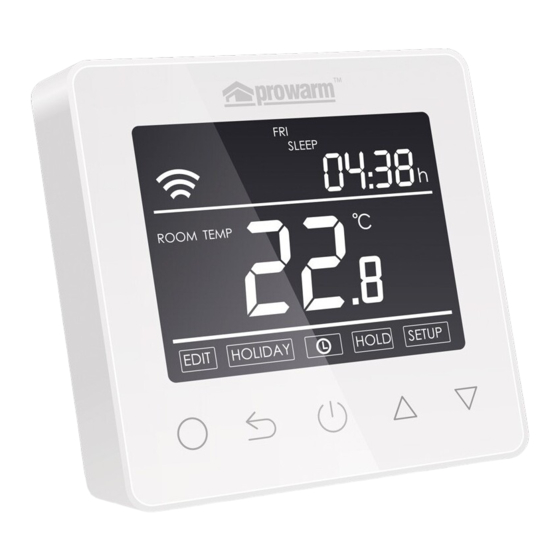

THERMOSTAT DESCRIPTION The new ProTouch WiFi is a smart thermostat used to control your water heating system. It will keep your home at comfortable temperature whilst minimizing energy use. Install the app on your smart phone to control your heating system remotely with the WiFi thermostat. MAIN FUNCTIONS Power consumption Key-lock... -
Page 8: Display Symbols
Smart Thermostat DISPLAY SYMBOLS Day indicator Period indicator Frost symbol Holiday left Key lock indicator MON TUE HOLIDAY WAKE LEAVE RETURN SLEEP LEFT HOLD Hold left WiFi Clock Floor Temp FLOOR TEMP Degrees Celsius Room Temp ROOM TEMP Fahrenheit HIGH Floor limit symbol Flame symbol TEMP... -
Page 9: Function & User Operation
FUNCTION & USER OPERATION Press to turn on/off Note: When frost protection mode is active, the thermostat will maintain the frost protection temperature when in power ‘off’ mode. Set the Time Temporarily override temperature In normal timed power ‘on’ mode, Press In normal timed power ‘on’... - Page 10 Holiday mode Hold mode The thermostat will maintain frost protection The thermostat will maintain a ‘Hold Temperature’ permanently temperature until the holiday days ends. until the unit is changed back to smart mode or until Hold Mode is turned off. In normal timed power ‘on’...
- Page 11 Timer setting Each day of the week has 4 time periods,you should allot a temperature to each time period. Set the temperature above room ambient temperature and the heating will come on until the desired temperature is reached, or, set the temperature low and the heating will not come on during that time period. The default settings are shown in the table below.
- Page 12 Name Default value Ranges 0°C Room temperature calibration - 5°C -- 5°C Floor temperature calibration 0°C - 5°C -- 5°C Frost protection mode OFF/ON Frost protection temperature 5°C 5°C -- 15°C 00: Built-in sensor Sensor selection 00: Built in sensor 01: Floor sensor 02: Both sensors Floor temperature limit(both sensors)
-
Page 13: Advanced Setting
ADVANCED SETTING 1. Room temp calibration: Calibrate the temp detected by room sensor. 2. Floor temp calibration: Calibrate the temp detected by floor sensor. 3-4. Frost Protection Mode: Frost protection allows the thermostat to turn on if the temperature drops below 5 degrees even when it is not programmed to. -
Page 14: Troubleshooting
ADVANCED SETTING (Please refer to table above) Caution: These are normally set by technicians during initial installation. In normal timed power ‘on’ mode, press O to enter setting. Press △ or ▽ to select SETUP . Press O to enter advanced setting. Each parameter can be accessed by pressing O and adjust the values as required using the arrow keys. -
Page 15: Wiring Instructions
WIRING INSTRUCTIONS SWITCHING MAINS VOLTAGE SWITCHING LOW VOLTAGE SUPPLY SWITCH SUPPLY 12/24v 220-240v LIVE 220-240v 12/24v OPTIONAL OPTIONAL FLOOR SENSOR* FLOOR SENSOR* (NOT INCLUDED) (NOT INCLUDED) SENSOR SENSOR POWER POWER 220-240v 220-240v FLOOR FLOOR 50/60Hz 50/60Hz SENSOR SENSOR MAX LOAD: MAX LOAD: IP 21 IP 21... -
Page 16: Dimensions (Mm)
Smart Thermostat DIMENSIONS (mm) Support: www.prowarm.com 01268 567019...
