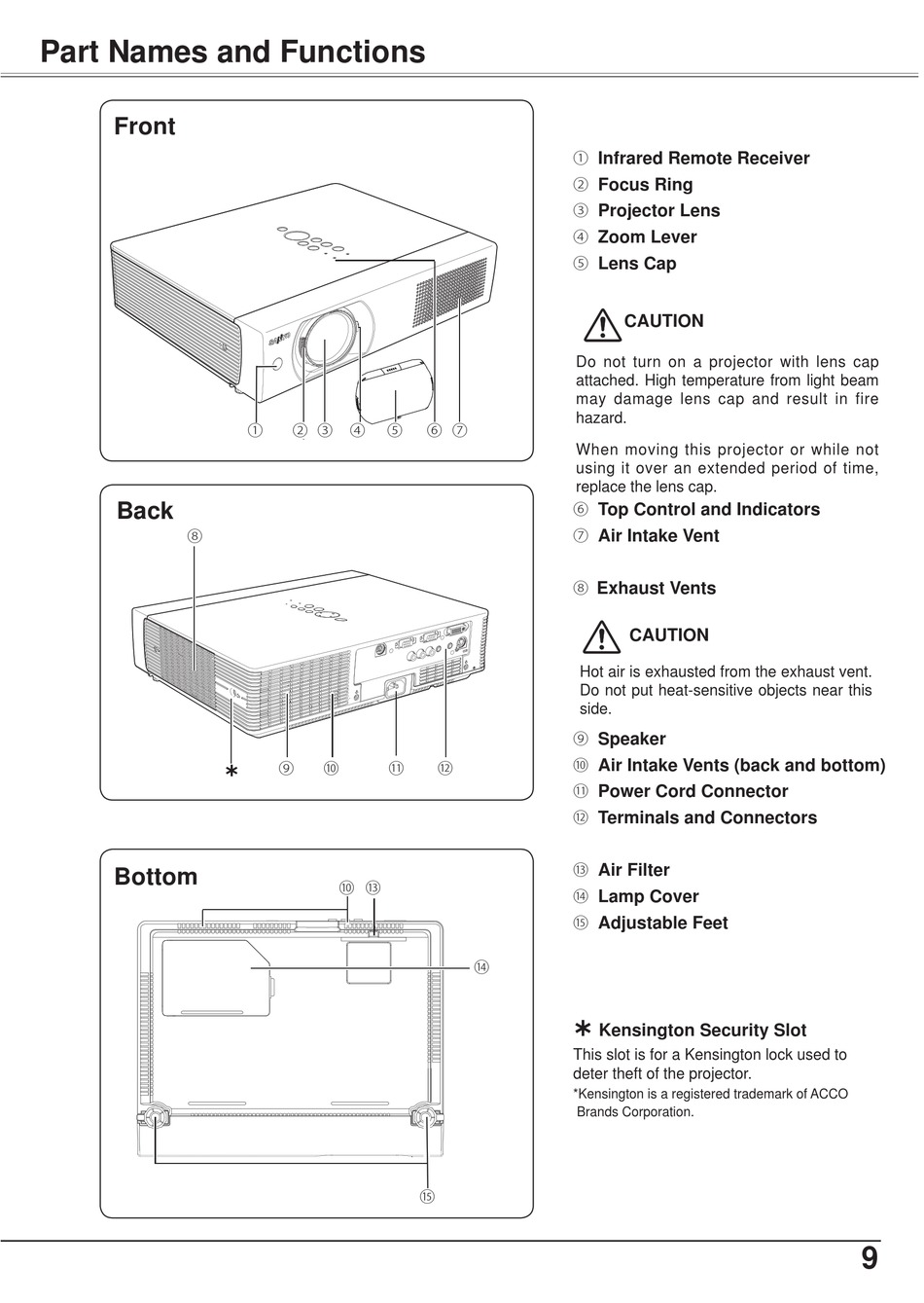

Part Names and Functions

Front

Back

⑧

Bottom

① ② ③ ④ ⑤
⑨ ⑩ ⑪

⑩ ⑬
①
②
③
④
⑤
Do not turn on a projector with lens cap
attached. High temperature from light beam
may damage lens cap and result in fire
hazard.
⑥ ⑦
When moving this projector or while not
using it over an extended period of time,
replace the lens cap.
⑥
⑦
⑧
Hot air is exhausted from the exhaust vent.
Do not put heat-sensitive objects near this
side.
⑨
⑩
⑫
⑪
⑫
⑬
⑭
⑮
⑭

This slot is for a Kensington lock used to
deter theft of the projector.
*Kensington is a registered trademark of ACCO
Brands Corporation.
⑮
Infrared Remote Receiver
Focus Ring
Projector Lens
Zoom Lever
Lens Cap
CAUTION
Top Control and Indicators
Air Intake Vent
Exhaust Vents
CAUTION
Speaker
Air Intake Vents (back and bottom)
Power Cord Connector
Terminals and Connectors
Air Filter
Lamp Cover
Adjustable Feet
Kensington Security Slot
