Summary of Contents for AOC LE32D5210_65

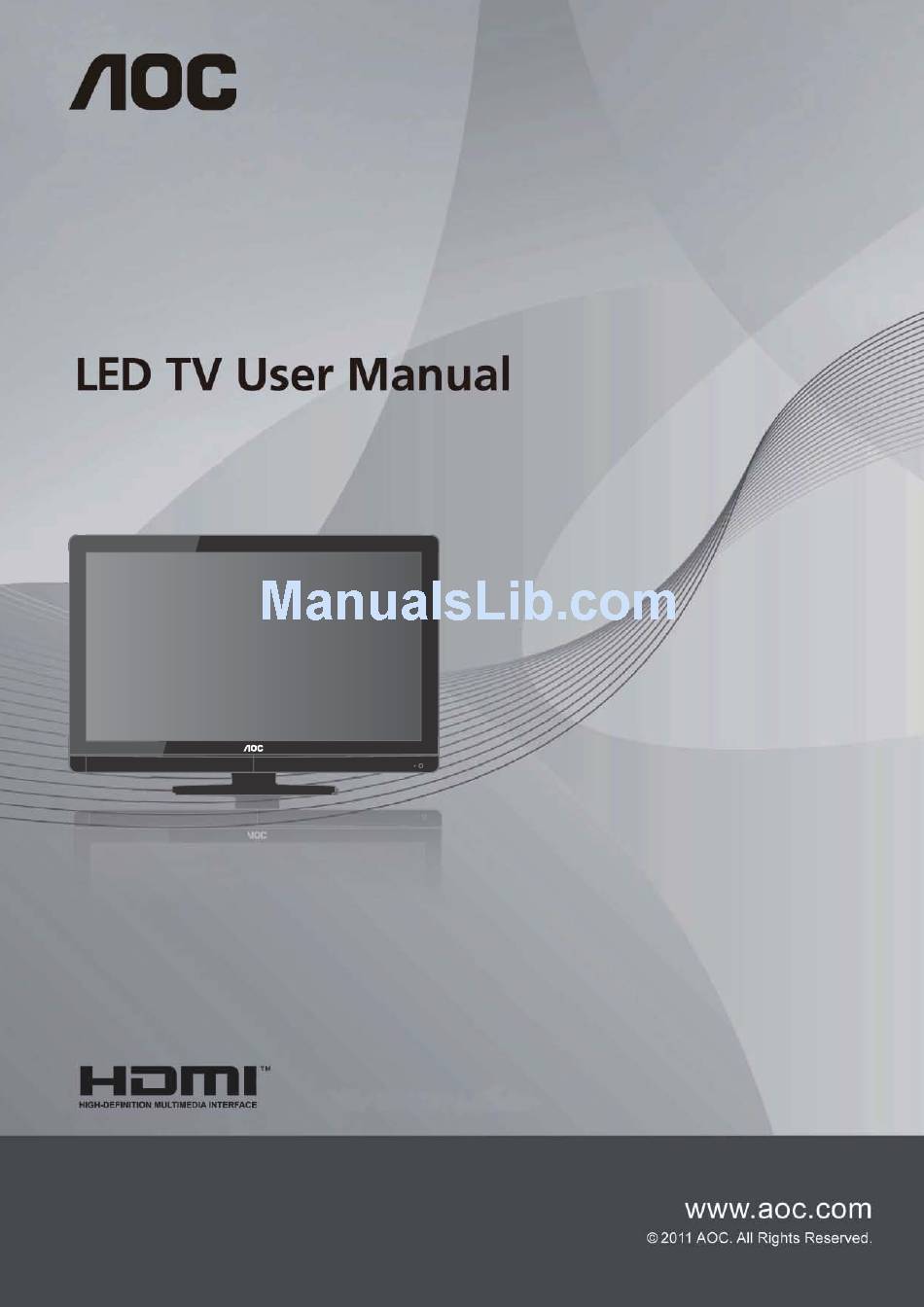

  • Page 1 LE32D5210_65...
  • Page 2 This manual provides as an operational guide to user. All statements, technical information, and recommendations in this manual and in any guides or related documents are believed reliable, but the accuracy and completeness thereof are not guaranteed or warranted, and they are not intended to be,nor should they be understood to be, representations or warranties concerning the products described.
  • Page 3: Table Of Contents

    DVI/ PC HDMI INPUT SIGNAL REFERENCE CHART ������������������������������������������������������������������������������������������������������������� 15 VIDEO INPUT SIGNAL REFERENCE CHART ������������������������������������������������������������������������������������������������������������������������� 15 VIDEO SYSTEMS SUPPORTED BY THE TV,VIDEO MODES ������������������������������������������������������������������������������������������������� 15 HOW TO USE YOUR AOC TV SET ������������������������������������������������������������������������������������������������������������������������������������������� 16 Power On And off ....................................16 Switch between input sources ................................17 Picture Setup ......................................18...
  • Page 4: Important Information

    Using non-recommended wall mount rack or TV stand may tamper the installation and result in personal injury. AOC has created unique and exclusive sound technology-DSS Disposal of your old product Dream Surround.
  • Page 5: Usage Instructions

    The TV should be installed near an easily accessible AC power outlet. • Use the AC power cord specified by AOC and suitable for the Observe the following in placing the TV. Otherwise the TV may fall voltage where you use it.
  • Page 6: Lcd Screen

    LCD Screen Electric Shock Do not touch the AC power cord or the TV with a wet hand. If you • Although the LCD screen is made with high-precision technology plug/unplug the AC power cord from the TV with a wet hand, it may and has effective pixels of 99.99% or more, black dots or bright cause electric shock.
  • Page 7: Optional Equipment

    Optional Equipment Disposal of used batteries To preserve our environment, dispose of used batteries according to Do not install optional equipment too close to the TV set. Keep your local laws or regulations. optional equipment at least 11.875 inches (30 cm) away from the TV set.
  • Page 8: Sound

    Sound Install on the wall 11 7/8 inches If a snapping or popping sound from the TV is continuous or frequent 30 cm while the TV is operating, unplug the TV and consult your dealer or service technician. It is normal for some TV’s to make occasional snapping or popping sounds, particu larly when being turned on or off.
  • Page 9: Volume Adjustment

    Ask a qualified service technician to dispose of the Thank you for purchasing this AOC high-definition television. The quality of the image you see on your AOC TV is only as good as the quality of the signal it receives. To experience the stunning detail of your new AOC TV, you need access to HD programming.
  • Page 10: Contents In The Box

    Contents In The Box After unpack the TV box, please check the TV and all accessories are well presented and undamaged. AOC TV Base Q4 Screw x 4 HDMI Ypbpr Back Source Mute Display Sleep Zoom Menu Freeze Picture Sound...
  • Page 11: Controls & Connections

    Controls & Connections Video PC IN AUDIO TV ANTENNA VIDEO COMPONENT Controls Item Description 1�Volume +/- press to increase or decrease the sound volume level. press to select the next higher or lower program number. 2�Channel press to open or exit the OSD menu. 3�MENU press to select the input source.
  • Page 12: Remote Controller

    Remote Controller Buttons located at the right side of the TV will operate the same as these buttons on the remote controller� Button Description Press this key to power on and off your TV set. Your product enters the Power Switch power saving mode rather than fully power off.
  • Page 13: Tv Installation

    Note:100 mm × 200 mm wall mount bracket &M4 screws (Screws length:14 mm and pitch:0.7 mm) is not included.Please contact your local distributor. • AOC strongly recommends that the wall mount rack must be installed by local dealer and/or authorized service provider with the wall-mount rack specifically designed for your TV set to protect your products as well as your safety.
  • Page 14: Connecting Tv

    Connecting TV Cable System or VHF/UHF Antenna System You can enjoy standard-definition and high-definition digital programming (if available in your area), along with standard-definition analog programming. It is strongly recommended that you connect the antenna/cable input using a 75-ohm coaxial cable to receive optimum picture quality. A 300- ohm twin lead cable can be easily affected by radio frequency interference, resulting in signal degradation.
  • Page 15: Composite Signal Connection

    Composite Signal Connection AV IN PC Connection Use the TV as a monitor for your PC shown below with the HD15 to HD15 connection. This TV can also be connected to a PC with DVI or HDMI output. VGA IN D-SUB •...
  • Page 16: Pc Input Signal Reference Chart

    PC Input Signal Reference Chart Connect a computer to your TV set and set up the computer output signal in accordance with table below. Default computer mode Standard Resolution Horizontal Frequency (kHz) Vertical Frequency(Hz) 720 × 400 31.327 69.617 SVGA 800 ×...
  • Page 17: How To Use Your Aoc Tv Set

    How To Use Your AOC TV Set Power On And off Press the power button at your TV set or remote controller to power it on. Power switch HDMI Ypbpr Back Source Mute Display Sleep Power switch Zoom Menu Freeze Picture...
  • Page 18: Switch Between Input Sources

    Switch between input sources You can select signal sources to your AOC TV set directly with your remote controller. You can also press the Source key in the display menu to select signal source. HDMI 1 ) Directly select the input signal sources by using �...
  • Page 19: Picture Setup

    Picture Setup VIDEO Smart Picture Personal Contrast Brightness Colour Sharpness Noise Reduction Color Temp Cool Size Wide Move Select Exit Items Description Personal User can set their favorite setting. Vivid For Enhances picture contrast and sharpness. Smart picture Standard For standard picture settings.Recommended for home entertainment. Decrease backlight level to save the power Movie For viewing film-based content.Most suitable for viewing in a theater-like environment.
  • Page 20: Picture Setting(For Pc Source Only)

    Picture Setting(For PC source only) VIDEO Smart Picture Personal Contrast Brightness Color Temp Warm Size Wide Move Select Exit Items Description Personal User can set their favorite setting. Vivid For Enhances picture contrast and sharpness. Smart Picture Standard For Standard picture settings.Recommended for home entertainment. Decrease backlight level to save the power Movie For viewing film-based content.Most suitable for viewing in a theater-like environment.
  • Page 21: Audio Setup

    Audio Setup AOC creates unique and exclusive sound technology- DSS Dream Surround.DSS effect creates a truly immersive surround sound experience with rich bass and clear dialog from only two speakers. AUDIO Smart Sound Personal Bass Treble Balance Sound Mode FM Mono...
  • Page 22: Features Setup

    Once child lock is enabled, Password is required to re-enter the child lock sub menu. Menu The initial password for AOC is 0000. You can change the password to any 4-digit number of your choice. A super password 3448 is pre-defined to enter into child lock setup function in case you have forgotten the Password password.
  • Page 23: Channel Setup

    Channel Setup This setup is available in TV mode only. CHANNEL Auto Search Update Search Manual Search Channel Lock Channel Skip Channel Swap Move Select Exit Items Description TV automatically searches for the channel in the available frequency band and stores sequentially.
  • Page 24: Manual Search Description

    Manual search description Select Channel menu. Select Manual Search and press OK key or arrow key to get Manual search sub-menu. Select a manual tuning parameter by using arrow. Items Description Program No. Press the arrow button to select desired channel number. To Enter a name for the selected channel.
  • Page 25: Computer Setup

    Computer Setup This setup function is available in computer mode. Auto Adjust H.Position V.Position Clock Phase Move Select Exit Items Decsription Auto Adjust Press arrow Button to adjust the screen automatically to the optimal position of the picture. H�position Adjusts the horizontal position of the picture. V�position Adjusts the vertical position of the picture.
  • Page 26: Usb Media Center

    USB Media Center TV USB port can be used to play picture and music present in USB devices. Selecting USB Media Center: Source Press the Source button to display the list of signal sources. Press the button to select USB input source. Press OK button to enter USB input source.
  • Page 27: Playing Mp3 Files

    Displaying the pictures in Full screen To display the pictures in full screen the thumbnail by press buttons and press Display button on the remote. Move Zoom Play/Pause Exit Press this button to Play or pause the picture slide show. Press these buttons to view previous or next picture.
  • Page 28 If Music files are available then list of Music files available in the folder are displayed as shown below else select the sub-folder containing Music files. To select the sub-folder follow the steps below: a. Press Back button to switch to folder selection. b.
  • Page 29: Usb Media Center Settings

    Press OK button to display the information of the connected USB device. Caution: AOC is not responsible if the USB storage device is not supported,nor is it responsible for damage or loss of data in the device. A reminder pops up when Photo/Music is selected before connecting the USB device.
  • Page 30: Dimensions & Specifications

    Dimensions & Specifications Model LE32A1710 Panel Size 800mm diagonal (31.5" viewable) Resolution 1366 x 768 PAL D/K,B/G,I TV System NTSC M Speaker 7W x 2 Antenna impedance 75Ω Input Voltage 100-240V AC,50/60Hz Power consumption Standby power consumption <1W Video/Audio Terminals Rear AV in x 1,Side Video out x 1 VIDEO: 1 V(p-p),75 ohm,negative sync.
  • Page 31: Troubleshooting

    Troubleshooting Condition Explanation / Solution No picture No picture Check the Power Saving settings. Make sure the power cord is connected securely. Turn on the power of the TV. Cannot receive any channels Check antenna/cable connections. Make sure the Cable setting is correct for your TV signal source. TV is locked to one channel Perform Auto Program to add receivable channels that are not present in the TV’s memory.
  • Page 32: Weee/E-Waste Declaration For India

    WEEE/E-Waste Declaration for india This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment .
