Summary of Contents for GTS Patriot

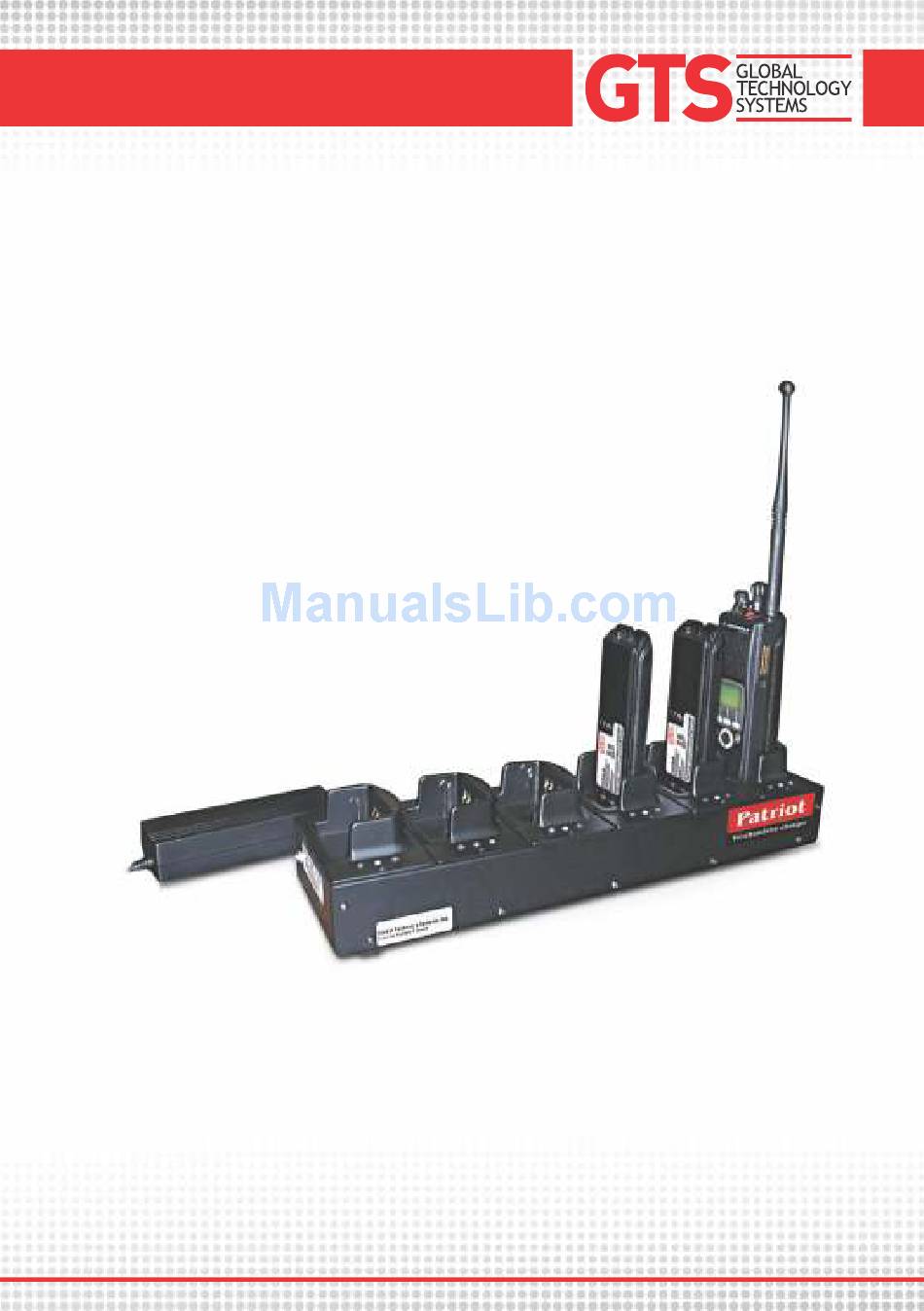

- Page 1 ® PATRIOT CHARGER Six-Bay Multi-chemistry Charger OPERATIONS MANUAL Global Technology System - Revision 3...
-
Page 3: Table Of Contents
Contents Introduction Equipment Supplied Safety Guidelines Warning Product Specification Operation Compatible Batteries Troubleshooting Cleaning RF Devices Replacement Parts Warranty and Support ... -
Page 4: Introduction
The product is designed for desk top operation and as an in-vehicle charger/conditioner when used with the appropriate car power adapter. ® The 6 bay Patriot charger is design for desk top or wall mounted operation without the need for any additional bracketing hardware. ®... -
Page 5: Equipment Supplied
Safety Guidelines ® Before using the Patriot Charger, please read all instructions and cautionary notations on the Patriot Charger, the GTS Battery and on the radio host device. Warning To reduce risk of injury only use authorized battery products with this charger Other ... -
Page 6: Operation
Operation The charger is comprised of six single port charging slots. For AC operation: Plug the power supply into the wall and the power cord into the charger. a. It is recommended that a grounded 3 prong AC outlet be used to power this device. -
Page 7: Compatible Batteries
Lost Power Compatible Batteries The following list is comprised of supported batteries that are approved for use with ® the Patriot Multi-chemistry charger. GTS Batteries for Motorola XTS3000, XTS3500, XTS5000 Battery Model Capacity Chemistry H8299-M (21) 2100 mAh NiMH... - Page 8 GTS Batteries for Motorola HT1000, MT1000, JT1000, MTS2000, MTX8000, MTX9000 Battery Model Capacity Chemistry H7143-C 1200 mAh NiCad H7143-M 1450 mAh NiMH H7143-M(18) 1800 mAh NiMH H7144-C 1500 mAh NiCad H7144-C(17) 1700 mAh NiCad H7144-M 2150 mAh NiMH H7144N-(27) 2700 mAh NiMH ®...
-
Page 9: Troubleshooting
NTN7372AR 1200mAh NiCad Troubleshooting ® If the Patriot Charger does not operate after you have followed these operating instructions: Check the system power Check for lose cable connections Check to insure radio or battery are properly inserted into charger ... -
Page 10: Rf Devices
RF Devices Global Technology Systems, Inc. products are designed to be compliant with the rules and regulations in the localities in which the products are sold and will be labeled as required. The limits are designed to provide reasonable protection against harmful interference when electronic devices are operated in a commercial environment. - Page 11 Global Technology Systems, Inc products might be used. An implied license only exists for equipment, circuits, and subsystems contained in GTS products.
- Page 12 Global Technology Systems, Inc. 550 Cochituate Road Framingham, MA 01701 US: 1.800.267.2711 EU: 00800.5390.5390 www.GTSpower.com...
