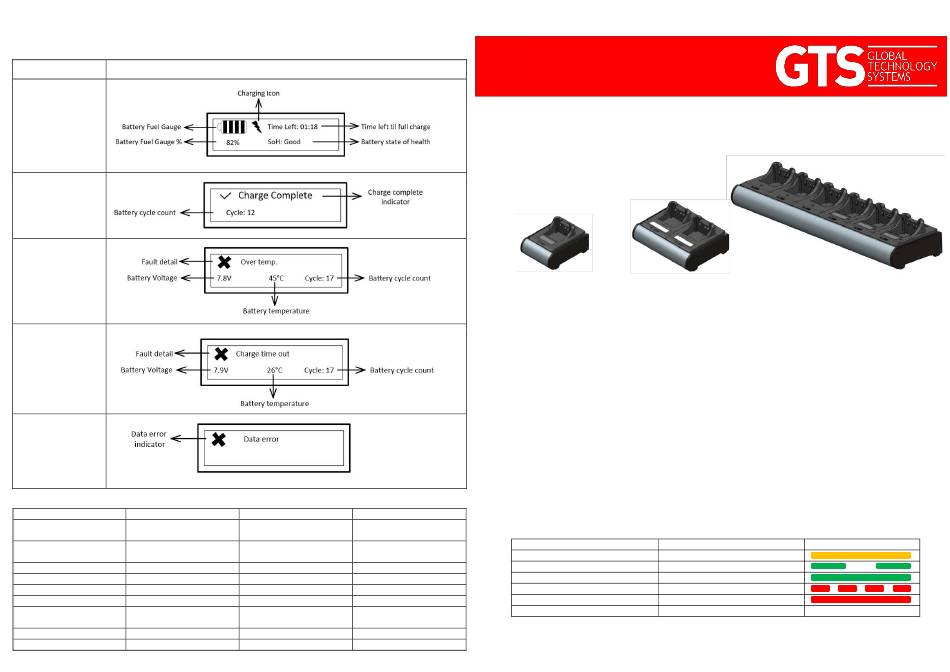

GTS HCH-XL1-CHG User Manual

LCD Indication
Charger Mode
Rapid Charging/
Trickle Charging
Charging Complete
Temperature fault
System Fault
System Fault –
Data Error
Product Specifications
Specification HCH-XL1-CHG
Operating Temperature 0°C to +45°C
(+32°F to +113°F)
Storage Temperature -20°C to +70°C
(-4°F to +158°F)
Charge Current Up to 1.6A
Length 159.7mm
Width 114.6mm
Height 90.2mm
Weight 800g
(Power Supply excluded)
Power Supply Input AC 110-240V, 50/60 Hz
Power Supply Output DC 13.5V, 3.7A
LCD Format and definition
HCH-XL2-CHG HCH-XL6-CHG
0°C to +45°C 0°C to +45°C
(+32°F to +113°F) (+32°F to +113°F)
-20°C to +70°C -20°C to +70°C
(-4°F to +158°F) (-4°F to +158°F)
Up to 1.6A Up to 1.6A
159.7mm 159.7mm
202.3mm 573.1mm
90.2mm 90.2mm
1600g 4800g
AC 110-240V, 50/60 Hz AC 110-240V, 50/60 Hz
DC 13.5V, 3.7A DC 13.5V, 11.2A
User Manual
Cradle and Battery Charger
For Harris ® XL200-P/XL-185P Series Radio Batteries
HCH-XL1-CHG
HCH-XL2-CHG
Single Bay Charger
Two Bay Charger
Equipment Supplied
▪
One (1) HCH-XL1-CHG (Single Bay Charger) or
One (1) HCH-XL2-CHG (Two Bay Charger) or
One (1) HCH-XL6-CHG (Six Bay Charger)
▪
One (1) Power Supply with an AC line cord
▪
One (1) User Manual
Operation
▪
Plug the power supply into the charger and plug the AC line cord into the power supply and outlet.
▪
Insert a battery or a radio into any charge bay and use the guide rails to ensure the proper
insertion and connection with the charger.
▪
The unit should start charging automatically.
▪
See LED and LCD Indication for the charging status in the next section.
LED Indication
INDICATION DESCRIPTION
LED steady Orange Rapid Charging
LED flashing Green Trickle Charging
LED steady Green Charging complete
LED flashing Red Temperature fault
LED steady Red System Fault
LED off No unit in charger

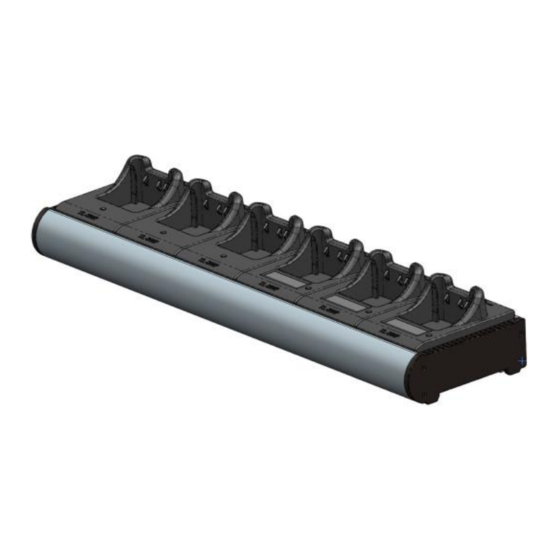

HCH-XL6-CHG
Six Bay Charger
LED
