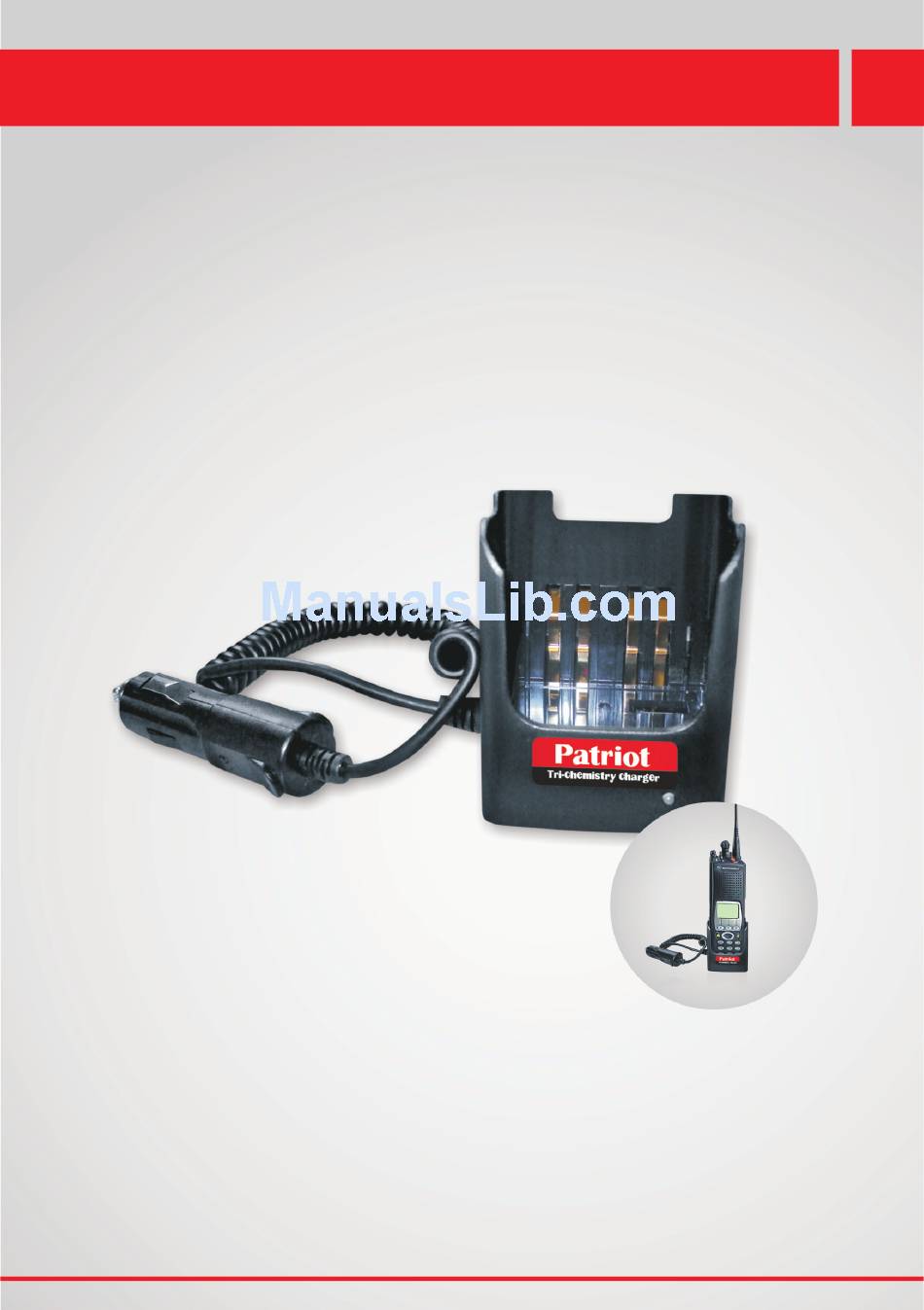

- Page 1 ® The Patriot DC Travel Charger Tri-Chemistry Compatible ® (Li-Ion, NiCD or NiMH) with Motorola Two-Way Radios Global Technology Systems, Inc.
-
Page 3: Table Of Contents
Contents Introduction Equipment Supplied Safety Guidelines Warning Product Specification Operation Mounting the Bracket Securing the Radio Compatible Batteries Troubleshooting Cleaning Replacement Parts Warranty and Support... -
Page 4: Introduction
Batteries as well as batteries provided by other suppliers (as approved by Honeywell Battery Services). ® The Patriot DC Travel Charger is user friendly and does not require manual setting for charging or battery maintenance parameters. The product is designed for in-vehicle charging with the appropriate car power adapter, which is supplied. -
Page 5: Equipment Supplied
One mounting kit (optional): contains one mounting bracket, mounting screws (4), retainer cord and clip Safety Guidelines ® Before using the Patriot DC Travel Charger, please read all instructions and cautionary ® notations on the DC charger, the Honeywell Battery, and on the radio host device. Warning To reduce risk of injury only use authorized battery products with this charger. -
Page 6: Operation
® Honeywell Batteries listed in table 1. Other batteries may not charge. ® It is recommended that a new battery should be charged using the Patriot DC Travel Charger before operating your radio for the first time. ® The patriot DC Travel Charger will provide battery recharging and allow the radio battery to be maintained at an optimum performance level. - Page 7 Figure 1 - LED Indicators Green Comment Flashing Green Charger is powered and ready to start charging, No battery inserted Steady Green Charging complete Battery in monitor/maintenance mode Orange Comment Steady Orange Battery is charging Flashing Orange Battery pack being topped-off or balanced Comment Rapid Flashing Red Temperature out of specification...
-
Page 8: Mounting The Bracket
® Insert the front of the Patriot DC Travel Charger into the bracket in a downward angle. Push the back of the DC Travel Charger into the bracket until it is securely in place. -
Page 9: Compatible Batteries
Compatible Batteries ® The following list is the list of batteries that are approved for use with the Patriot DC Tri-Chemistry Travel Charger. ® ® Honeywell Batteries for Motorola XTS3000, XTS3500, XTS5000 Battery Model Capacity Chemistry H8299-M(21) 2100 mAh NiMH... -
Page 10: Troubleshooting
Troubleshooting ® If the Patriot Charger does not operate after you have followed these operating instructions: Check the system power - including the fuse for the lighter plug Check for lose cable connections Check to ensure radio or battery are properly inserted into charger... - Page 11 Global Technology Systems, Inc products might be used. An implied license only exists for equipment, circuits, and subsystems contained in GTS products.
