GTS HCH-3060-CHG Operation Manual

MC3000/MC70/MC9000 Cradle Charger
Operations Manual
®
Symbol MC3000 / MC70 / MC9000 Mobile Computer Batteries.
®
Symbol MC3000
HCH-3060-CHG

Equipment Supplied


One (1) Six Bay Cradle Charger (see the P/N on box or label)

One (1) AC:DC Power Supply With Integrated 4-pin DC Cable

One (1) AC Line Cord

One (1) Operations Manual


Operation


1. Plug the AC power supply into the wall and the power cord into the charger
a. It is recommended that a grounded three (3) prong AC outlet be used to power this
device. The user should insure that the AC outlet is grounded before using this device.
If you are not sure that the AC outlet has appropriate ground, we suggest that a qualified
electrician be called for verification.
b. A temporary grounding adapter can be used to properly ground a two (2) prong outlet.
2. Ensure that the charger housing air slots are unobstructed and adequate ventilation is provided.
Do not use the charger in a completely closed cabinet.
3. Insert the terminal (Device) into a cradle. The terminal starts to charge automatically.
a. When charging, the Orange communication LED on the terminal will start flashing.
When charging completed, the communication LED will be a solid Orange light.
b. Cradle charging is conducted within the terminal. Please refer to device user manual for
detailed charging notification.
c. To ensure the quickest charging time, turn the terminal off while charging.

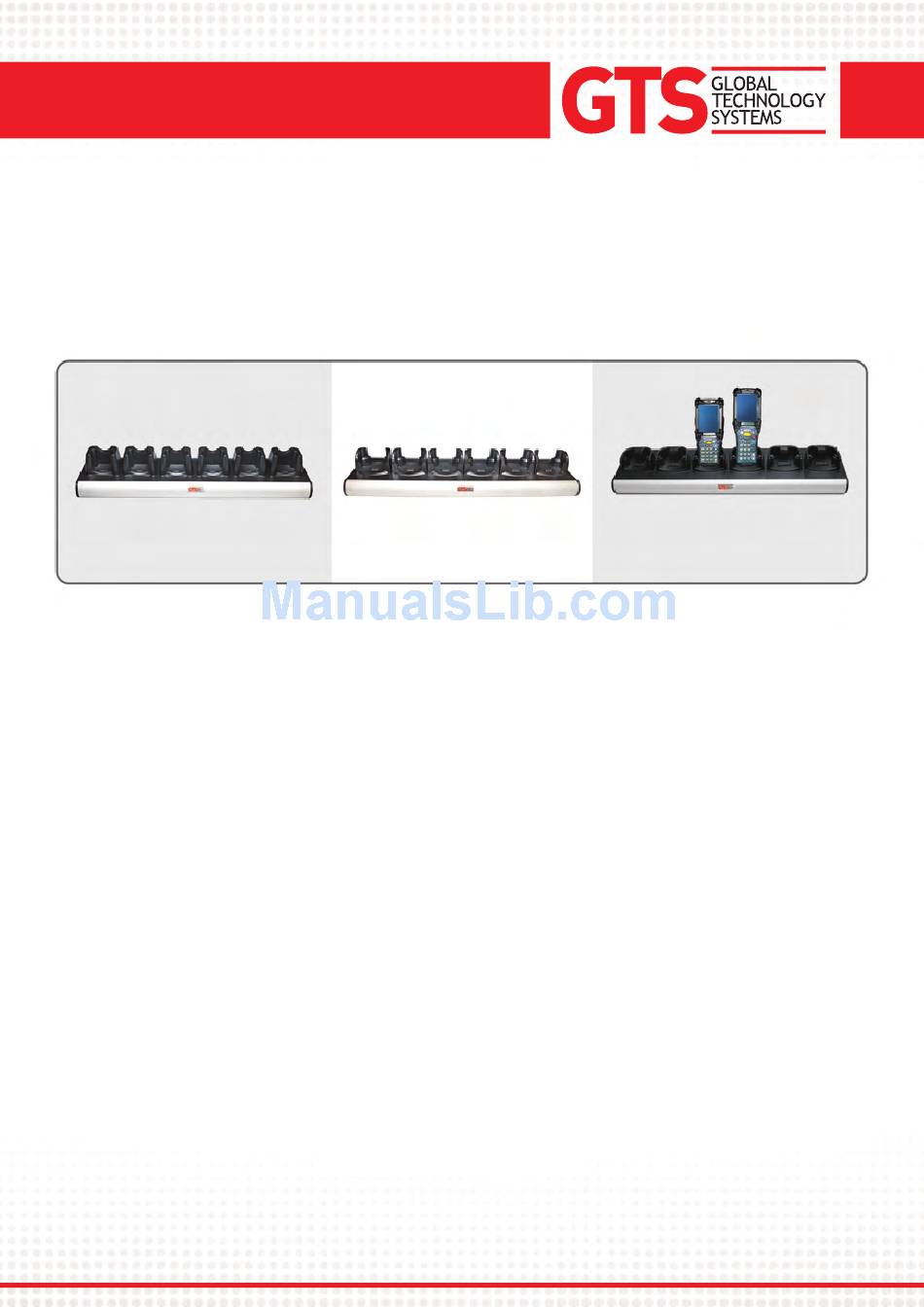

Six Bay Cradle Chargers for
®
Symbol MC70
HCH-7060-CHG
®
Symbol MC9000
HCH-9060-CHG
