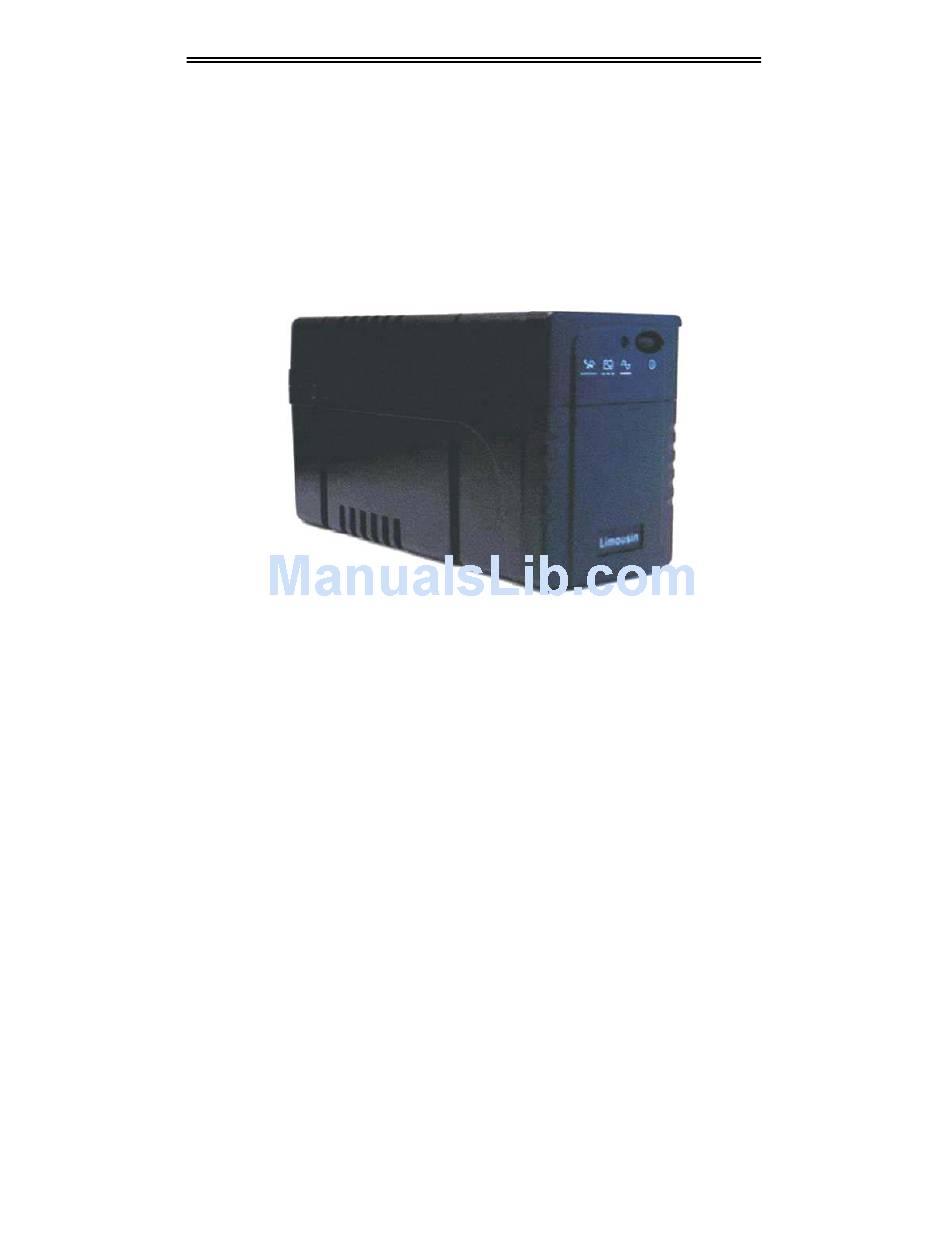

- Page 1 Always “On” UPS Systems Inc. Limousin II – Single Phase Input, Single Phase Output Uninterruptible Power Supply 600VA User Manual Version 1.4...
- Page 2 Always “On” UPS Systems Inc. SAVE THESE SAFETY INSTRUCTIONS This manual contains important instructions for the Limousin and should be followed during installation and maintenance of the UPS and batteries. The UPS contains voltages that are potentially hazardous. Please contact our dealers or qualified personnel for service.
-
Page 3: Table Of Contents
Always “On” UPS Systems Inc. Table of Contents INTRODUCTION......................1 PRESENTATION ......................2 2.1. Front Panel ........................ 2 2.2. Rear Panel ......................... 2 INSTALLATION ......................3 3.1. Unpacking and Inspection ..................3 3.2. Placement........................3 3.3. Connect to Utility...................... 3 3.4. -
Page 4: Introduction
Always “On” UPS Systems Inc. 1. INTRODUCTION The Limousin is an economical UPS solution that provides ultimate protection for your home and office equipment from destructive problems that plague the utility. With the Limousin, you can expect brownout and surge protection with the AVR function using on-line voltage boost-up &... -
Page 5: Presentation
Always “On” UPS Systems Inc. 2. PRESENTATION 2.1. Front Panel Multi Purpose LED This LED will be solid green when the UPS is under normal conditions. It will flash every 2 seconds when the UPS is supplying battery power to the loads, and will flash rapidly when the battery needs replacement. -
Page 6: Installation
Always “On” UPS Systems Inc. 3. INSTALLATION 3.1. Unpacking and Inspection Examine the Limousin UPS packaging for damage. Inform the carrier immediately if and/or when damage is noticed. Retain the packaging for future use. 3.2. Placement Install the Limousin UPS in a protected area with adequate airflow, free of excessive dust and other airborne particles. -
Page 7: Operation
Always “On” UPS Systems Inc. 4. OPERATION 4.1. Switching “On” the UPS Make sure the Limousin UPS is plugged in and the utility power is present. Press and hold the “On/Off/Test/Silence” Button for more than 3 seconds or until the LED is lit. This switches the Limousin UPS “On”. The UPS will perform self-testing each time it is switched “On”. -
Page 8: Audible Alarm
Always “On” UPS Systems Inc. 5. AUDIBLE ALARM 5.1. Back-Up (Slow Alarm) When in back-up mode, the LED flashes every 2 seconds and the UPS sounds an audible alarm. The alarm stops when the UPS returns to line normal operation. Press the “On/Off/Test/Silence” Button during back-up mode to silence the beeping. -
Page 9: Computer Interface Port
Pin 2 is the RS-232 data output to computer (TX). Pin 4 is the RS-232 (DTR) Pin 7 is the RS-232 (RTS) Pin 5 is the common or computer ground DB-9 Pin Configuration for the Limousin II RS-232 RD (PIN 3) RS-232 TX (PIN 2) RS-232 RTS (PIN 7) -
Page 10: Battery Replacement
Always “On” UPS Systems Inc. BATTERY REPLACEMENT Your battery should run anywhere from 3-5 years before it needs to be replaced. Please follow the instructions below for easy, trouble free, battery replacement. Turn the UPS off. Follow procedure previously mentioned. Unplug the UPS from utility power source and disconnect all connected loads. -
Page 11: Troubleshooting
Always “On” UPS Systems Inc. 8. TROUBLESHOOTING Please follow the guidelines below for common problems: Check UPS input plug and wiring. Check UPS input voltage. Please prepare the information as follows for service personnel: UPS model number and serial number Description of problem(s) in detail. -
Page 12: Specifications
Always “On” UPS Systems Inc. 9. SPECIFICATIONS MODEL Limousin II Capacity 600VA INPUT Voltage 120V, 220V +/-25% Frequency 50 or 60Hz +/-5% (auto sensing) Voltage (on battery) Simulated sine wave at Line Input +/-5% Frequency (on battery) 50 or 60Hz +/-0.5% OUTPUT ±13% of nominal (120V) -
Page 13: Contact Information
Always “On” UPS Systems Inc. 10. CONTACT INFORMATION 10.1. Additional Purchases or Upgrades Always “On” UPS Systems Inc. Bldg 1 – 150 Campion Road, Kelowna, BC, Canada, V1X 7S8 Phone: (250) 491-9777 Ext 451 Fax: (250) 491-9775 Email: sales@alwaysonups.com Website: www.alwaysonups.com 10.2.
