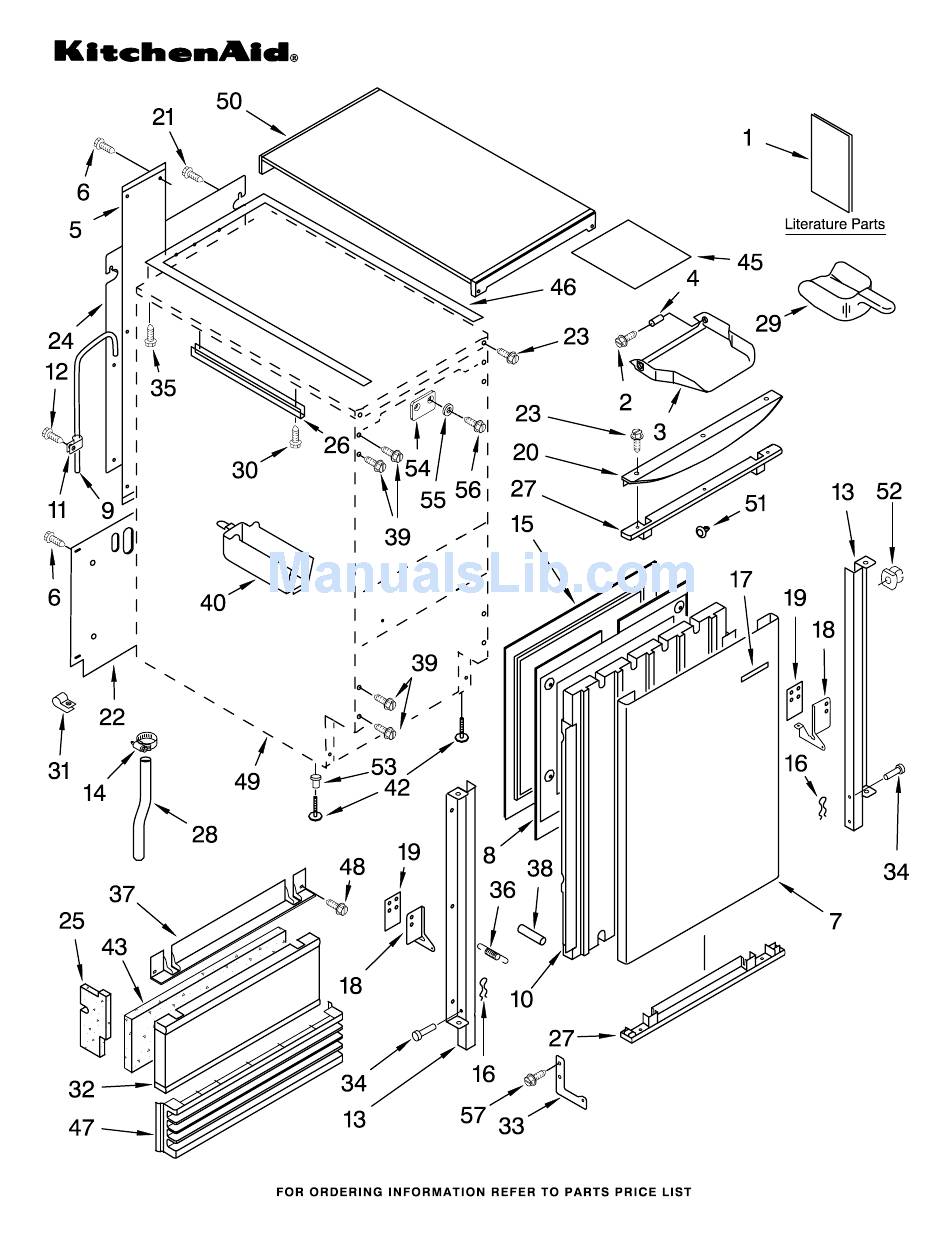

- Page 1 CABINET LINER AND DOOR PARTS ICE CUBE MAKER For Models: KUIS18PNJW6, KUIS18PNJB6 (White−Pump Model) (Black−Pump Model) 10−05 Litho In U.S.A. (djc) Part No. 8199463...
- Page 2 Bracket, Door 2217466 Left Side 2217465 Right Side 489503 Clamp 2217295 Gasket, Door 2208535 Clip Nameplate 2212760 White 2212762 Black For Models: KUIS18PNJW6, KUIS18PNJB6 (White−Pump Model) (Black−Pump Model) Illus. Part DESCRIPTION Hinge 2208425 Left Side 2208426 Right Side 2208401 Shim, Hinge...
- Page 3 EVAPORATOR, ICE CUTTER GRID AND WATER PARTS For Models: KUIS18PNJW6, KUIS18PNJB6 (White−Pump Model) (Black−Pump Model) 8199463...
- Page 4 EVAPORATOR ICE CUTTER GRID AND WATER PARTS For Models: KUIS18PNJW6, KUIS18PNJB6 (White−Pump Model) (Black−Pump Model) Illus. Part DESCRIPTION 2185758 Valve, Complete Water 2217286 Tube, Plastic 488208 Screw 2185523 Dispenser, Water 2217269 Evaporator 627018 Nut, Compression 841707 Insert, Tube 2172593 Tube, Water Fill...
-
Page 5: Pump Parts
8199463 PUMP PARTS For Models: KUIS18PNJW6, KUIS18PNJB6 (White−Pump Model) (Black−Pump Model) Illus. Part DESCRIPTION 2217220 Pump, Water (Complete) 3400884 Screw 8−18 x 5/8 2185677 Cover, Pump 2185585 Bracket, Connector Assembly... -
Page 6: Control Panel Parts
CONTROL PANEL PARTS For Models: KUIS18PNJW6, KUIS18PNJB6 (White−Pump Model) (Black−Pump Model) Illus. Part DESCRIPTION 2185738 Box, Control 2185657 Transformer 2185592 Assembly, Switch (ALSO ORDER #4) 4 2208317W Overlay 2304016 Control Board 2149705 Switch, Plunger 2185694 Lens, LED 2185692 Wiring Harness... -
Page 7: Unit Parts
UNIT PARTS For Models: KUIS18PNJW6, KUIS18PNJB6 (White−Pump Model) (Black−Pump Model) 8199463... - Page 8 2185960 Clamp (Power Cord) Grommet (4) 2217318 Production 4387558 Service 2208415 Tube, Process 489423 Screw 489472 Screw UNIT PARTS For Models: KUIS18PNJW6, KUIS18PNJB6 (White−Pump Model) (Black−Pump Model) Illus. Part DESCRIPTION 759112 Coil, Solenoid 2208413 Valve, Body 2187835 Wiring Harness, Condenser Fan...
-
Page 9: Optional Parts
8199463 OPTIONAL PARTS For Models: KUIS18PNJW6, KUIS18PNJB6 (White−Pump Model) (Black−Pump Model) Illus. Part DESCRIPTION Parts Not Illustrated and Optional Parts (Not Included) 8171307 Cleaner, Icemaker 503695 Sealer, Cork (1/4 Pound) 797403 Cement, Insulation (1 Oz.) 505587 Sealer, Mastic (1 Qt.) 212643 Sealer, Gum (22 Pcs.
