MPEG Encoder

If you have purchased the DVS-168 or DVS-644 options see section 4.10.1 and 4.10.4 of the Manual
for details.
If you've purchased the MPEG2 option you can also refer to section 2.6 and 4.10.4 of the Manual
for details. The supplied cables must also be installed as shown below.
Depending upon how your DASDEC-II was configured when it left the factory it likely shipped
with three internal radio tuners. Any of the three can serve as an AM, FM or NOAA tuner.
Route and connect the necessary antenna lines to the DASDEC-II before proceeding.
1) Log into your DASDEC-II by launching an Internet browser and typing the IP Address of your
DASDEC-II into the browsers address bar. Enter the User Name "Admin" and then enter the
password for the Admin account. Then click the "Login" button.
Quick Start Guide for Your DASDEC II

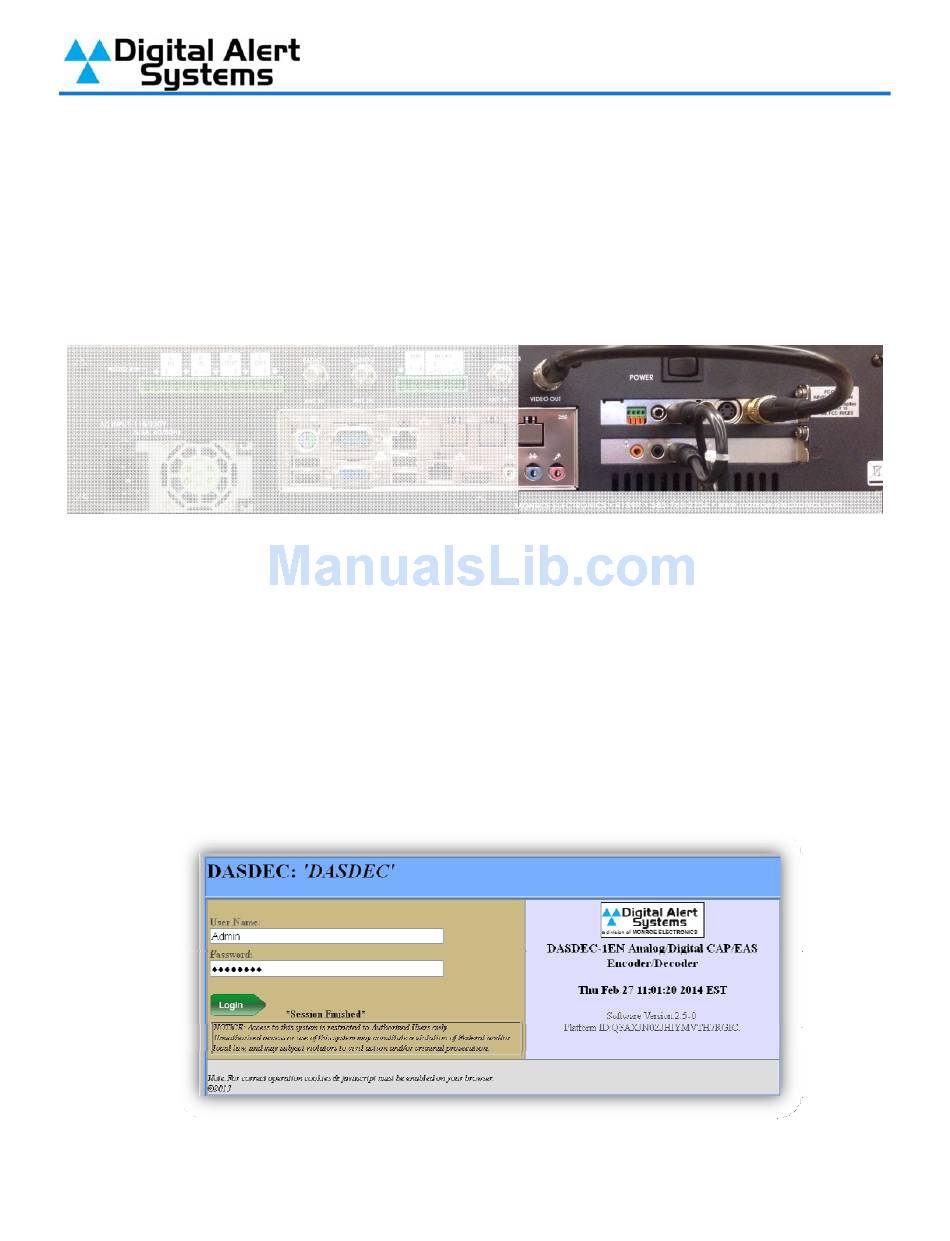

Optional MPEG2 PCI Encoder Card Audio/Video connections

Step 3 – Assigning Radio Tuners
Page 13 of 40
