Summary of Contents for C.T.M. HS-2850
- Page 1 C.T.M. Mini Power Chair C.T.M. Mini Power Chair C.T.M. Mini Power Chair HS-2850 User's Manual...
-
Page 2: Table Of Contents
HS-2850 User's Manual TABLE OF CONTENTS INTRODUCTION ---------------------------------------------------------1 IMPORTANT PRECAUTIONS ------------------------------------------2 ELECTROMAGNETIC INTERFERENCE AND WARNINGS -------3 IDENTIFICATION OF PARTS ------------------------------------------5 OPERATING YOUR POWER CHAIR ---------------------------------8 DISASSEMBLING / RE-ASSEMBLING YOUR POWER CHAIR CHARGING THE BATTERIES ----------------------------------------14 CARE AND MAINTENANCE ------------------------------------------16 TROUBLESHOOTING... -
Page 3: Introduction
Also, retain this booklet for future reference. If you have any question, please contact your local dealer or: C.T.M.HOMECARE PRODUCT, INC. 6191 Schaefer Ave Suite B Chino CA 91710 Tel : +909-590-1388 Fax : +909-590-3365 E-Mail : ctm@ctmhomecare.com http : //www.ctmhomecare.com... -
Page 4: Important Precautions
HS-2850 User's Manual IMPORTANT PRECAUTIONS Only one person at a time can ride a C.T.M. Power Chair. Maximum load is 136 kg/300 lbs. Turn off power before getting on or off your power chair. Always drive carefully with your feet on the footplate and be aware of others in your area. -
Page 5: Electromagnetic Interference And Warnings
HS-2850 User's Manual ELECTROMAGNETIC INTERFERENCE AND WARNINGS CAUTION: It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your power chair. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. - Page 6 HS-2850 User's Manual 3.Long-range transmitters and transceivers such as commercial broadcast transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios. Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM radios, TV sets, CD players, and cassette players, and small appliances, such as electric shavers and hair dryers, so far as we know, are not likely to cause EMI problems to your motorized scooter.
-
Page 7: Identification Of Parts

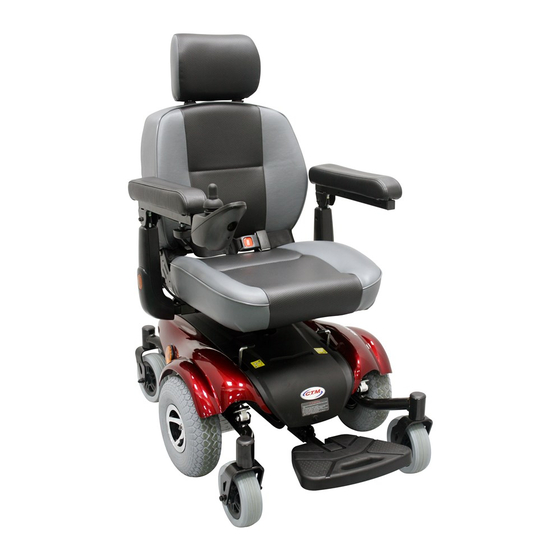

19" Mid-Back Seat w/ Adj. Headrest & Seat Belt Extended Footplate with 3-Angle Adjustment 10" Drive Wheels Figure 1 - HS-2850 Power Chair Front View Armrest height Adjustment Thumbscrews Self Diagnostic Warning Lights & Battery Gauge Armrest width Speed Control Button... - Page 8 HS-2850 User's Manual JOYSTICK Self Diagnostic Warning Lights Flashing of lights indicates there is a problem within power chair. See page 17 for more information. Battery Gauge There are eleven LED lights on joystick. When all LED lights are on, batteries are fully charged;...
- Page 9 HS-2850 User's Manual FOOTPLATE Footplate The footplate can be adjusted according to your specific needs. It can be width & adjusted vertically or horizontally. To adjust footplate, loosen screw and arrange height to desired position, then, tightened screw to secure plate in place. (D & E)
-
Page 10: Operating Your Power Chair
HS-2850 User's Manual OPERATING YOUR SCOOTER Before beginning your journey with your new power chair, make sure power chair is on a level surface and clear of any obstacle. Although your power chair is able to climb slopes, it is safer to practice on a leveled surface. - Page 11 HS-2850 User's Manual Headrest Adjustment By pressing (k) to adjust the headrest (J) up & down to a comfortable position. Figure 11 Figure 11 Seat Adjustment By lifting up lever (L) to rotate seat (U) Note: Do not swivel seat angle over 90 degrees, to prevent wires twist.
- Page 12 HS-2850 User's Manual (B). Seat's Depth Adjustment By releasing fixation screws from back sides, and adjust to a comfortable position, then tighten with fixation screws. Fixation Screw Fixation Screw Fixation Screw Fixation Screw Figure 14 Figure 14 (C). Backrest Angle Adjustment...
- Page 13 HS-2850 User's Manual 3.Release all backrest's vel-cro straps. 4.Adjust frame to a comfortable width position and adjust vel-cro to appropriate tightness, then put backrest pad back, complete by tighten 9pcs of width fixation screws. Rear View Rear View Figure 18...
-
Page 14: Disassembling / Re-Assembling Your Power Chair
HS-2850 User's Manual DISASSEMBLING / RE-ASSEMBLING YOUR POWER CHAIR Taking apart your power chair enables you to save space when keeping it in storage or carrying it along in your vehicle. Having power chair disassembled is easier than ever since no tools are required. - Page 15 HS-2850 User's Manual Battery Removal 1.Disconnect two battery plugs (Q) (See Fig. 23). 2.Unfasten velcro strap that hold batteries in place (See Fig. 24). 3.Remove two batteries (S) (See Fig. 25). Figure 23 Figure 23 Figure 24 Figure 24 Figure 25 Figure 25 Be careful when carry the batteries as they are heavy.
-
Page 16: Charging The Batteries
"D" position. Charging the batteries 1.Position HS-2850 power chair next to a standard wall outlet. 2.Insert the the battery charger cord into the chair input battery charging socket, which is located on the frout of the joystick. - Page 17 HS-2850 User's Manual The time needed to recharge will vary depending on depletion of batteries. Charging for longer than necessary will not harm batteries. They cannot be overcharged. Keep in mind these rules Fully charge batteries at least once a month; more if you use power chair regularly.
-
Page 18: Care And Maintenance
HS-2850 User's Manual CARE AND MAINTENANCE Taking care of your power chair will keep it in top-notch condition. It is recommended that you have your dealer to provide a thorough inspection and servicing. Regular cleaning will reveal loose or worn parts and enhance the smooth operation of your powered scooter. - Page 19 HS-2850 User's Manual TIRE PRESSURE (for air-filled tires only): The condition of tires and maintenance of specified tire pressures not only influence tire life, but also effect road safety to a very considerable extent. Incorrect pressure is often a cause of tire problems and could result in an accident. The recommended tire pressure is 35 psi.
-
Page 20: Troubleshooting
HS-2850 User's Manual TROUBLESHOOTING TROUBLESHOOTING Flash codes indicate the nature of an abnormal condition directly from the SHARK lnformation Gauge. Without the use of any servicing tools, the condition can be simply diagnosed. Flash Code Description Possible stall timeout or user error. - Page 21 HS-2850 User's Manual Other Problems Power chair will not move when power is turned on : 1.Check Battery Gauge on joystick. All LED lights should be on. 2.Check Self-Diagnostic Warning Light. It should be steady; if it is flashing, see the chart on page 17 for problem identification.
-
Page 22: Technical Specifications
HS-2850 User's Manual SPECIFICATION Overall Length 39" Overall Width 24" Overall Height 42.5" Wheels: Front 6" Wheels: Middle 10" Wheels: Rear 6" Weight w/ Batteries 180.8 lbs Max. Speed 4.2 mph Weight Capacity 300 lbs Ground Clearance 2.4" Grade Climbable...
