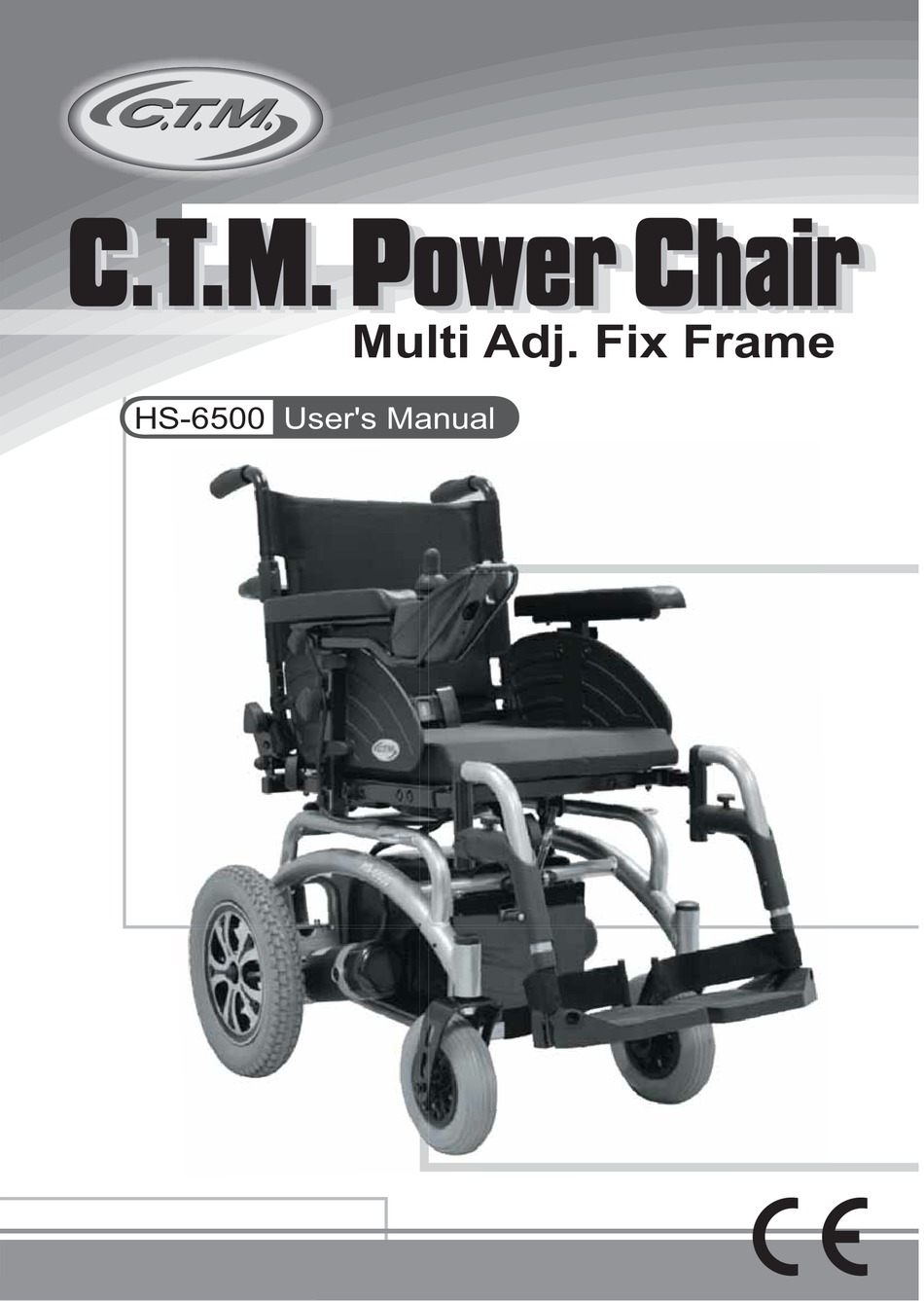

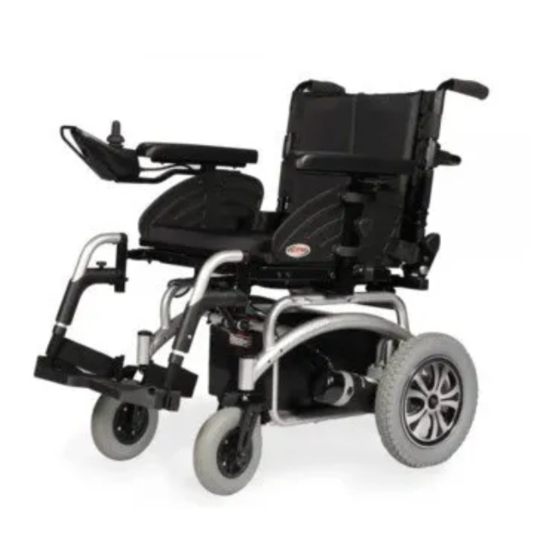

C.T.M. Power Chair
C.T.M. Power Chair
C.T.M Power Chair
Multi Adj. Fix Frame
HS-6500
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-6500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for C.T.M. HS-6500

Summary of Contents for C.T.M. HS-6500

  • Page 1 C.T.M. Power Chair C.T.M. Power Chair C.T.M Power Chair Multi Adj. Fix Frame HS-6500 User's Manual...

  • Page 2: Table Of Contents

    HS-6500 User's Manual Table of Contents Introduction.................1 Electromagnetic Interference and Warnings......3 Safety Instructions...............5 Initial Overview..............6 Operation................7 Disassembling..............16 Safe Driving Techniques.............18 Batteries and Charging............20 Tire..................21 Maintenance,and Cleaning..........22 Troubleshooting..............23 Specification..............25...

  • Page 3: Introduction

    Mobility Scooters and Power Chairs that are developed by a team of specialists with outstanding design skills and competence. The HS-6500 is an excellent chair that includes ergonomic features. It combines safety and comfort and gives users extraordinary experience and convenience in operation.
  • Page 4 HS-6500 User's Manual We wish you an enjoyable riding experience. If you have any questions, you can contact: CHIEN TI ENTERPRISE CO., LTD. No.13, Lane 227, Fu Ying Rd., Hsin Chuang,Taipei, Taiwan, Tel : +886-2-2903-2987 Fax : +886-2-2903-8807 E-Mail : sales@chienti.com.tw http : //www.chienti.com.tw...

  • Page 5: Electromagnetic Interference And Warnings

    HS-6500 User's Manual ELECTROMAGNETIC INTERFERENCE AND WARNINGS CAUTION: It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your power chair. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones.
  • Page 6 HS-6500 User's Manual 3.Long-range transmitters and transceivers such as commercial broadcast transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios. Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM radios, TV sets, CD players, and cassette players, and small appliances, such as electric shavers and hair dryers, so far as we know, are not likely to cause EMI problems to your power chair.

  • Page 7: Safety Instructions

    HS-6500 User's Manual SAFETY INSTRUCTIONS Safety is the main consideration when practicing with your chair. It is required that you read and comprehend all the operating and safety instructions discussed in this manual. And ensure your chair is correctly fitted and adjusted by your dealer or the prescribing healthcare professional.

  • Page 8: Initial Overview

    Height Adjustable Armrests Armrest Disassemble Knob Fiber Glass Reinforced Seat Belt Nylon Leg Rests Seat Incline Adjustment Figure 1 - HS-6500 Power Chair Front View Battery Level Indicator Support Brace On/Off Switch Backrest Angle Adjustment Speed Indicator Speed Control Button...

  • Page 9: Operation

    HS-6500 User's Manual OPERATION Controller 1.By press On/Off Switch (A), Battery Level Indicator (B) will light up. 2.Battery Level Indicator (B) indicates power capacity. 3.Speed Control Button (C), (D): Accelerate speed by pressing button (C) Decelerate speed by pressing button (D).
  • Page 10 HS-6500 User's Manual Armrest Height Adjustment 1.Release Knob (I), adjust armrest height to the required hole's position; 2.Aim for the hole's position to tighten Knob (I). Figure 8 Figure 8 Armrest's Width Adjustment 1.Release both side's width fixation screws (J).
  • Page 11 HS-6500 User's Manual Seat Incline Adjustment 1.Release knob (L). 2.Lift seat up to adjust to required hole's position, then tighten with knob (L). Figure 11 Figure 11 Knob (L) must be tightened properly to prevent any accident. For safety concern, do not driving when seat is in incline condition.
  • Page 12 2.Seat Belt can be unfastened by pressing down the red button (Q2). Freewheel Levers (Q2) 1.For your convenience, C.T.M. HS-6500 is equipped with two freewheel levers. These levers allow you to disengage the drive motors and maneuver the chair Figure 15 Figure 15 manually when encountered malfunction or stop.
  • Page 13 HS-6500 User's Manual Backrest Angle Adjustment 1.Release backrest's vel-cro (U1) 2.Release side's screw (P) from backrest (U). 3.Adjust backrest (U) to required position. 4.Aim two knobs (V) at hole's position, then tighten. Figure 18 Figure 18 For safety concern, do not driving when seat is in incline condition Backrest's Width Adjustment 1.Take off backrest pad as illustration by release it's vel-cro.
  • Page 14 HS-6500 User's Manual 5.Adjust support brace to a comfortable position and reassemble by aiming for the holes then vise versa steps 3~4. (See Fig. 23). 6.Adjust vel-cro to appropriate tightness; and put back backrest pad. Figure 23 Figure 23 Option-Climber Assembly 1.Take off both side's pins from climber comp to disassemble climber holder.
  • Page 15 HS-6500 User's Manual 4.According to drawing, aim climber bracket onto climber holder, and insert pins into hole position. (See Fig. 27). 5.Completed. (See Fig. 28). Figure 27 Figure 27 Figure 28 Figure 28 Option-Lighting Assembly 1.Screw must aim at the hole. (See Fig. 30).
  • Page 16 HS-6500 User's Manual 4.Click rear lights onto frame. (See Fig. 34). 5.Aim and tighten screws and bolts. (See Fig. 35). 6.Using tool to tighten screws and bolts. (See Fig. 36). Same assembly steps for both sides, by repeat 1~3 steps.
  • Page 17 HS-6500 User's Manual 11.Coordinate and fix cables by using 8 cord clips. (See Fig. 41 & 42). Cord Clip Cord Clip Figure 41 Figure 41 Figure 42 Figure 42...

  • Page 18: Disassembling

    HS-6500 User's Manual DISASSEMBLING Disassemble Footrest Press pin (W) downward, then turn footrest (W1) outward and lift up to take off. Disassemble Armrest 1.By releasing knob (X), 2.For the armrest with controller, you have to detach controller's wire harness (X1) and clip (X2) first to disassemble armrest.
  • Page 19 HS-6500 User's Manual Batteries are heavy, please be extra careful when removing them Fuse Replacement 1.Disassemble batteries according to steps 1~4. 2.Open fuse box (A3), remove fuse (A4). 3.Replace with backup fuse and close up the box. (A3) (A4) Figure 51...

  • Page 20: Safe Driving Techniques

    HS-6500 User's Manual SAFE DRIVING TECHNIQUES Driving your Chair Before sitting on your chair, verify: 1. The chair is switched off. 2. Swing away the armrests and leg rests if appropriate. 3. The battery charger is disconnected from both the chair and the wall outlet.
  • Page 21 HS-6500 User's Manual Chair Operation on surfaces that require Special Care When driving up or down ramps it is recommended that the user: 1. Visually checks to see if the angle of the slope is less than 10 degrees. 2. Checks to see that the ramp surface is roughened to prevent slippage.

  • Page 22: Batteries And Charging

    Charging the batteries : 1. Position HS-6500 power chair next to a standard wall outlet. 2. Connect the battery charger to the wheelchair input battery charging socket, which is located on the front of the controller.

  • Page 23: Tire

    HS-6500 User's Manual TIRE You should inspect the tires frequently for damage, the presence of foreign bodies, unusual wear and sufficient tread depth. Tread depth should if possible not be allowed to drop below 1/16". If replacement tires are needed, please contact the nearest C.T.M.

  • Page 24: Maintenance,And Cleaning

    HS-6500 User's Manual MAINTENANCE, AND CLEANING An electric wheelchair needs some basic attention to ensure it provides reliable service. We recommend that the user ensures that the power wheelchair is checked regularly for maintenance requirements and receives a thorough, annual maintenance check up.

  • Page 25: Troubleshooting

    HS-6500 User's Manual TROUBLESHOOTING Here are some suggestions about solving problems you may have with your power chair. There are 10 LED Self-Diagnostic Warning Lights on the Control Panel. To check the Self-Diagnostic Warning Lights, turn the power chair on and count the number of flashes.
  • Page 26 HS-6500 User's Manual Other Problems Power chair will not move when the power is turned on: 1.Check the Battery Level Indicator on the joystick. All the LED lights should be on. 2.Check the Self-Diagnostic Warning Light. It should be steady. If it is flashing, see the chart on page 20 for the problem identification.

  • Page 27: Specification

    HS-6500 User's Manual SPECIFICATION Overall Length 1040 mm / 41" Overall Width 580 mm / 23" Overall Height 920 mm / 36" Wheels: Front 200 mm / 8" Wheels: Middle Wheels: Rear 320 mm / 13" Weight w/ Batteries 74 kg / 163 lbs Max.
