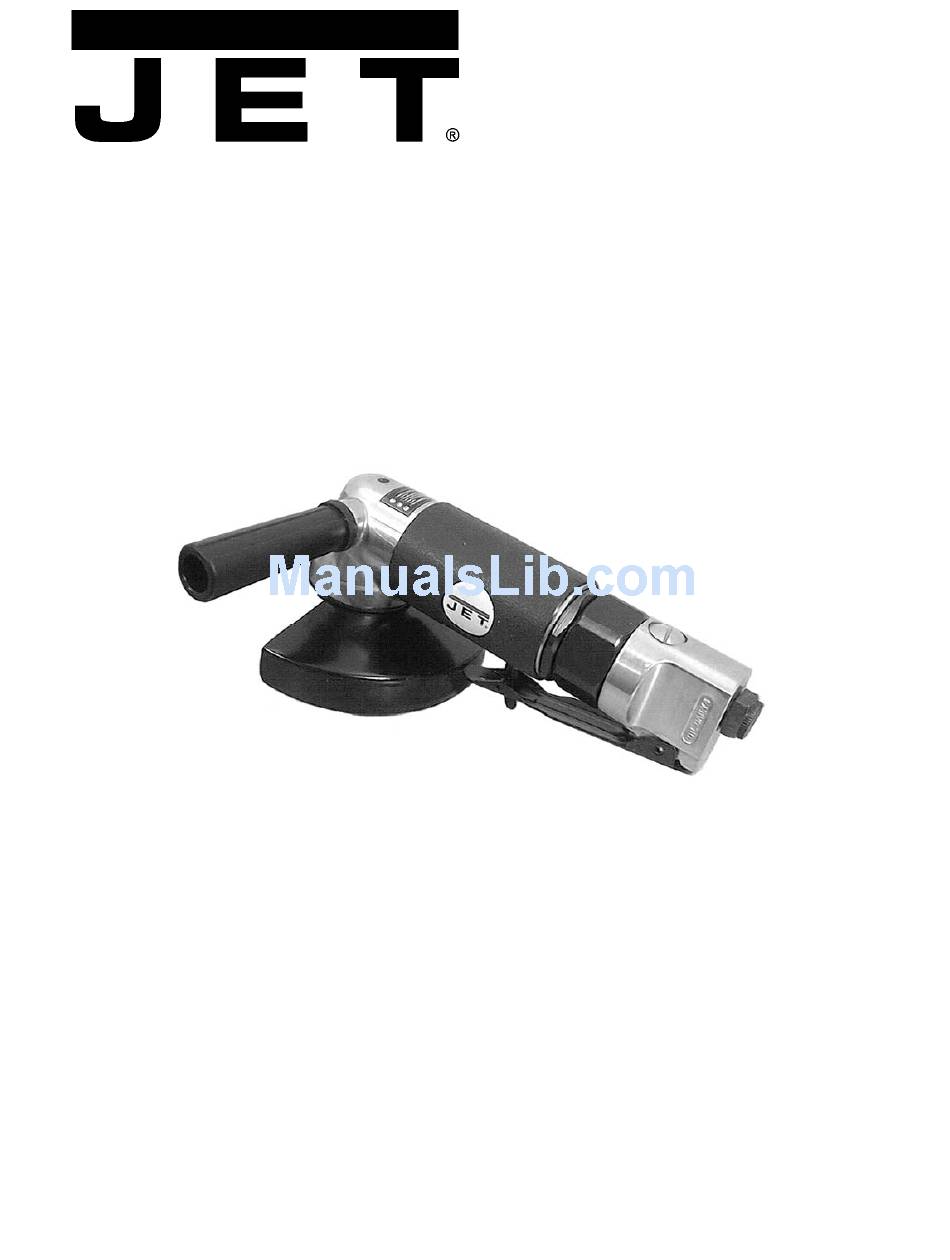

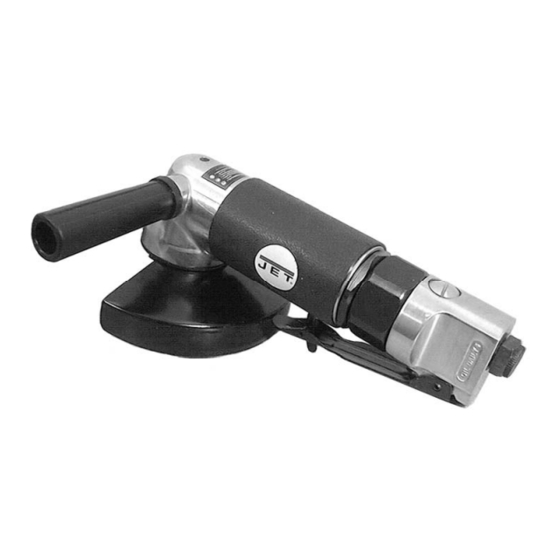

- Page 1 Operating and Maintenance Instructions 5” (or 4-1/2”) Angle Grinder Model JNS-185 WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-JNS185 Ph.: 800-274-6848 Revision C1 06/2012 www.waltermeier.com Copyright © Walter Meier (Manufacturing) Inc.
-
Page 2: Warranty And Service
Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848. - Page 3 Warning 1. Read and understand this entire manual before attempting assembly or operation. 2. Read and understand the warnings posted on the tool and in this manual. Failure to comply with all of these warnings may cause serious injury. 3. Replace warning labels if they become obscured or removed. 4.
-
Page 4: Specifications
This means that if precautions are not heeded, it may result in serious injury or possibly even death. - - SAVE THESE INSTRUCTIONS - - Specifications Stock Number..........................JNS-185 Wheel Size (in.) ..................Ø 4-1/2 x 7/8 Bore, Ø 5 x 7/8 Bore Spindle Thread (in./TPI) ........................5/8-11 Free Speed [No Load] (RPM) ......................11,000 Required Air Pressure (PSI)........................ - Page 5 Handle and 2 Wrenches. Any missing parts continual operation, it should be oiled every 1 to should be reported to your JET distributor. Read 2 hours. This may be done using an in-line oiler, this instruction manual thoroughly for operation, or manually.
-
Page 6: Troubleshooting
4. Clean the air inlet filter cartridge weekly. Air Connection 5. Line pressure should increased 1. Make sure that the air compressor supplies accordingly to compensate for extra long air the correct CFM for the grinder. hoses (usually over 25 feet). Inside diameter of air hoses should be a minimum of 3/8”. - Page 7 Parts List for JNS-185 Angle Grinder Index No Part No Description Size 1....JNS185-1....Flange Nut .....................1 3....JNS185-3....Screw .....................4 4....JNS185-4....Lock Washer ..................4 5....JNS185-5....Disc Cover .....................1 6....JNS185-6....Spindle ....................1 7....JNS185-7....Flat Key....................1 8....JNS185-8....Ball Bearing ............6202Z ......1 9....JNS185-9....Spindle Collar ..................1 10.....JNS185-10....
- Page 8 Index No Part No Description Size 31.....JNS185-31....Valve Stem.....................1 32.....JNS185-32....O-Ring ..............Ø5x2.4mm....1 33.....JNS185-33....O-Ring ..............Ø 9x2mm ....1 34.....JNS185-34....Roll Pin ....................2 35.....JNS185-35....Pendulum ....................8 36.....JNS185-36....Locking Nut ...................1 37.....JNS185-37....Coupling Nut ..................2 38.....JNS185-38....Throttle Valve Housing ................1 39.....JNS185-39....Nut ......................1 40.....JNS185-40....
