Receiver Features (Hdmi-Opt-Rx200R/Rx100R/Rx100); Applications - Lightware HDMI-OPT-TX200R User Manual

 Universal power adaptor – HDMI-OPT transmitters are equipped with a universal
 Locking DC connector – Special plug of wall adaptor ensures safe power supply.
 Rack mounting options – Several mounting methods ensure the universal usage.

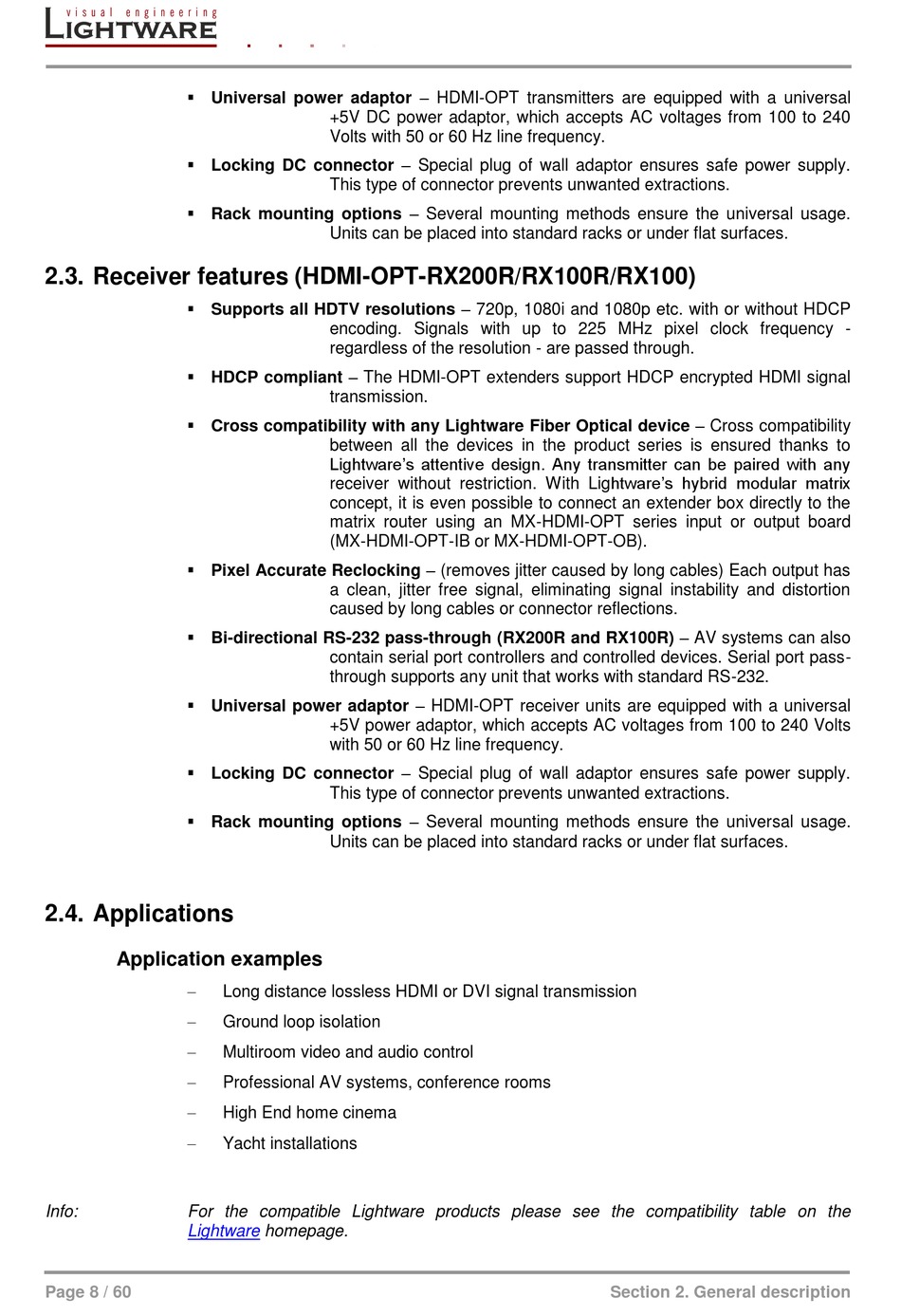

2.3. Receiver features (HDMI-OPT-RX200R/RX100R/RX100)

 Supports all HDTV resolutions – 720p, 1080i and 1080p etc. with or without HDCP
 HDCP compliant – The HDMI-OPT extenders support HDCP encrypted HDMI signal
 Cross compatibility with any Lightware Fiber Optical device – Cross compatibility
 Pixel Accurate Reclocking – (removes jitter caused by long cables) Each output has
 Bi-directional RS-232 pass-through (RX200R and RX100R) – AV systems can also
 Universal power adaptor – HDMI-OPT receiver units are equipped with a universal
 Locking DC connector – Special plug of wall adaptor ensures safe power supply.
 Rack mounting options – Several mounting methods ensure the universal usage.

2.4. Applications

Application examples






Info: For the compatible Lightware products please see the compatibility table on the
Lightware
Page 8 / 60
+5V DC power adaptor, which accepts AC voltages from 100 to 240
Volts with 50 or 60 Hz line frequency.
This type of connector prevents unwanted extractions.
Units can be placed into standard racks or under flat surfaces.
encoding. Signals with up to 225 MHz pixel clock frequency -
regardless of the resolution - are passed through.
transmission.
between all the devices in the product series is ensured thanks to
Lightware's attentive design. Any transmitter can be paired with any
receiver without restriction. With Lightware's hybrid modular matrix
concept, it is even possible to connect an extender box directly to the
matrix router using an MX-HDMI-OPT series input or output board
(MX-HDMI-OPT-IB or MX-HDMI-OPT-OB).
a clean, jitter free signal, eliminating signal instability and distortion
caused by long cables or connector reflections.
contain serial port controllers and controlled devices. Serial port pass-
through supports any unit that works with standard RS-232.
+5V power adaptor, which accepts AC voltages from 100 to 240 Volts
with 50 or 60 Hz line frequency.
This type of connector prevents unwanted extractions.
Units can be placed into standard racks or under flat surfaces.
Long distance lossless HDMI or DVI signal transmission
Ground loop isolation
Multiroom video and audio control
Professional AV systems, conference rooms
High End home cinema
Yacht installations
homepage.
Section 2. General description
