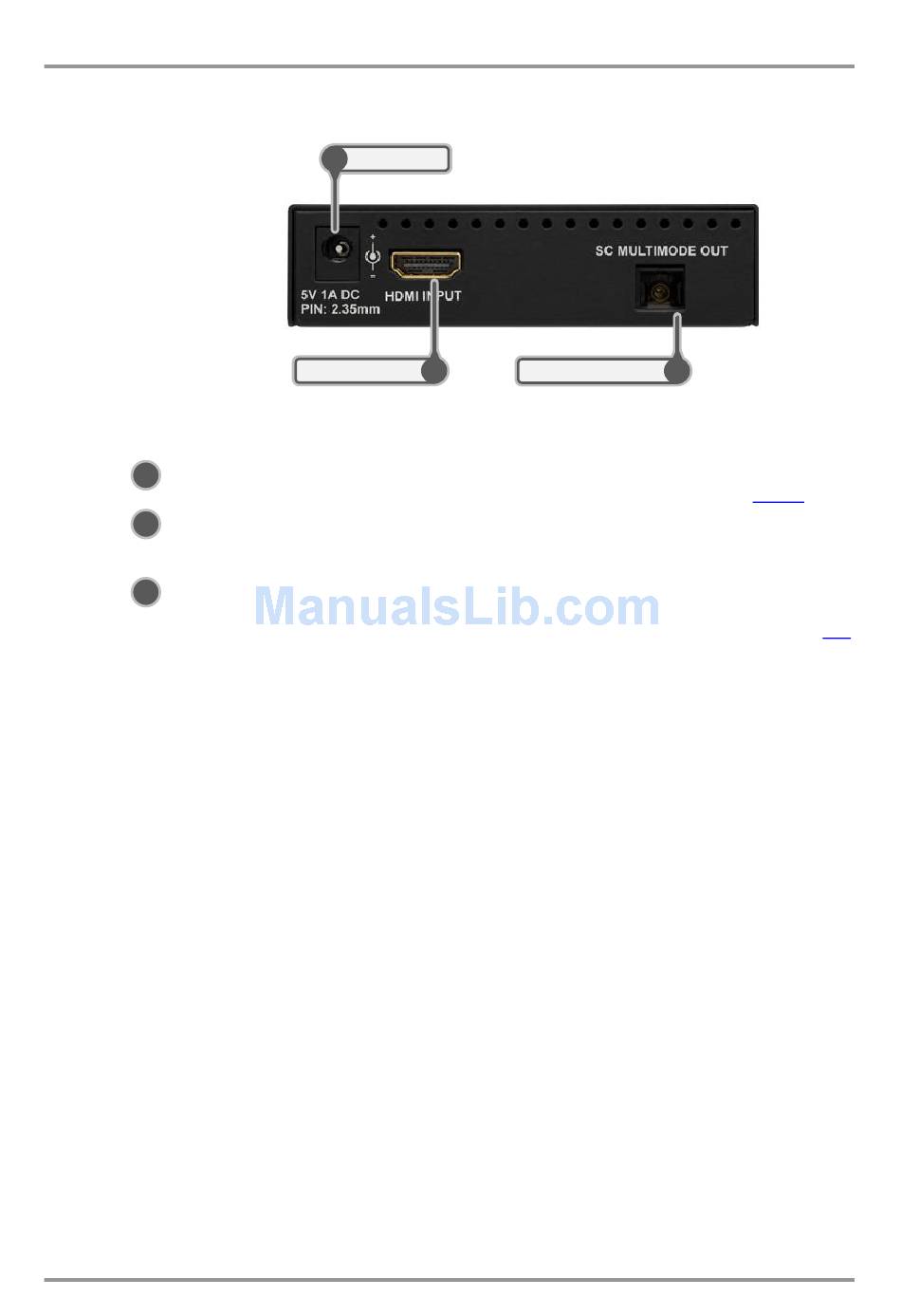

3.6. HDMI-OPT-TX100R rear view

HDMI INPUT
1
SC Fiber Output
2
DC +5V in
3
Section 3. Controls and connections
DC +5V in
3
HDMI INPUT 1
Figure 3-4. Rear view
Connect one HDMI cable between the HDMI source and the
transmitter unit. For more information see chapter
Connect a multimode single fiber optical cable between the
transmitter unit and the receiver unit (or a Lightware Hybrid
Modular Matrix equipped with optical input card).
Connect the output of the supplied +5V DC power adaptor.
CAUTION! Warranty void if damage occurs due to use of a
different power source. For more information see chapter
HDMI-OPT-TX and RX family
SC Fiber Output 2
User's Manual
