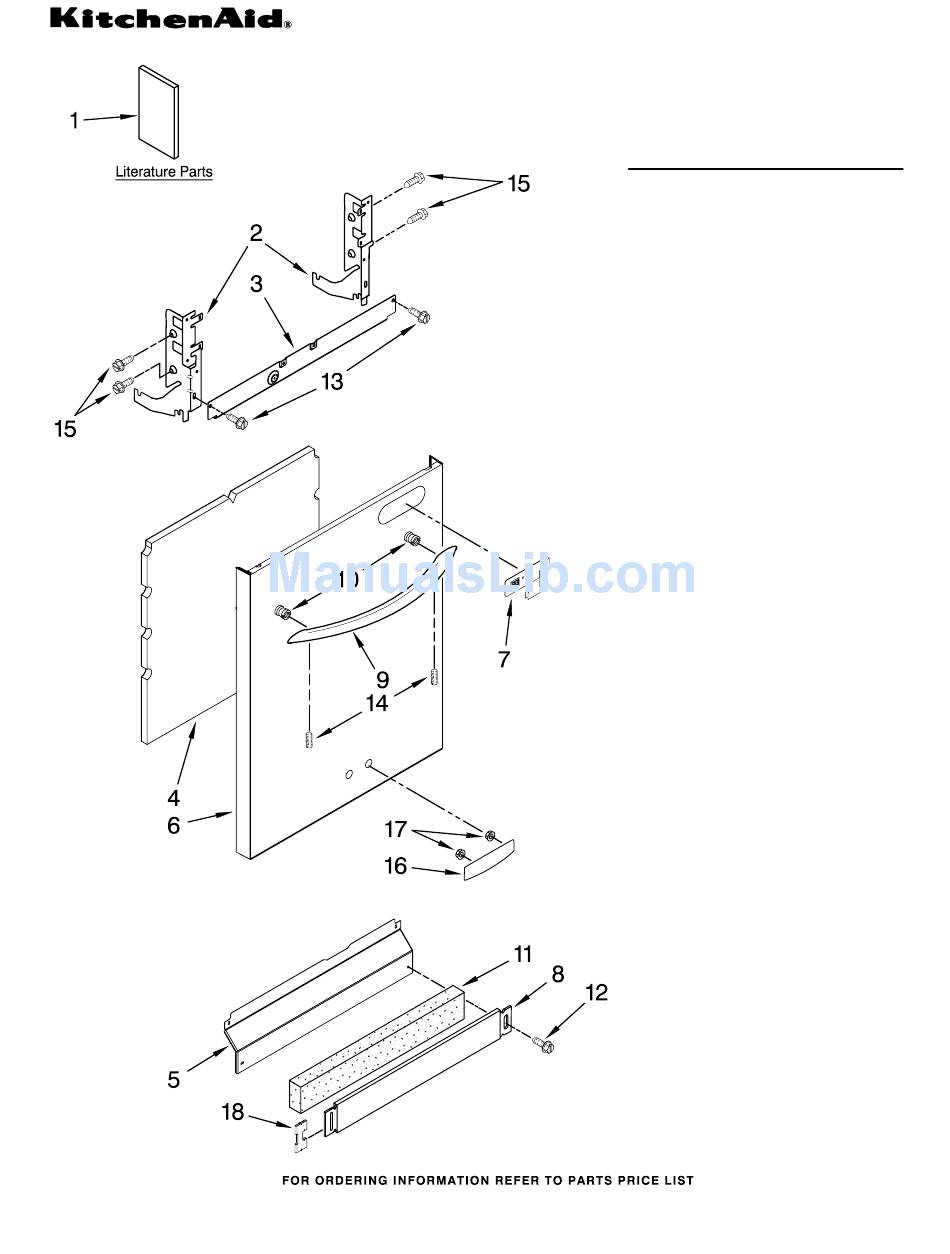

DOOR AND PANEL PARTS
For Models: KUDU03STBL2, KUDU03STWH2, KUDU03STSS2
(Black)
(White)
(Stainless)
Illus.
No.
1
2
3
4 W10073520 Insulation, Door
5
6
7
8
9
10
11 W10073550 Insulation,
12
13
14
15
16
17
18
1
UNDERCOUNTER
DISHWASHER
Part
No.
DESCRIPTION
Literature Parts
W10078153 Instructions,
Installation
W10164239 Energy Guide
W10084169 Guide, Use & Care
Spanish
W10084091 Guide, Use & Care
English/French
W10130990 Tech Sheet
Arm, Hinge
8534854 Left
8534853 Right
8564886 Stiffener, Door
Access Panel
8573255 Black
8573256 White
Panel, Full Front
(Includes Items
4,10,16 & 17)
W10078003 Black
W10078004 White
W10137622 Stainless
Overlay
W10077798 Black
W10077799 White
W10077801 Stainless
Toe Panel
(Includes Items
11 & 18)
8558252 Black
8558253 White
Handle
(Includes Item 14)
W10083936 Black
W10083937 White
W10083935 Stainless
8564951 Stud, Mounting
Toe Panel
Screw
302868 Black
3400836 White
304392 Screw
8534008 Screw
3400071 Screw
Nameplate
W10021860 Black
W10021870 White
W10021850 Stainless
2004333 Nut
8269016 Clip, Grounding
