KitchenAid KUDU03FTPA2 Parts List
KitchenAid KUDU03FTPA2 Parts List

KitchenAid KUDU03FTPA2 Parts List

Undercounter dishwasher

Advertisement

Quick Links

10−07 Litho in U.S.A. (els)

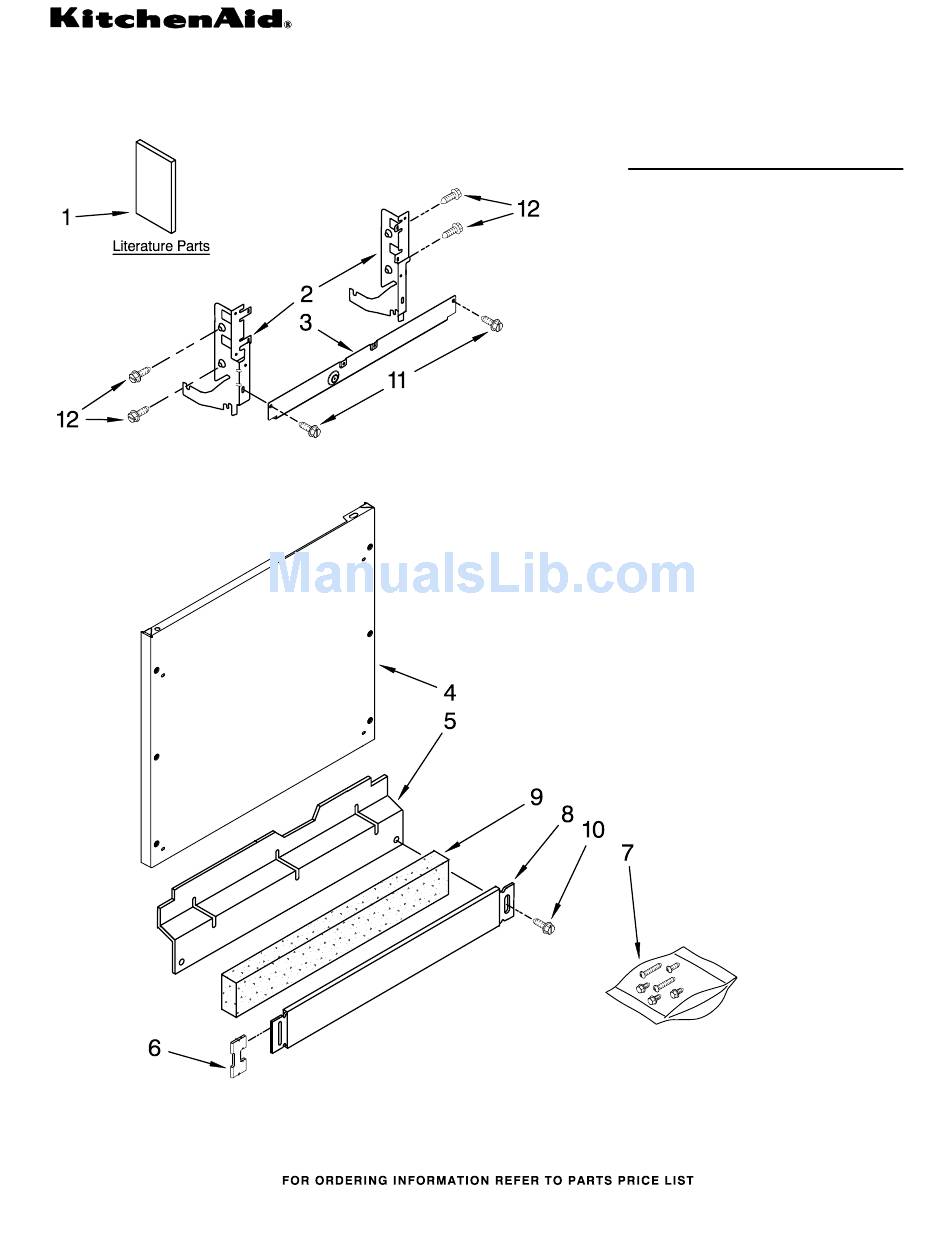

DOOR AND PANEL PARTS
For Model: KUDU03FTPA2
(Panel Ready)
1
UNDERCOUNTER
DISHWASHER
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10078153 Instructions,
Installation
W10164239 Energy Guide
W10084169 Guide, Use & Care
Spanish
W10084091 Guide, Use & Care
English/French
W10082651 Tech Sheet
2
Arm, Hinge
8534854 Left
8534853 Right
3
8564886 Stiffener, Door
4
8535133 Panel, Front
5
Access Panel
8573255 Black
6
8269016 Clip, Grounding
7
8531882 Screws, Bag
Door Assembly
8
Toe Panel
(Includes Item
6 & 9)
8558252 Black
9 W10073550 Insulation,
Toe Panel
10
302868 Screw
11
304392 Screw
12
3400071 Screw
Part No. W10163112 Rev. A
