Sharpe D-5-55 Instructions - Parts Manual

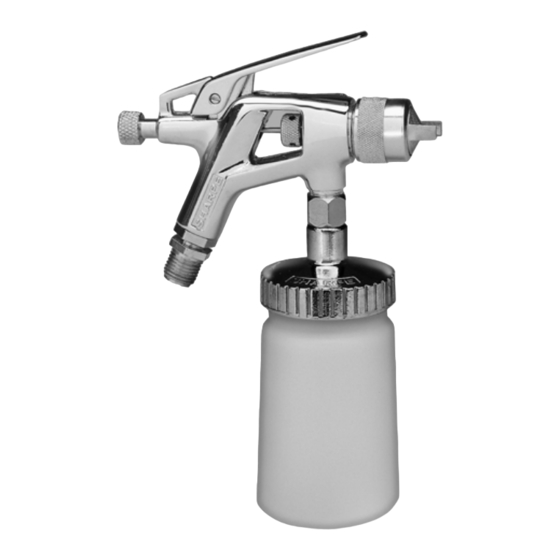

Siphon feed detail spray gun
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Instructions/Parts
D-5-55
Siphon Feed Detail Spray Gun
For siphon feed spraying of automotive colors and clears. Ideal for touch-up and detail
work.
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
Maximum Air Inlet Pressure: 50 psi (345 kPa, 3.4 bar)
Part No. 7030 Spray Gun and 7510 Cup
309991E
ENG
II 2 G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-5-55 and is the answer not in the manual?

Questions and answers

Related Manuals for Sharpe D-5-55

Summary of Contents for Sharpe D-5-55

  • Page 1 Instructions/Parts D-5-55 309991E Siphon Feed Detail Spray Gun For siphon feed spraying of automotive colors and clears. Ideal for touch-up and detail work. Important Safety Instructions Read all warnings and instructions in this manual. Save these instructions. Maximum Air Inlet Pressure: 50 psi (345 kPa, 3.4 bar) Part No.
  • Page 2 WARNING FIRE AND EXPLOSION HAZARD Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire and explosion: • Use equipment only in well ventilated area. • Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop cloths (potential static arc).
  • Page 3 Make sure no air restrictions, such as low-volume cheater-valves, obstruct the air flow. If an air adjust- ing valve is desired, use a SHARPE Air Adjusting Valve 24AAV (part no. 2210), 36AAV-HOV (part no. 3310) or HOV (part no. U04410).

  • Page 4: Operation

    Operation Operation Pressure Relief Procedure Spraying NOTICE Excessive atomizing air pressure can increase over-spray, reduce transfer efficiency, and result in a Follow Pressure Relief Procedure when you stop poor quality finish from dry spray. spraying and before cleaning, checking, or servicing equipment.

  • Page 5: Cleaning And Maintenance

    Cleaning and Maintenance Cleaning and Maintenance Cleaning Gun and Cup NOTE: Refer to Compliant Cleaning Methods to comply with air quality laws if applicable. NOTICE • Do not submerge gun in solvent. Solvent dissolves Follow Flushing procedure, page 4. lubricant, dries out packings, and may clog air pas- Use a rag moistened in solvent to wipe cup lid sages.

  • Page 6: Troubleshooting

    Troubleshooting Troubleshooting Problem Cause Solution Normal pattern No action necessary Right Dirty or damaged air cap or fluid Rotate air cap 180°. nozzle. If pattern follows air cap, problem is in air cap. Clean and inspect. If pattern is not corrected, replace air cap. If pattern does not follow the air cap, the problem is Wrong with the fluid nozzle.
  • Page 7 Parts Parts 10c* 4* 4* 10d* Part No. 7030, D-5-55 Detail Spray Gun Ref. Part No. Description Qty. Ref. 118749 • Knob Part No. Description Qty. 118741 • Packing Nut 29001 Gun Body 10c* 29028 • Packing 29054 Air Valve Assembly...

  • Page 8: Year Limited Warranty

    2 Year Limited Warranty Sharpe warrants this product to the original user against defective material or workmanship for a period of 2 years from the date of purchase. Sharpe reserves the right to determine whether the part or parts failed because of defective material, workmanship, or other causes.

Table of Contents
