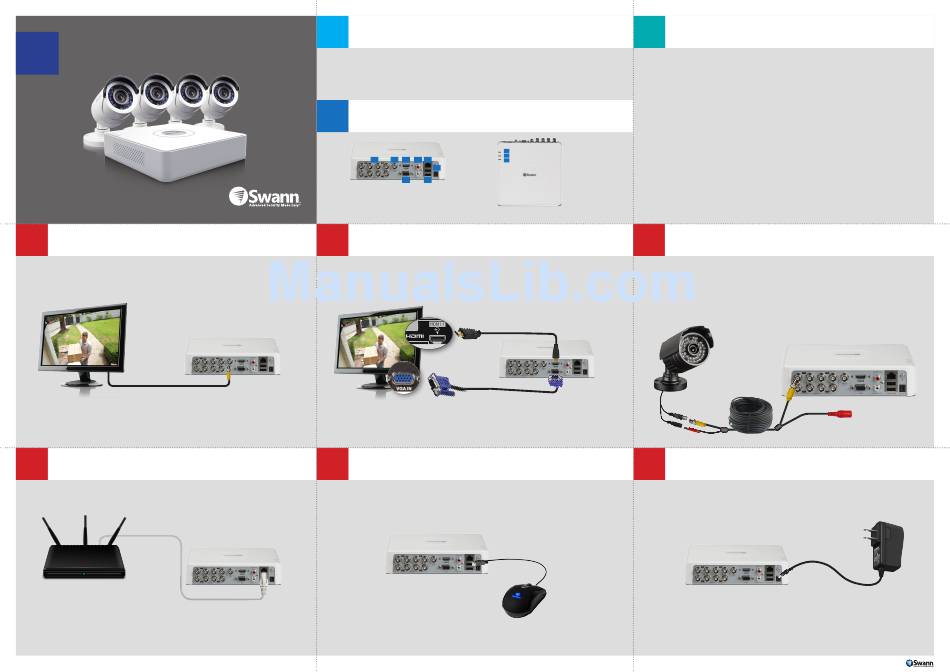

Swann DVRX-1550 Quick Start Manual

Hardware Quick Start Guide
4 / 8 CHANNEL DVR
EN
Welcome!
Lets get started.
1
Connect the DVR to your TV (RCA/Composite)
If you have an older analogue TV, connect the BNC to RCA video cable (supplied) to the video output
on the DVR, and connect the other end to a spare video input on the TV.
TV
BNC to RCA Cable
(!) If you are using the HDMI cable for connection, you can skip this step.
4
Connect to your network
Connect the Ethernet cable (supplied) to the LAN connection on the DVR, and then connect the
other end to a spare port on your router or internet device.
Ethernet
Cable
Router
(!) It's important that you do this, as this allows you to access the router from your smartphone or
tablet. It also allows the DVR to connect to the Internet to update its internal clock so the time it
shows on the video is always accurate.
A
Introduction
Congratulations on the purchase of your Swann DVR. This quick start guide will assist you on
getting your DVR up and running as soon as possible. We recommend that you connect everything
and give it a try before you do a permanent installation, to make sure nothing was damaged during
shipping. On the other side is a detailed connection map which illustrates the various connections
on the DVR.
B
Getting to know your DVR
1 2 3
4
1. Video Input 5.
2. Video Out 6.
3. HDMI 7.
4. VGA 8.
2
Connect the DVR to your HDTV/Monitor (HDMI/VGA)
The DVR can also connect to an HDTV or a Monitor using the HDMI port or the VGA port. For the HDTV,
connect the HDMI cable (supplied) to the HDMI output on the DVR, and connect the other end to a spare
HDMI input on the TV.
TV or Monitor
DVR
For a Monitor, connect a VGA cable (not supplied) to the VGA output on the DVR, and connect the other
end to the VGA input on the Monitor.
Hardware Quick Start Guide | Page 3
5
Connect the mouse
Connect the mouse (supplied) to a spare USB port on the DVR.
DVR
Hardware Quick Start Guide | Page 6
1. Power LED
1 2. LAN LED
2
3. HDD LED
5 6
3
8
7
Audio In/Out
Network
USB
Power
Hardware Quick Start Guide | Page 1
HDMI Cable
DVR
OR
VGA Cable
Hardware Quick Start Guide | Page 4
DVR Mouse
Hardware Quick Start Guide | Page 7
C
What does this mean?
Here are explanations for the various connections and lights on the DVR.
Video Inputs – This where you connected the included cameras.
TV Out – If you have an older analogue TV, connect this to an available video input.
HDMI – If you have a digital TV with HDMI input, connect this to an available input.
VGA – If you have a TV or monitor with VGA input, connect this to an available input.
Audio Input/Output – For connecting a microphone (to record sounds) and speakers.
LAN – Connect this to your home network so your DVR can connect to the Internet.
USB – Connect the mouse here, also able to connect a Flash Drive to backup recorded events.
Power – This is where you connect the power adapter.
Power LED – When the DVR has power, this light will turn on.
HDD LED – This will flash when the hard drive is working.
LAN LED – This will flash when there is network activity.
3
Connect your cameras
Included in the box are a set of video and power cables for each camera provided. You will see
a label on each end denoting which end is plugged into which connection. Connect the relevant
connection on each cable to the supplied cameras. The yellow connection is for video, the red
connection for power. Connect the yellow connection on the other end of the cable to each of the
video inputs on the DVR. Use the supplied power splitter to connect to the red connection and then
connect the power adapter to the power splitter.
Camera
Video and
Power cable
To Camera Power
adapter splitter
6
Connect the power adapter
Connect the power adapter (supplied) to the power input on the DVR. There will be a label on the
power adapter indicating that it is for the DVR and not the cameras.
DVR
All the connections have now been completed. You now ready to run through 'The Setup Wizard'
to configure your DVR.
Hardware Quick Start Guide | Page 2
DVR
Hardware Quick Start Guide | Page 5
Power adapter
Hardware Quick Start Guide | Page 8
QH1550H081113E © Swann 2013 |
